AX01 and MA01 Series Floating Board-to-Board Connector Has Added New Pin Counts and Height Variations

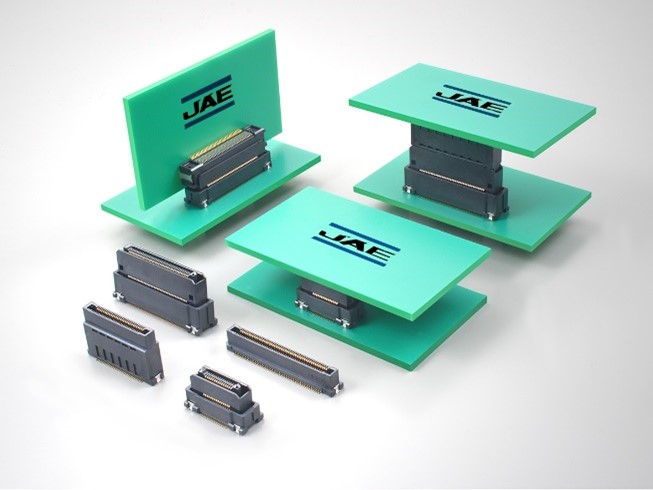

AX01 and MA01 Series Floating Board-to-Board Connector

March 29, 2022
JAE has released additional pin count and stacking height variations to the AX01 Series and MA01 Series of floating board-to-board connectors. Now available in 8 different pin counts (30-140 contacts) and 11 stacking heights (8-30 mm), each series offers a large line-up for industrial and automotive applications.

Sophisticated production lines using robots and automated machines to improve productivity, efficiency and quality continues on the rise. As the use of automation expands, requirements for floating board-to-board connectors increases. A connector integrated into rugged applications will also need to feature high vibration resistance and contact reliability. Another common requirement is the ability to support high speed transmission. This is driven by high bandwidth demand in applications related to ADAS, autonomous driving, IoT and cloud networking technologies.

In response to the market trend, in 2019 we launched the AX01 Series floating type board-to-board connector, with a two-point contact structure, to support automated assembly and high-speed transmission (8Gbps+). In 2021 we launched the MA01 Series connectors with automotive applications in mind. To meet the diverse demands over several markets we expanded our pin count and stacking height variations to our line-up offering a total of 88 combinations for each Series.

Both the AX01 and MA01 Series have a floating tolerance of ±0.5 mm in the X & Y directions, which helps absorb positional shifts and misalignments during automated mounting and assembly processes. Combining that with large mating guides to prevent misalignment, these connectors are ideal for robot driven assemblies. Conventional rigid board-to-board connectors have difficulty with mating tolerances when multiple board-to-board connectors are used to interface between the same set of boards. The AX01 and MA01 Series connectors feature a floating structure that can absorb positional misalignment during the mating process of these boards, which allows for use of multiple connectors on the same boards. In addition, MA01 Series connectors can operate within automotive operating temperatures of up to 125°C.

The two-point contact structure provides a highly reliable connection and will ensure uninterrupted continuity even if one contact point is obstructed by a foreign contaminant. The AX01 and MA01 connector series uses the smooth rolled-surface for the contact points, which reduces the high insertion and removal forces generally found in conventional two-point contact connectors. Lastly, the AX01 and MA01 series achieves high speed transmission speeds exceeding 8 Gbps and is able to support 10GBASE-KR (*1) and PCIe Gen3 (*2) transmission.

This product will be exhibited at electronica China 2022 international trade fair for electronic components, systems, applications and solutions to be held from May 6.

*1) 10GBASE-KR: 10 Gigabit Ethernet transmission; one of the communication standards for building computer networks specified by IEEE specifying communication between printed circuit boards within equipment.
*2) PCIe Gen3 (PCIExpress 3.0): One of the serial bus standards specified by PCI-SIG and compatible with 8 Gbps transmission.Speed Float is a brand logo for our floating board-to-board connectors for high-speed transmission. We provide high-performance and highly reliable products for an increasingly "high-speed society".

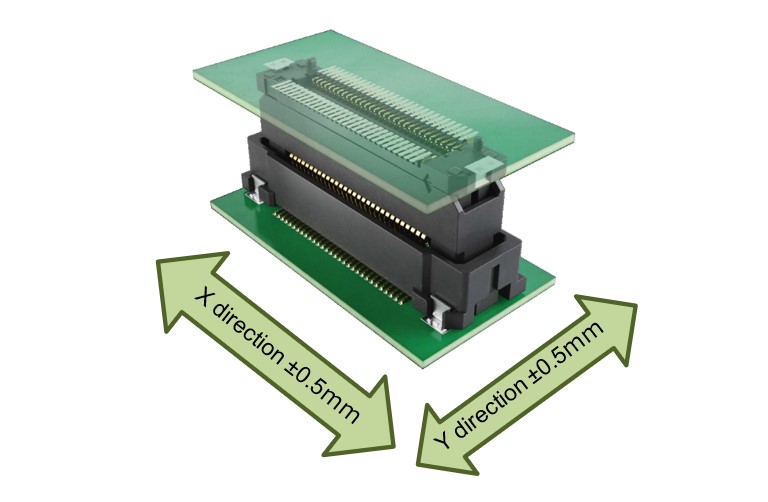

Floating Tolerance

Floating Amount

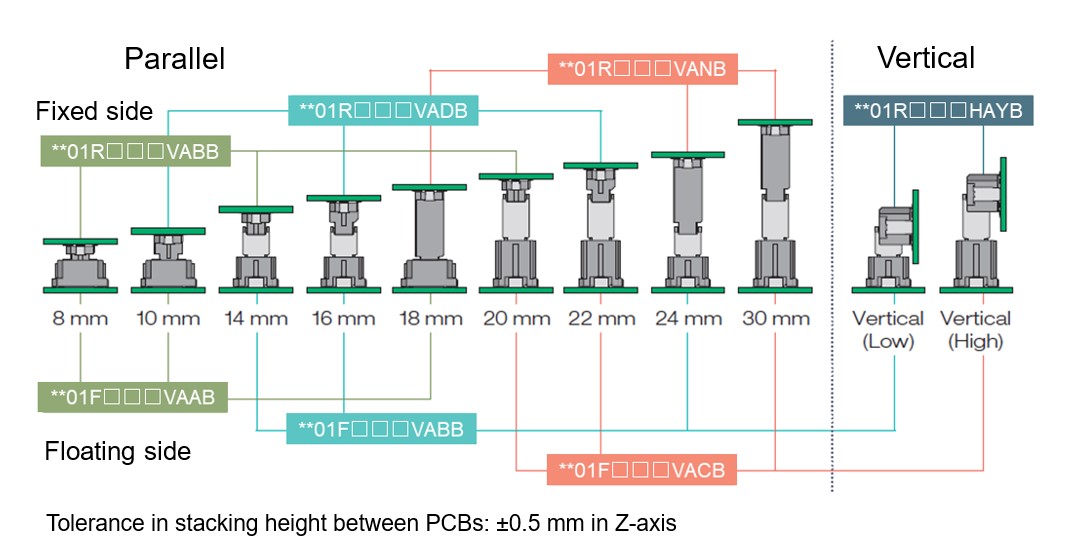

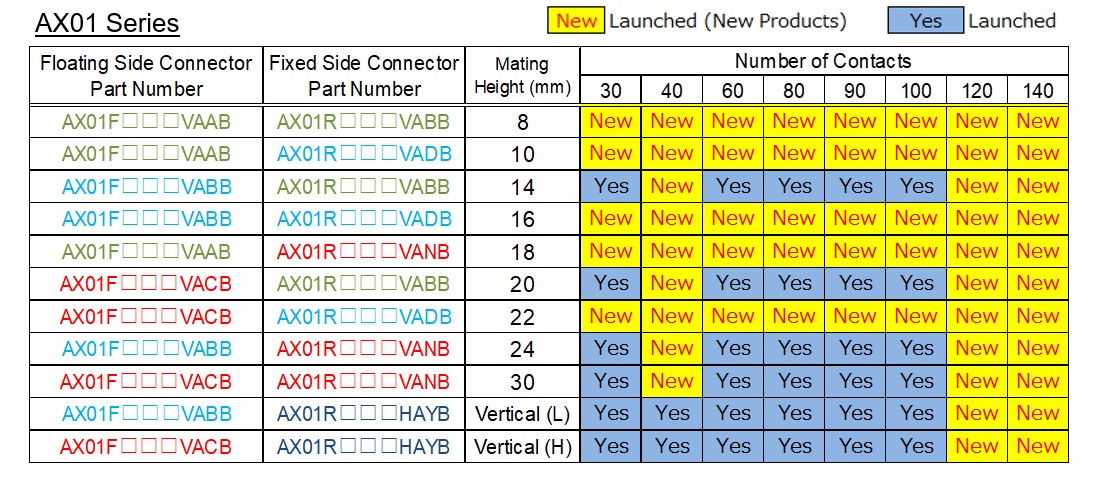

AX01 and MA01 Series Variations

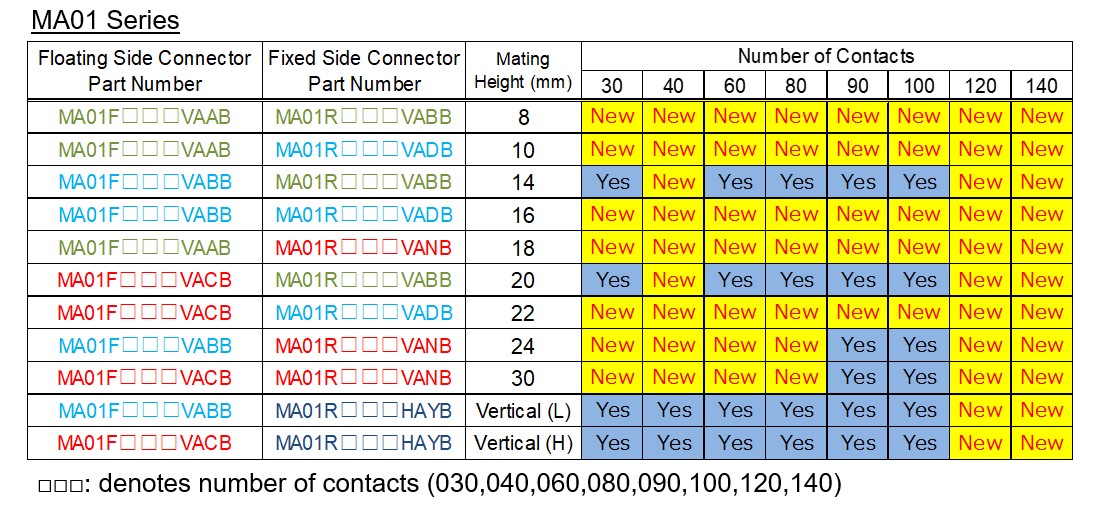

MA01 Series Variations


  • Floating tolerance: ±0.5 mm in both X and Y directions
  • Stacking height tolerance between boards: ±0.5 mm in Z-axis direction
  • Two-point contact structure ensures high contact reliability
  • Low insertion and removal forces achieved by rolled-surface contact point
  • Operating Temperature Range:
    AX01 Series: -40°C to +105°C
    MA01 Series: -40°C to +125°C
  • 8 Gbps+ high-speed transmission (10GBASE-KR and PCIe Gen3 equivalent)
  • Excellent mating process with large guides for automatic assembly and mating (mating guide: ±1.0 mm)
  • Supports automatic vacuum pick up for mounting
  • Allows for multiple connectors to interface between a single set of boards
  • Keyed to prevent mis-mating
  • Clear visibility of solder joints for easy visual inspection

Applicable Market

AX01 Series: Factory automation equipment, semiconductor manufacturing equipment, office machines, communication equipment, measuring equipment, broadcasting equipment, gaming and arcade machines, and other various applications.

MA01 Series: Automotive devices (ADAS-ECU, Central gateway, etc.), factory automation equipment, semiconductor manufacturing equipment, office machines, communication equipment, measuring equipment, broadcasting equipment and other various applications.

General Specifications

Pitch 0.635 mm pitch
Number of Contacts 30 ~ 140 positions
Stacking Height 8 ~ 30mm
Floating Tolerance X direction: ±0.5 mm, Y direction: ±0.5 mm
Operating Temperature Range AX01 Series: -40℃~+105℃
MA01 Series: -40℃~+125℃
(including conduction temperature rise)
Rated Current 0.5A
Rated Voltage AC50V rms.


Floating Connector

Component Material / Finishes
Fixed Insulator LCP
Floating Insulator LCP
Contact Copper alloy / Au plating
Hold-down Copper alloy / Sn plating
Cap Stainless steel

Fixed Connector

Component Material / Finishes
Insulator LCP
Contact Copper alloy / Au plating
Hold-down Copper alloy / Sn plating
Cap Stainless steel

AX01 Series (High-speed Transmission, Floating Board-to-board Connector)
(For more details) >

AX01 Series image

MA01 Series (Automotive Grade, High-speed Transmission, Floating Board-to-board Connector)
(For more details) >

MA01 Series image

Information and details given here are as of the date of publication.
Please note that the details may be changed.
