Both Screw Mating and One-touch Locking Feasible Waterproof Circular Connectors based on MIL-DTL-5015"JL10 Series" Has Been Developed
December 24, 2014
MIL-DTL-5015 circular connectors are widely used for industrial equipments such as working machines and robots.
Owing to the screws prescribed in MIL specification, there is a merit that their compatible mating connectors are available anywhere in the world.
Recently there is a lot of demand for products with one-touch lock mating method which has an easier operability, and also a higher resistance to loosening under vibration environments, compared to the screw mating method.
To meet these demands, JAE has developed the JL10 Series connector, which is compatible with the one-touch lock method in addition to the screw mating method based on MIL specification.

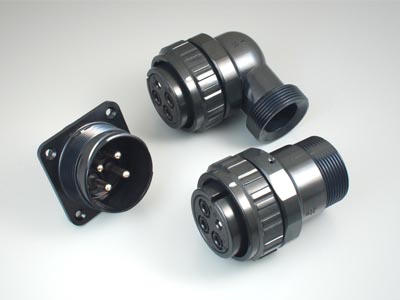

The JL10 Series connector can be mated with the screw mating type and the one-touch locking type plug connectors with a screw thread and a triple-thread groove for one-touch locking on the receptacle connector.
The outer dimensions and the mounting hole dimensions of the receptacle connector are the same as MIL specification products so switching from the conventional products can be done easily.
Therefore, without any alteration in the design of the main device the interface can be switched to a one-touch lock compatible type just by replacing the connectors.
Features
- Compatible with both one-touch lock mating and MIL specification screw mating.
- With mating and replacement compatibility with MIL specification connector.
- The receptacle connector is individually waterproof and IP67 is realized by the waterproof structure of the mated connector.
- UL recognized and TÜV approved products.
- One-touch lock mating with easy operability and good vibration resistance.
- Low-profile compact design and direction of the cable leader of angle type can be set in arbitrary 8 directions in 45 degrees increments.
- Possible to check completion of the one-touch lock mating by locking sound, click feeling, and confirmation of the guide mark by sight.
Applicable market
Industrial machineries, robots, servo motors, semiconductor-fabrication equipments, communication devices, and other industrial machinery applications.General specifications
| Items | Specification and performance | |
|---|---|---|
| Array |  18-10 (#12 size contact X 4 pos.) |
22-22 (#8 size contact X 4 pos.) |
| Rated Current | 23A / position max. | 46A / position max. 57A / position max. |
| Rated Voltage | 500VAC (pollution level: 2 / over-voltage category II) 250VAC (pollution level: 3 / over-voltage category III) |
500VAC (pollution level: 2 / over-voltage category II) 250VAC (pollution level: 3 / over-voltage category III) |
| Dielectric Withstanding Voltage |
2000VAC (per minute) | 2000VAC (per minute) |
| Insulation Resistance | 1000M ohms min. (DC500V energized) | 1000M ohms min. (DC500V energized) |
| Waterproof Performance | IP67 | IP67 |
| Termination | Soldering connection | Soldering connection |
| Durability | 500 mating cycles | 500 mating cycles |
Materials and Finishes
| Product | Components | Material / Finish |
|---|---|---|
| Receptacle | Contact | Copper alloy / silver plating |
| Earth Pin | Copper alloy / nickel plating | |
| Front Insulator | Silicone rubber | |
| Rear Insulator | Synthetic resin | |
| Shell | Aluminum alloy / zinc plating | |
| Retaining Ring | Copper alloy / zinc plating | |
| Plug | Endbell | Aluminum alloy / zinc plating |
| Set Screw | Steel / zinc plating | |
| O Ring | Synthetic rubber | |
| Retaining Ring | Copper alloy / zinc plating | |
| Wave Spring | Stainless Steel | |
| C Type Ring | Stainless Steel | |
| Contact | Copper alloy / silver plating | |
| Front Insulator | Synthetic resin | |
| Rear Insulator | Synthetic resin | |
| Assembly Nut | Aluminum alloy / zinc plating | |
| Coupling Nut | Aluminum alloy / zinc plating | |
| Barrel | Aluminum alloy / zinc plating |
Information and details given here are as of the date of publication. Please note that the details may be changed.
