Product Lineup

AN01, AN02 Series

■White paper  :  For Wi-Fi 6E

Click here to download

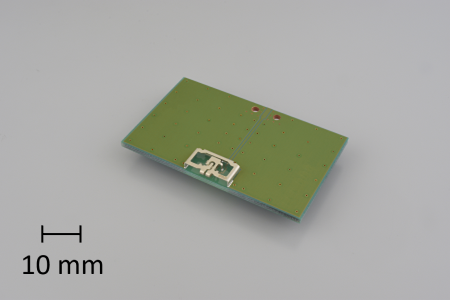

2.4 GHz (*)

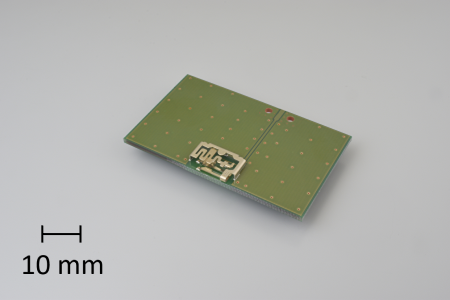

2.4 & 5 GHz (*)

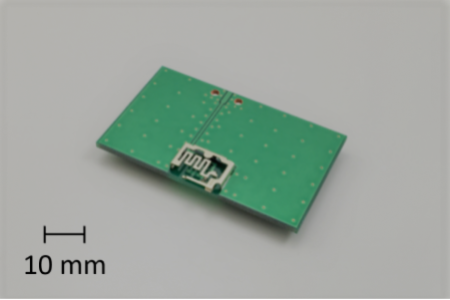

2.4, 5 & 6 GHz (*)

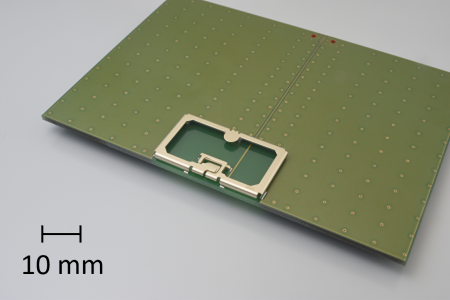

920 MHz (*)

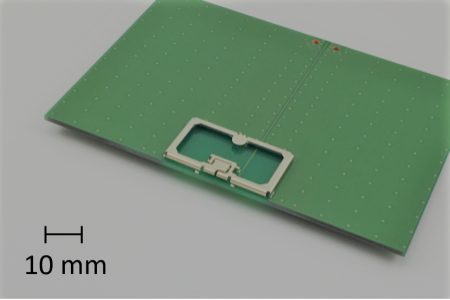

860 MHz (*)

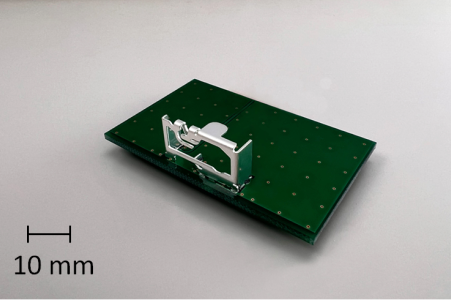

[NEW] 2.4, 4.6, 5 & 6 GHz (*)

* Mounting image on a printed circuit board

AN01, AN02 series antennas are available in automotive and general-purpose grades as standard products for major unlicensed frequency bands.

Antenna Products for Private LTE / for Local 5G

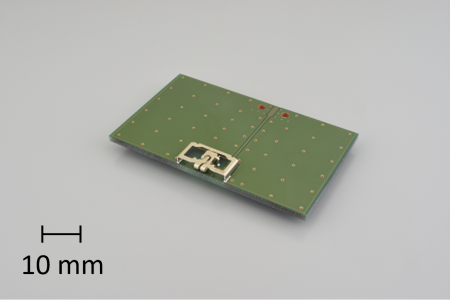

1.9 GHz (*)

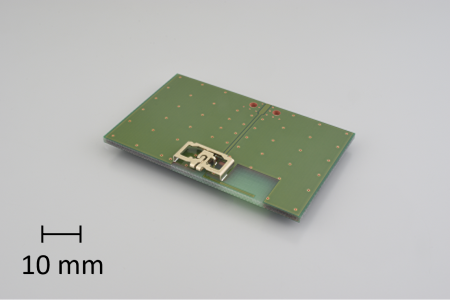

3.3 to 3.8 GHz (*)


4.6 to 4.9 GHz (*)

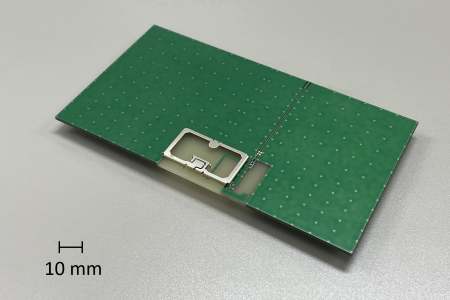

698 to 960 MHz / 1.71 to 2.69 GHz (*)

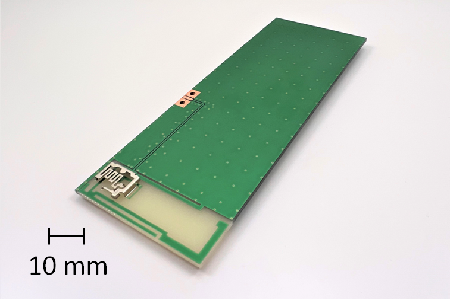

[NEW] 698 to 960MHz / 1.71 to 2.17 GHz (*)

* Mounting image on a printed circuit board

Using the same "AN01 series" antennas, the following frequency bands can be supported by adding a frequency adjustment pattern on the board where the antenna is mounted.
- 1.9 GHz and 3.3 to 3.8 GHz bands for private LTE (Long Term Evolution)
- 4.6 to 4.9 GHz bands for local 5G (5th generation mobile communication system)
- 698 to 960 MHz, 1.71 to 2.17 GHz and 1.71 to 2.69 GHz bands for LTE / 5G

Features

■ Compact and high performance
    Industry-leading high efficiency despite its size of about 1/10 of the wavelength.
■ Omnidirectional radiation
    Creating radio coverage without dead spots.
■ Assembly cost reduction
    Automatic pick and place mounting compatible surface mount device (SMD).
■ Design flexibility
    Minimal influence from nearby metallic objects and dielectric materials, and fewer restrictions on component placement, ensuring a high degree of design flexibility.


[ Omnidirectional radiation ]
  Image that radiates radio waves in all directions without dead spots.


[ Design flexibility ]

 Image of components mounted in the vicinity of the antenna, with fewer restrictions on component placement.

Lineup

■ Automotive Grade Products

AN01 Series
Part Number Product Image Frequency Range - Datasheet
- Application note
AN012400M00R3200 2.4 to 2.5 GHz
AN01DL25M00R3200 2.4 to 2.5 GHz
5.15 to 5.85 GHz
AN01ML27M00R2400 2.4 to 2.5 GHz
5.15 to 5.85 GHz
5.925 to 7.125 GHz

AN02 Series
Part Number Product Image Frequency Range - Datasheet
- Application note
NEW
AN02ML27M00R400
2.4 to 2.5 GHz
4.6 to 4.9 GHz
5.15 to 5.85 GHz
5.925 to 7.125 GHz


■ General Purpose Products

AN01 Series
Part Number Product Image Frequency Range - Datasheet
- Application note
AN012400C00R3200 2.4 to 2.5 GHz
AN01DL25C00R3200 2.4 to 2.5 GHz
5.15 to 5.85 GHz
AN01ML27C00R2400 2.4 to 2.5 GHz
5.15 to 5.85 GHz
5.925 to 7.125 GHz
AN010920C00R1700 902 to 928 MHz
AN010860C00R1700 863 to 870 MHz

AN02 Series
Part Number Product Image Frequency Range - Datasheet
- Application note
NEW
AN02ML27C00R400
2.4 to 2.5 GHz
4.6 to 4.9 GHz
5.15 to 5.85 GHz
5.925 to 7.125 GHz

For Private LTE / for Local 5G
Part Number Product Image Frequency Range - Datasheet
- Application note
AN012400C00R3200 1.88 to 1.92 GHz
AN012400C00R3200 3.3 to 3.8 GHz
AN01DL25C00R3200 4.6 to 4.9 GHz
NEW
AN01ML27C00R2400
 698 to 960 MHz
1.71 to 2.17 GHz
AN010860C00R1700 698 to 960 MHz
1.71 to 2.69 GHz
