Directional Modules
Manufactured in-house using our sensor technology we have created directional modules for easy integration to MWD, LWD and Wireline tools. Each module is fully calibrated by JAE to ensure reliable measurements down hole. MCM technology is used extensively throughout our directional modules to ensure long term reliability in harsh environments.
JAE has developed the SMART DM range to provide a high accuracy calibrated position information downhole through industry standard digital output protocols. The compact design allows for easy integration to both existing and new tool designs where space is always limited.
Analog DM
- Quartz accelerometers
- Integrated magnetometer
- High reliability MCM electronics
- Operating temperature to 200 °C
- Quartz accelerometers
- Integrated magnetometer
- High reliability MCM electronics
- Operating temperature to 200 °C

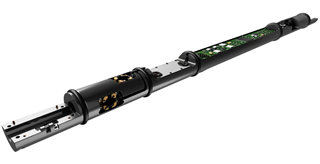

SMART DM
- Quartz accelerometers
- Integrated magnetometer
- High reliability MCM electronics
- Operating temperature to 200 °C
- Standard communication protocols
- Quartz accelerometers
- Integrated magnetometer
- High reliability MCM electronics
- Operating temperature to 200 °C
- Standard communication protocols
