USB Type-C Connector "DX07 Slim Plug" Has Been Developed

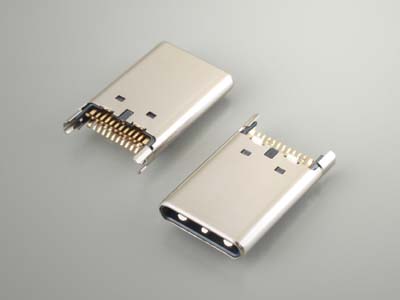

USB Type-C Connector "DX07 Slim Plug"

JAE has released a new slim plug to add to the "DX07 Series" connector lineup, which is compatible with the next-generation USB Type-C specification.


With its compact design and high-density terminals (compared to other standard interfaces), the USB Type-C connector is ideal for mobile devices. It is capable of 10 Gbps high-speed communication, and a maximum of 5A current for faster charging. The reversible plug orientation allows for easy insertion.


Highly involved in the development of the USB Type-C specification, JAE has met the requirements for superior EMI/EMC characteristics, mechanical strength, and durable lock structure using our expertise in high-precision manufacturing technology and high-speed communication design for compact connectors.


This time, to improve customers' usability the slim plug has been minimized 1.7mm in the longitudinal direction and 1.5mm in the width direction from the size of the standard plug released in June, and the hood design flexibility has further increased.

Features of the USB Type-C DX07 Slim Plug Connector

  • Smaller by 1.7mm in the longitudinal direction and 1.5mm in the width direction compared to the already released standard plug.
  • Compatible with Universal Serial Bus Type-C Specification Release 1.1
  • Compatible with 10Gbps SuperSpeed communication (USB 3.1 Gen 2)
  • Supports 5A max. power supply (Compatible with USB Power Delivery)
  • Reversible plug makes it possible to insert both ways
  • Superior EMI/EMC characteristics
  • Design for high mechanical strength of both receptacle and plug
  • Lock structure with high durability

USB Type-C Connector DX07 Series

Receptacle ‹Mounting terminal, 2 row SMT Type›

Part Number,Connector Type,Applicable Specifications,1,DX07S024JJ2,On-board,USB3.1 Gen2,2,DX07S024JJ3,USB2.0,3,DX07B024JJ1,Mid-mount,USB3.1 Gen2,4,DX07B024JJ2,USB2.0

Part Number,Connector Type,Applicable Specifications,5,DX07P024MJ1,(Standard plug),With protection cap,USB2.0/USB3.1 Gen2,6,DX07P024AJ1,With protection cap,USB2.0/USB3.1 Gen2


Applicable Markets

Smartphones, tablets, PCs, televisions, small LCD displays, digital still cameras, digital video cameras, and other compact hand-held devices.


(Same for both the receptacle and plug)
No. of Contacts 24 pos.
Rated Current 5A max.
Rated Voltage AC20V r.m.s.
Contact Resistance 40m ohms max. (initial)
Dielectric Withstanding Voltage AC 100 V r.m.s. for 1minuite
Insulation Resistance 100 M ohms min. (initial)
Operating Temperature Range -30Deg. C ~ +80Deg. C
Mating Cycles 10,000 times

DX07 Series (PLUG) (For more details) >

DX07 Series image


Information and details given here are as of the date of publication. Please note that the details may be changed.
