One-touch Lock and Screw Mating Waterproof Circular Connectors JL10 Series Line-up Has Been Expanded

JL10 series connectors variations supplied by JAE electronics

March 2, 2017
JAE has recently added shell size 28 variations to our JL10 Series line-up. With this newly added shell size, the innovative JL10 convenience can be used in even more machine tool and industrial applications.

Background

JAE has developed two array configurations in the shell size 28 form factor. These new configurations are popular for industrial equipment and other MIL-DTL-5015, for which the JL10 is compatible.

With these additions, the JL10 Series now covers the most popular shell sizes (18, 20, 22, 24, 28, and 32), giving more customers even greater flexibility in selecting the right connector for their needs.

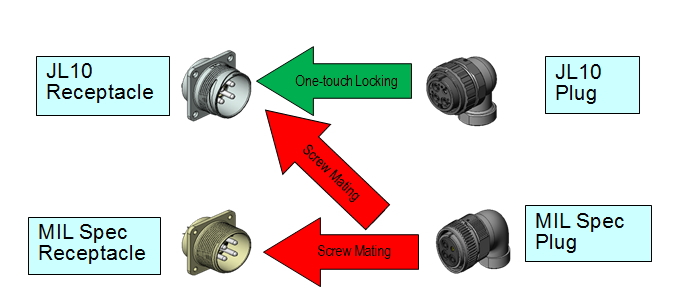

The JL10 receptacle has a hybrid mating structure that allows for quick one-touch bayonet-style locking with new JL10 plugs, in addition to screw-mating for backward compatibility with standard MIL specification plugs. With the JL10 Series you can upgrade without sacrificing backward compatibility.

The outer dimensions and mounting holes of the JL10 receptacle connector are the same as the dimensions in the MIL specifications, making upgrading to the JL10's faster one-touch locking interface simply a matter of replacing the connector, without any other changes needed to the equipment design. JL10 series connectors Mating image

Features

Allows both quick one-touch locking for JL10 mated pair, and screw-mating compatibility with MIL-DTL-5015 specification plugs
(JAE plug connectors compatible with the JL10 receptacle: N/MS, JL04V, JA0*A Series)
Mating and mounting compatible with MIL-DTL-5015 specification receptacle
IP67 waterproof when mated
UL and TÜV approval
One-touch lock mating for quick mating and good vibration resistance
Low-profile right angle plug design, with 8 options for cable direction
One-touch locking is assured with tactile and audible click, and visible guide mark

Applicable Markets

Machine tools, robots, semiconductor fabrication equipment, communication devices, and other industrial machinery applications.

General Specification [New Products]

Arrangement Code	28-11		28-21
Contact Arrangement
Contact Composition	#12 x 4 pos.	#16 x 18 pos.	#16 x 37 pos.
Rated Current	23A / Contact	13A / Contact	13A / Contact
Rated Voltage	250VAC	100VAC	500VAC
Over-voltage Category	Ⅲ		-
Pollution Level	2 (3 for mating area)		-
Dielectric Withstanding Voltage	2000VAC (for 1 minute)		1000VAC (for 1 minute)
Insulation Resistance	1000M ohms min. (DC500V applied)		1000M ohms min. (DC500V applied)
Waterproof Performance	IP67		IP67
Termination	Soldering		Soldering
Durability	500 mating cycles		500 mating cycles

Note) For 28 shell size products 28-11 and 28-21 socket type is developed for receptacle side.

General Specification [Existing Products]

Arrangement Code	18-10		20-4		20-18
Contact Arrangement
Contact Composition	#12 x 4 pos.		#12 x 4 pos.		#12 x 3 pos.	#16 x 6 pos.
Rated Current	23A / Contact		23A / Contact		23A / Contact	13A / Contact
Rated Voltage	250VAC	500VAC	250VAC	500VAC	250VAC	100VAC
Over-voltage Category	Ⅲ	Ⅱ	Ⅲ	Ⅱ	Ⅱ
Pollution Level	3	2	3	2	2
Dielectric Withstanding Voltage	2000VAC (for 1 minute)		2000VAC (for 1 minute)		2000VAC (for 1 minute)
Insulation Resistance	1000M ohms min. (DC500V applied)		1000M ohms min. (DC500V applied)		1000M ohms min. (DC500V applied)
Waterproof Performance	IP67		IP67		IP67
Termination	Receptacle : Soldering / Crimp Pulug : Soldering		Soldering		Soldering
Durability	500 mating cycles		500 mating cycles		500 mating cycles

Arrangement Code	20-29	22-14	22-22
Contact Arrangement
Contact Composition	#16 x 17 pos.	#16 x 19 pos.	#8 x 4 pos.
Rated Current	13A / Contact	13A / Contact	46A, 57A ^(Note1)/ Contact
Rated Voltage	500VAC	500VAC	250VAC	100VAC
Over-voltage Category	-	-	Ⅲ	Ⅱ
Pollution Level	-	-	3	2
Dielectric Withstanding Voltage	2000VAC (for 1 minute)	2000VAC (for 1 minute)	2000VAC (for 1 minute)
Insulation Resistance	1000M ohms min. (DC500V applied)	1000M ohms min. (DC500V applied)	1000M ohms min. (DC500V applied)
Waterproof Performance	IP67	IP67	IP67
Termination	Soldering	Soldering	Receptacle: Soldering / Crimp Plug: Soldering
Durability	500 mating cycles	500 mating cycles	500 mating cycles

^{(Note 1)} When using 8 mm² or 10 mm² for 22-22 arrangement (Soldering type).

Arrangement Code	24-11		32-17
Contact Arrangement
Contact Composition	#8 x 3 pos.	#12 x 6 pos.	#4 x 4 pos.
Rated Current	46A / Contact	23A / Contact	80A / Contact
Rated Voltage	250VAC	500VAC	250VAC	500VAC
Over-voltage Category	Ⅲ	Ⅱ	Ⅲ	Ⅱ
Pollution Level	3	2	3	2
Dielectric Withstanding Voltage	2000VAC (for 1 minute)		2000VAC (for 1 minute)
Insulation Resistance	1000M ohms min. (DC500V applied)		1000M ohms min. (DC500V applied)
Waterproof Performance	IP67		IP67
Termination	Soldering		Receptacle : Crimp Plug : Soldering
Durability	500 mating cycles		500 mating cycles

* Pin / Socket type is developed for 20-29, 22-14, 22-22 receptacle side.
* Pin type is developed for 18-10, 20-18, 20-4, 24-11, 32-17 receptacle side.

Materials and Finishes

	Component	Material / Finish
Receptacle	Contact	Copper alloy / silver plating
	Ground Pin	Copper alloy / nickel plating
	Front Insulator	Synthetic rubber
	Rear Insulator	Synthetic resin
	Shell	Aluminum alloy / zinc plating
	Retaining Ring	Copper alloy / zinc plating
Plug	Endbell	Aluminum alloy / zinc plating
	Set Screw	Steel / zinc plating
	O Ring	Synthetic rubber
	Retaining Ring	Copper alloy / zinc plating
	Wave Spring	Stainless Steel
	Type C Ring	Stainless Steel
	Contact	Copper alloy / silver plating
	Front Insulator	Synthetic resin
	Rear Insulator	Synthetic resin
	Assembly Nut	Aluminum alloy / zinc plating
	Coupling Nut	Aluminum alloy / zinc plating
	Barrel	Aluminum alloy / zinc plating

JL10 Series (One-touch/ Screw Compatible Waterproof Connector) (For more details) >

Information and details given here are as of the date of publication. Please note that the details may be changed.
