Durable Structure WP27D Series Board-to-board Connector With Power Terminals Has Been Developed


Durable Structure WP27D Series Board-to-board Connector With Power Terminals Has Been Developedsupplied by JAE electronics

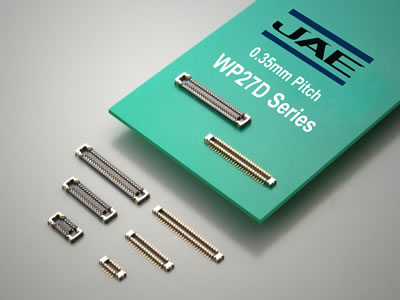

JAE has developed a 0.35mm pitch, 1.9mm width, 0.7mm mating height stacking type board-to-board connector, the "WP27D Series." It incorporates power supply terminals and a robust structure that prevents damage during engagement.



::Background

Power consumption of small portable devices like smartphones, wearable devices and tablets is increasing due to their multi-functional capability and high performance. This requires connections with a larger current capacity.



The WP27D Series equips special hold-downs that can be used as high-current power supply terminals and adopts a structure that prevents insulator breakage by adding protection to the mating surface with these metal hold-downs. Accordingly, improvement of durability against damage during mating is achieved.



The WP27D Series saves board space and enhances design flexibility by installing the terminals for power supply and signals separately.



Furthermore, the WP27D Series is both drop impact and vibration resistant using a 2-point contact structure with proven results. It also improves workability for customers by providing a click feeling to their fingers when mated.



:: Features

  • 2 rows, 0.7mm stacking height, 1.9mm connector width
  • Power supply terminals compatible with 3.0A (also used as hold-downs)
  • 2-point contact terminal design with high durability against twisting stress, and high extraction force.
  • Hold-down structure adds protection to the mating surface to prevent damage to the insulator. (Armored)
  • Improved workability for customers with a clear click feeling.
  • Contact structure ensures high wear-resistance and high contact reliability.
  • Lead-free. (Nickel barrier on contact prevents solder wicking)




:: Applicable Markets

  • Smartphones, wearable devices, tablets, PCs, digital still cameras, digital video cameras, and other compact hand-held devices.


:: General Specifications

No. of Contacts 10, 30, 34, 38, 40, 50
Operating Temperature -40 deg. C to +85 deg. C
Contact Resistance (Signal Terminal) 70m ohms max. (initial)
(Power Terminal) 20m ohms max. (initial)
Durability 30 mating cycles
Rated Current (Signal Terminal) AC, DC 0.3A per pos.
(Power terminal) AC, DC 3.0A per pos.
Rated Voltage AC, DC 50V
Insulation Resistance 100M ohms min. (initial)
Dielectric Withstanding Voltage AC250Vr.m.s for 1 minute
Total insertion force 1.5 x (n+4) N max. (n: No. of pos.)
Total extraction force 0.15 x (n) N min. (n: No. of pos.)





:: Materials and Finishes

Component Material / Finish
Contact
(Plug / Receptacle)
Copper Alloy / Au over Ni plating
Insulator Heat-resistant Resin
Hold-down
(Plug / Receptacle)
Copper Alloy / Au over Ni plating


Information and details given here are as of the date of publication. Please note that the details may be changed.
