Superior High-frequency Performance Covering Up To 65GHz "CP03 Series"SMPM Coaxial Connector Has Been Developed

JAE has developed the new "CP03 Series" connector, a MIL-STD-348A standard compliant SMPM coaxial connector that features superior high-frequency performance covering the frequency band up to 65GHz.

Along with the increasing volume of communication network data due to the growth in mobile broadband and internet service, the transmission speed of communication devices is shifting from the now mainstream 10Gbps to 40Gbps and 100Gbps. There is also growing demand for high-speed signal compatible connectors for the electrical signal interface.

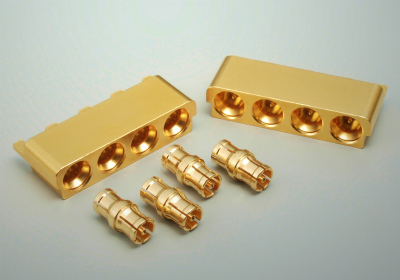

The CP03 Series from JAE answers these needs. The CP03 Series connector is an end-launch type (mounted on the edge of the board) 4-row plug receptacle with jack adapters for connection, and there are plans to later expand the connector variety to also include a harness type.

*SMPM ---- a standard for coaxial connectors stated in the MIL standard.

:: Features

MIL-STD-348A compliant, ultra compact coaxial connector.
Compatible with the high-frequency band up to 65GHz.
Floating connection between boards is made possible by 3-part mating configuration consisting of
a pair of plug receptacles and jack adapters.
Push-on lock method for easy mating and unmating.

:: Applicable market

Optical communication devices, measuring devices, wireless devices, high-frequency modules, etc.
