JAE Announces Launch of New Connector Line: The MX80 Series of Compact Waterproof Automotive In-line Connectors

The MX80 Series of Compact Waterproof Automotive In-line Connectors

Japan Aviation Electronics (JAE) is proud to announce the launch of a brand new set of connectors, the MX80 Series of compact waterproof in-line connectors for automotive applications.

Overview


As the need for high performance automobiles increases, the number of built-in electronic components increases as well. This leads to limited mounting and wiring space and the demand for smaller connectors becomes ever more evident.
To cater to these needs, we have developed and launched the MX80 Series small waterproof in-line connectors.
MX80 Series connectors support a variety of vehicle applications such as side view mirrors, actuating motor functions, indicator lights, blind spot monitors, etc. They are waterproof and possess a small-form factor for use in internal or external vehicle environments.
The MX80 Series of compact waterproof automotive connectors are IP67 compliant and follows automotive standard USCAR-2. Both MX80 pin and socket housings provide a Terminal Position Assurance (TPA) mechanism that enables the detection of incomplete terminal insertion. TPA’s prevent error during assembly and provide mating confirmation with a clear audible click and tactile feedback that contribute to connector reliability and ease of use.
JAE commits to expand the MX80 Series product lineup by adding additional pin count variations and varying key types to avoid incorrect mating when multiple connectors are in use at the same time.

In addition to the MX80 Series of compact waterproof automotive connectors, JAE also offers the MX19 Series and MX44 Series connectors that provide suitable solutions for related applications.

USCAR:United States Council for Automotive Research

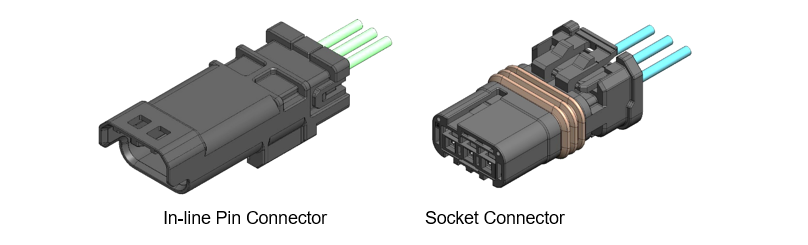

Connector Appearance

MX80 Connector Appearance

Major Features

  • ISO/JASO standard tab size 0.64 mm adopted
  • Terminal Position Assurance on pin and socket housing
  • Follows USCAR-2
  • IP67 waterproof rating
  • Standard Pin Contact can be connected by setting terminal pitch 2.54 mm

General Specifications

 Number of Contacts

 3 positions

 Contact Pitch

 2.54mm

 Operating Temperature Range

 -40°C~+125°C

 Applicable Wire

 0.3~0.5mm2
 (Example cable types: FLRY-A, FLRY-B, AESSX, etc.)

 Rated Current

 3.7A, when 0.35 mm2 wire is used
 (Ambient temperature: 105°C)
 4.5A, when 0.5 mm2wire is used
 (Ambient temperature: 105°C)

 Dielectric Withstanding Voltage

 AC500V (1 minute)

Current value is different for each operating temperature. Please contact us for details.

Applicable Market Segments

Automotive applications such as side view mirrors, number-plate light, and other applications requiring water-resistance.

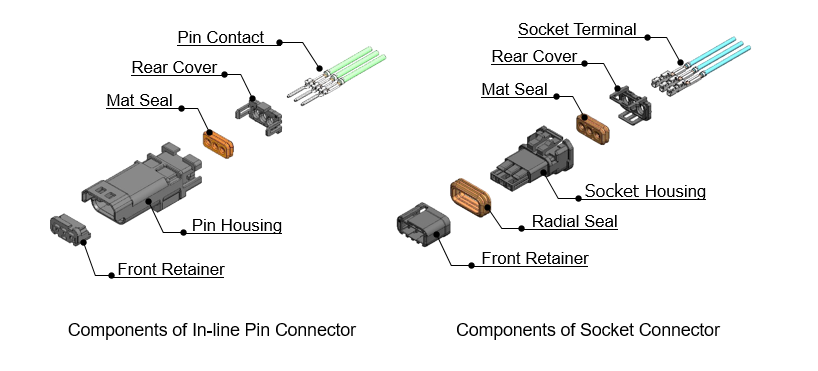

Materials / Finishes

MX80 Materials / Finishes

In-line Pin Connector

 Component

 Material

 Pin Housing  PBT-GF10
 Mat Seal  Silicone Rubber
 Rear Cover  PBT-GF10
 Front Retainer  PBT-GF10

Pin Contact

 Component

 Material / Finish

 Pin Contact  Copper Alloy / Tin Plating

Socket Connector

 Component

 Material

 Socket Housing  PBT-GF10
 Radial Seal  Silicone Rubber
 Mat Seal  Silicone Rubber
 Rear Cover  PBT-GF10
 Front Retainer  PBT-GF10

Socket Contact

 Component

 Material / Finish

 Socket Contact  Copper Alloy / Tin Plating

Lineup and major specifications of small waterproof automotive connectors

  MX80 Series
[New]
MX19 Series MX44 Series
MX80 Series
MX19 Series
MX44 Series
In-line type In-line type Board to Cable type
 Number of Contacts  3 positions  2, and 4 positions  2, 4, and 6 positions
 Operating
  Temperature Range
 -40°C~+125°C  -40°C~+105°C
(105°C: Ambient temperature +
temperature rise due to conduction)
 -40°C~+125°C
(125°C: Ambient temperature +
temperature rise due to conduction)
 Tab Size  0.64mm  1.0mm  0.64mm
 Contact Pitch  2.54mm  2.5mm  3.5mm
 Applicable Wire  0.3~0.5mm2  0.3~0.5mm2  0.3~0.5mm2


Information and details given here are as of the date of publication. Please note that the details may be changed.
