JAE Announces Launch of USB4™ 40Gbps Certified Connector

USB4™ USB Type-C 40Gbps ConnectorDX07

December 18, 2020
JAE has launched its first USB Type-C® receptacle connector certified for use in next generation USB4 40Gbps devices. It will be available as part of the DX07 Series that already features an expansive line-up of USB Type-C compatible receptacle and plug connectors, as well as cable harnesses.

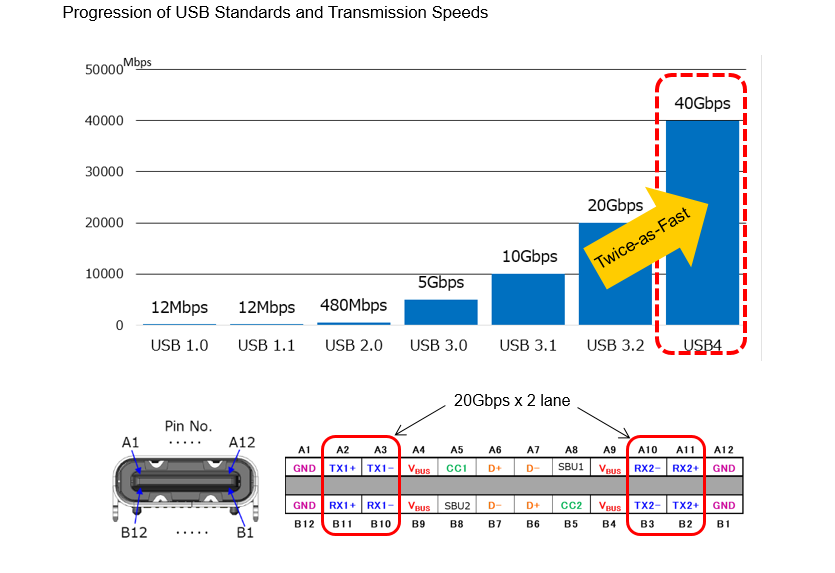

The new USB4 standard, released in September 2019, can achieve data transmission speeds up to 40Gbps, which is twice as fast as the previous USB 3.2 standard. The new standard will be adopted in various applications that require the fastest possible transmission speeds including PCs, docking stations, monitors, high capacity SSDs, game consoles and VR headsets.

This product satisfies the strict USB4 specifications for signal integrity with an optimized internal structure carefully designed using advanced simulation software. The use of the popular USB Type-C interface also ensures backwards compatibility with existing devices and accessories. We will continuously work to expand product variations compatible with USB4 to enrich our product lineup.

As a connector manufacturer who has been involved in the development of the USB Type-C connector standard from the outset, JAE will continue to respond to customer needs and work to improve the ease of adoption by offering many variations for different device designs and PCB mounting requirements.

[DX07 Series Special Contents]

1. USB4™, USB Type-C®, USB-C® are trademarks of USB Implementers Forum.
2. USB4 40Gbps is marketing name for USB4 Gen 3
3. SSD: Solid State Drive

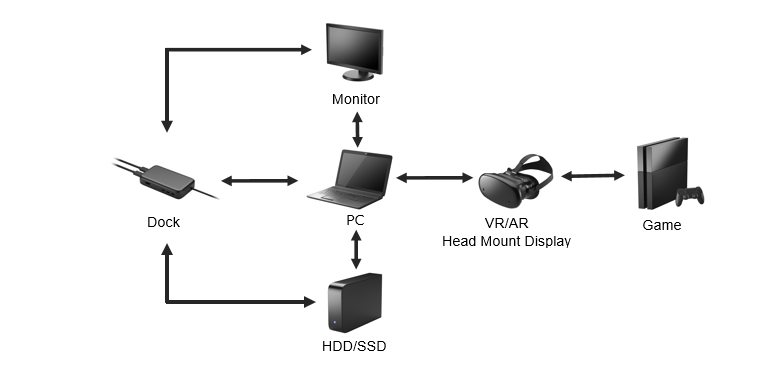

USB4 Application Examples

USB4 Application Examples

USB4 Outline

USB4 Outline


  • Compatible with USB4 40Gbps (20Gbps x 2)
  • Compatible with Universal Serial Bus Type-C Specification Release 2.0
  • Compatible with USB Power Delivery (5 A max. power supply)
  • TID : 4729

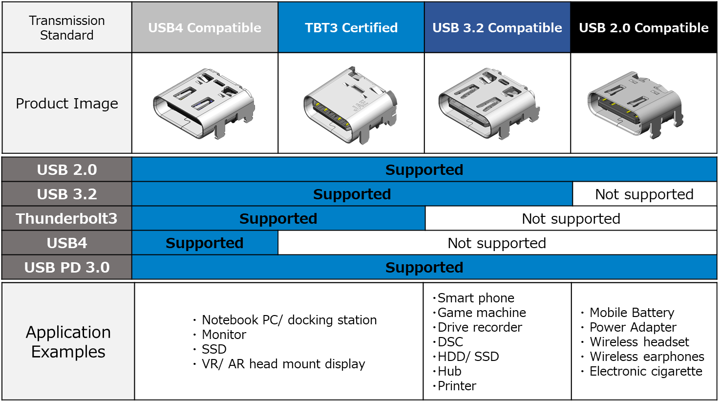

Connector Variations by Standard Compatibility

Connector Variations by Standard Compatibility

General Specifications

Type 2 Row SMT Receptacle Connector
Part Number DX07S024JAA
Rated Current 5 A max. (Vbus/GND)
Number of Contacts 24 positions
Rated Voltage AC20V r.m.s.
Contact Resistance Initial 40mΩ max.
Dielectric Withstanding Voltage AC 100Vr.m.s. (1 minute)
Insulation Resistance 100 MΩ min.
Operating Temperature Range -40°C~+85°C
Durability 10,000 times

DX07 Series (RECEPTACLE) (For more details) >

DX07 Series image


Information and details given here are as of the date of publication. Please note that the details may be changed.
