USB Type-C Connectors
DX07 Series

Since its release, the use of USB Type-C connectors have become increasingly popular in various computing devices including PCs, smartphones, and gaming consoles. Due to the flexibility of the interface, it is also commonly used in devices which specialize in supplying power, such as power adapters and mobile batteries.
From high-speed transmission connectors that support Thunderbolt™3 (40Gbps) to connectors that specialize in supplying power and USB 2.0 transmission, we offer a large lineup of products that will fit in a wide range of applications and devices. We are also focusing on developing high performance connectors which meet each new version of the USB specifications including USB4™.
As a connector manufacturer who has been involved in the development of the USB Type-C connector standard from the outset, JAE will continue to respond to customer needs and work to improve the ease of adoption by offering many variations for different device designs and PCB mounting requirements.

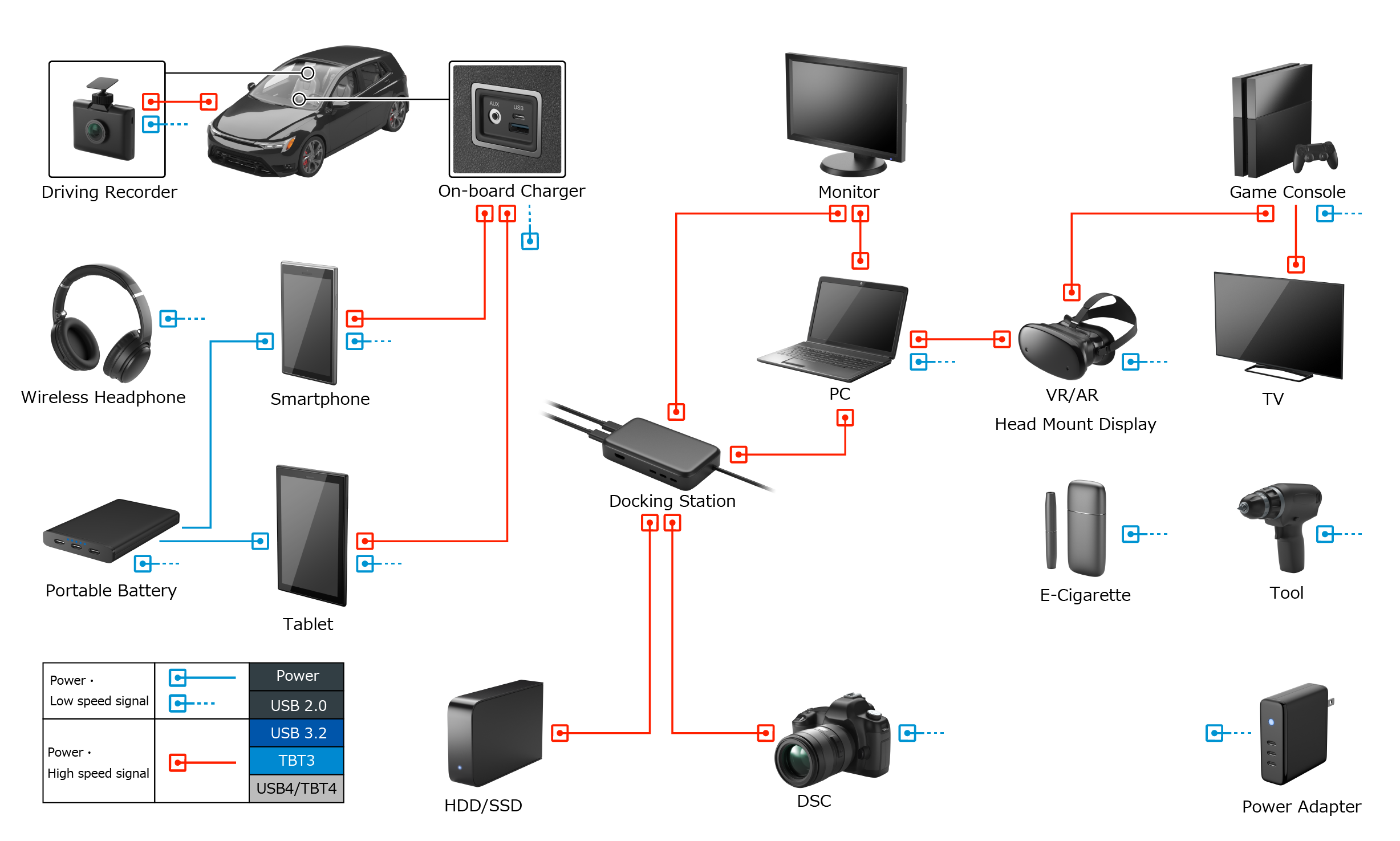

USB Type-C Applications

Below are examples of the connections between various devices which use USB Type-C connectors and cables to interface with one another. Depending on the transmission standard (USB4, USB 3.2, USB 2.0, etc.) that each device supports, the cable required to connect the devices to each other will differ.

usb type c application map

Download USB4
Information

USB Type-C Connector Receptacle Variations

There are many possible variations of the receptacle connector depending on the specific requirements for each device. Below are the main connector mounting options to consider when selecting the ideal connector.

usb type c basic specification

USB Type-C Connector Receptacle Mounting Height Variations

The mounting height for right angle connectors can be critical since this determines the position of the port on the device. In some cases, a taller connector is desirable to match the height of other taller connectors, while a low profile connector can be more desirable in thin devices.

usb type c center height line-up

USB Type-C Connector Receptacle Lineup by Transmission Standard

We offer a product lineup that matches each transmission standard. When designing equipment and selecting connectors, use the transmission standards and typical examples of applicable equipment in the table below as a reference.

usb type c transmission standard

Download USB4
Information

Common Transmission Speed Requirements by Application

Depending on the functionality and performance requirements of the equipment, the types of connectors required will also vary. Please use the recommended connector types and transmission standards listed for each device as a reference for connector selection.


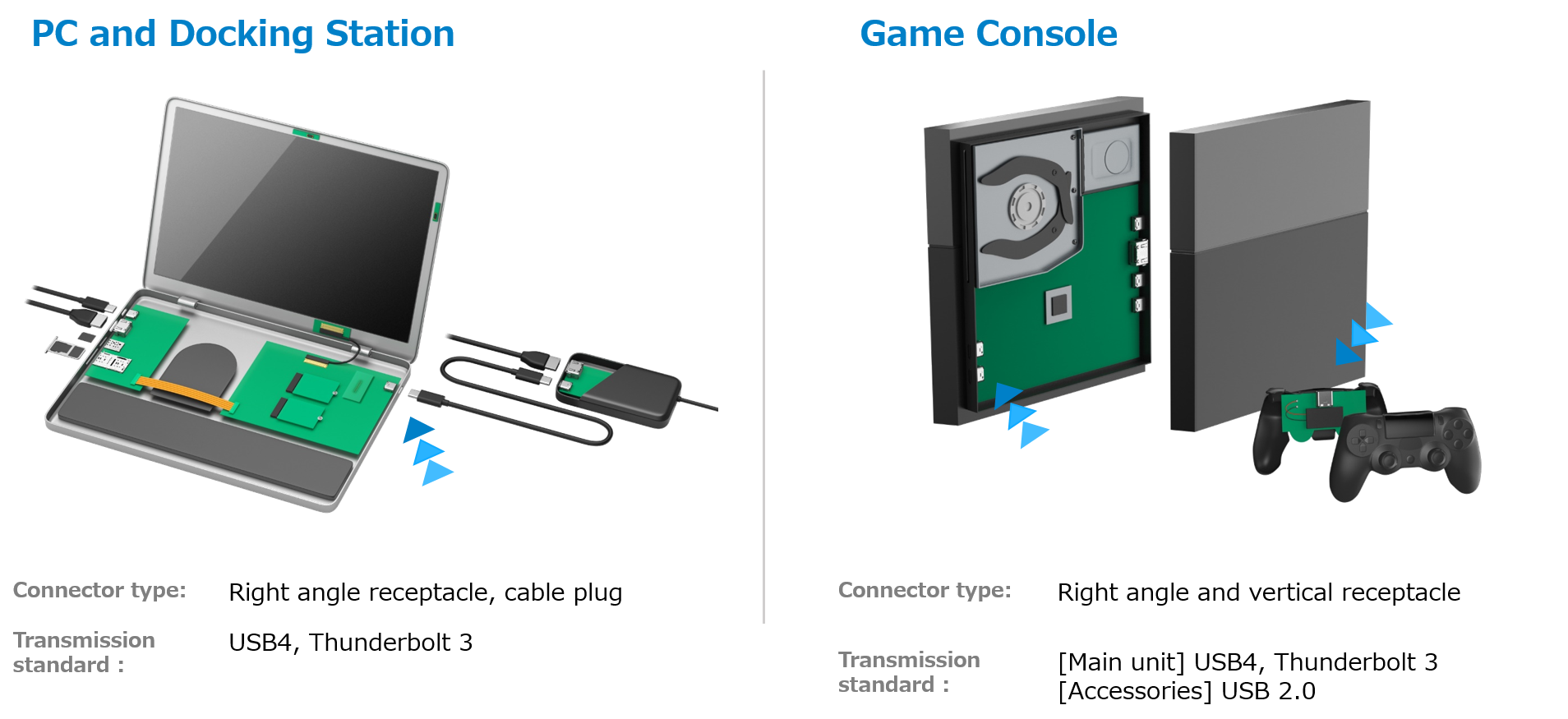

usb type c application pc, gaming

usb type c application charger, ac adapter

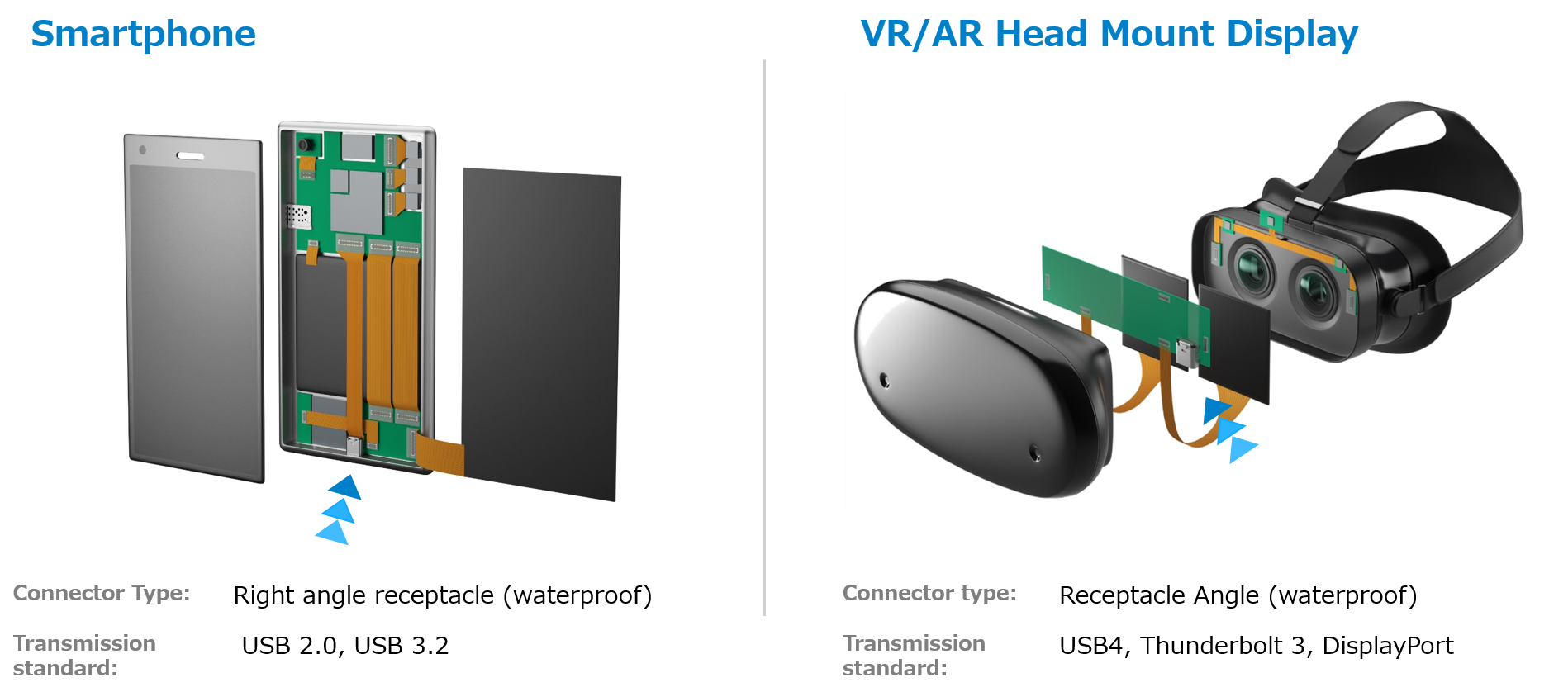

usb type c application phone, vr,ar

usb type c application dash cam, wireless headphone

USB Type-C Connector and Cable Variations

Right Angle SMT Receptacle

No. of Contacts Board Connection Type
On-board Mid-mount
24 pos. 2 row SMT usb type c receptacle usb type c receptacle

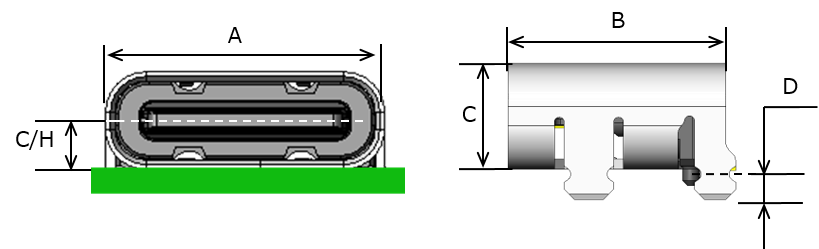

16 pos. 1 row SMT usb type c receptacle
No. of Contacts Board Connection Type Mounting Type Part Number Dimension (mm) Compatible Signal Standard
C/H A B C D Mating Length
24 pos. 2 row SMT On-board DX07S024JA1 1.57 8.94 8.17 3.14 0.6 4.7 USB 3.2, USB 2.0
DX07S024JA2 1.2
DX07S024JJ1 0.6
DX07S024JJ2 TBT 3, USB 3.2, USB 2.0
USB4 Connector is under development. Please download product detail.
Mid-mount DX07B024JJ1 0.47 12 8.17 3.14 0.8 4.7 TBT 3, USB 3.2, USB 2.0
DX07B024JJ2 USB 3.2, USB 2.0
USB4 Connector is under development. Please download product detail.
DX07BN24JA2 -0.64 16.5 11.10 3.60 0.8 6.0 USB 3.2, USB 2.0
16 pos. 1 row SMT On-board DX07S016JA1 1.58 8.94 6.90 3.16 0.9 4.7 USB 2.0
DX07S016JA3 1.2

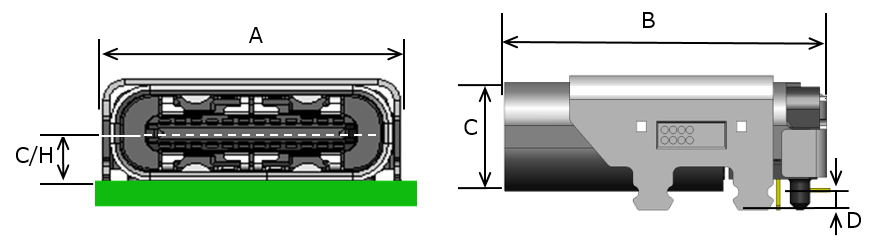

Right Angle Hybrid Receptacle

No. of Contacts
Board Connection Type
On-board Mid-mount
24 pos. Hybrid
No. of Contacts Board Connection Type Mounting Type Part Number Dimension (mm) Compatible Signal Standard
C/H A B C D Mating Length
24 pos. Hybrid On-board DX07S024XJ1A 1.6 9.4 9.65 3.34 0.9 5.5 USB 3.2, USB 2.0
DX07SA24XJ2 2.0 10.5 9.25 3.77 0.9 5.1
DX07S024XJ4 3.4 10.0 10.44 5.17 0.9 4.7
DX07S024XA8
Mid-mount DX07B024XJ1 0.7 11.8 9.65 3.14 0.9 5.5

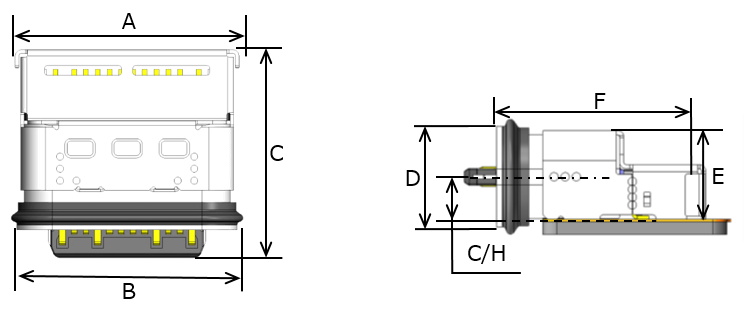

Right Angle Waterproof SMT Receptacle

No. of Contacts Board Connection Type
On-board Ingress Protection Rating
24 pos. 2 row SMT usb type c waterproof IPX8 1.5m for 30 minutes
usb type c waterproof IPX7 1.0m for 30 minutes
No. of Contacts Board Connection Type Part Number Dimension (mm) Ingress
Protection Rating
Compatible Signal Standard
C/H A B C D E F Mating Length
24 pos. 2 row SMT DX07W024JA1 1.35 11.2 8.75 8.05 2.94 3.9 7.8 4.2 IPX8 1.5m
for 30 minutes
USB 2.0
DX07W024JA2 6.2 2.6
DX07WH24JA3 1.5 9.5 9.35 8.65 3.56 3.13 7.5 3.3 IPX7 1.0m
for 30 minutes
USB 3.2, USB 2.0

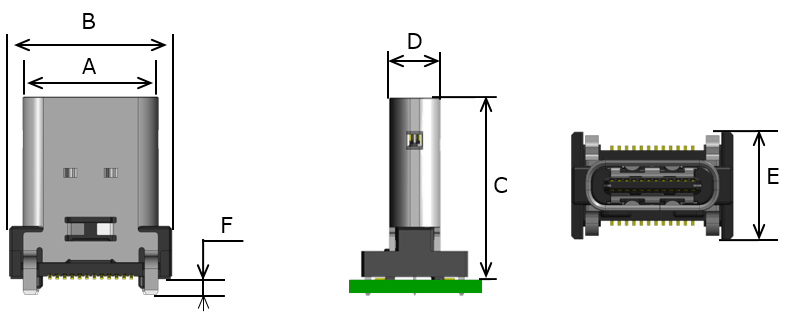

Vertical SMT Receptacle

No. of Contacts Board Connection Type
On-board Shell Lead
Termination
24 pos. Vertical   Through hole
usb type c vertical receptacle SMT
No. of Contacts Board Connection Type Part Number Dimension (mm) Compatible Signal Standard
A B C D E F G Mating Length
24 pos. Vertical DX07S024WJ1 9.14 11.0 12.0 3.34 7.0 1.0 0.6 4.7 USB 3.2, USB 2.0
DX07S024WJ3 12.0 10.0 5.0 1.8 5.0
DX07S024WJ4 6.1

Vertical SMT Plug/Dock

No. of Contacts Board Connection Type On-board
24 pos. Vertical usb type c plug
No. of Contacts Board Connection Type Part Number Dimension (mm) Feature Compatible Signal Standard
A B C D E F G
24 pos. Vertical DX07VN24WA2 8.25 18.4 12.6 1.20 2.4 5.4 1.6 Lock and ground spring removed USB 3.2, USB 2.0

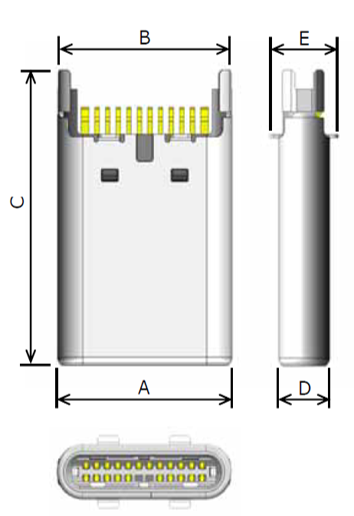

Edge Mount SMT Plug for Cable Harnesses

No. of Contacts
Slim Plug
24/
22 pos.
usb type c plug
No. of Contacts Part Number Dimension (mm) Feature Compatible Signal Standard
A B C D E
24 pos. DX07P024AJ5 8.25 8.19 13.0 2.4 4.0 Laser welded
shell seam
TBT 3, USB 3.2, USB 2.0
22 pos. DX07P022AA6 USB 3.2, USB 2.0
USB4 Connector is under development. Please download product detail.

Cable Harness

Harness Specification
USB 3.2 C to C Harness USB 3.2 C to C Harness
with Screw Lock
USB 3.2 C to Standard A Harness
usb type c harness usb type c harness1 usb type c harness2
Harness Type Part Number Specification
Material Length Compatible Signal Standard
USB 3.2 C to C Harness DX07518S10N18747 PVC Black 1000mm Gen 2x2 5A
DX07518S20K18747 PVC Black 2000mm Gen 1x2 3A
DX07518B10N19114 TPE Black 1000mm Gen 2x2 5A
DX07518B20K19114 TPE Black 2000mm Gen 1x2 3A
USB 3.2 C to C Harness with Screw Lock DX07550B10N19510 TPE Black 1000mm Gen 2x2 5A
DX07550B20K19510 TPE Black 2000mm Gen 1x2 3A
USB 3.2 C to Standard-A Harness DX07519S10L19294 PVC Black 1000mm Gen 2x1 3A
DX07519B10L18748 TPE Black 1000mm Gen 2x1 3A
USB4 Cable Harness is under development. Please download product detail.

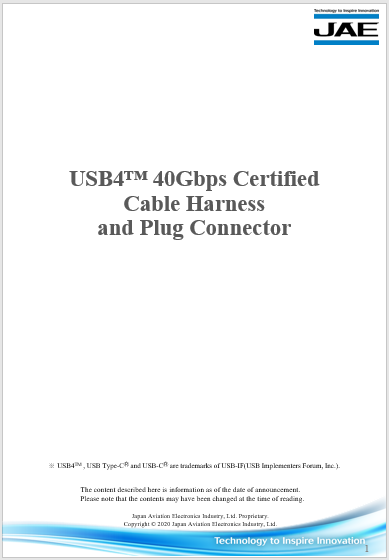

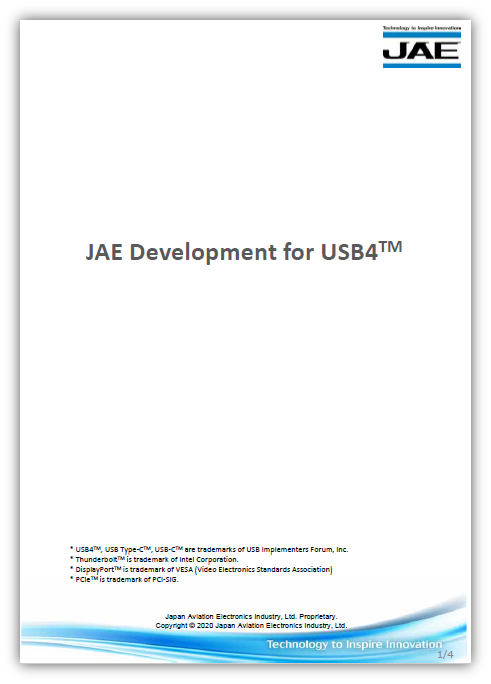

Download Latest Information on USB4
