Tool List
Precausions for Toolings
- Regarding the detailed specifications of applicable cables and tools listed in this web, there may be restrictions in use.
- If you have any question using tool, please consult with JAE Sales or distributors.
- When using tool, please follow the Handling Instructions and Work Procedure Instructions.
- For RoHS compliance of tools. Please contact our sales.
- For terminal extraction tools, Please contact our sales.
Search Hand Crimp Tool/Contacts
- J
- 3
- C
- F
- L
- M
- P
- S
- C
-
- CT150-19*-MX80
- CT150-2-AG5
- CT150-2-D*C
- CT150-2-D02
- CT150-2-IL
- CT150-2-ILG
- CT150-2-JN1-B
- CT150-2-JN1-D
- CT150-2-JN1-E
- CT150-2-MX34
- CT150-2-MX44
- CT150-2-PSSF
- CT150-2-PSSLA-B
- CT150-2B-D*C
- CT150-2B-IL
- CT150-2B-ILG
- CT150-2B-JL05
- CT150-2B-MX34
- CT150-2C-ILG
- CT150-2C-JL05
- CT150-2C-MX34
- CT150-2G-PSSF
- CT150-4-LY1
- CT150-4-LY2
- CT150-4C-FI
- CT150-4C-FIR
- CT150-4C-FIX
- CT150-4C-MX19
- CT170-14-GTC
- CT170-14-JL05
- CT170-14B-GTC
- CT170-14B-JL05
- CT170-14B-GTC
- CT170-14C-GTC
- CT170-14C-JL05
- CT170-14D-GTC

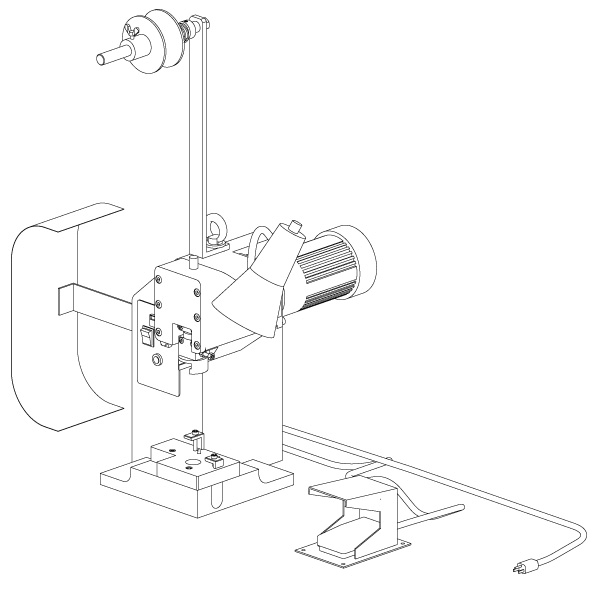

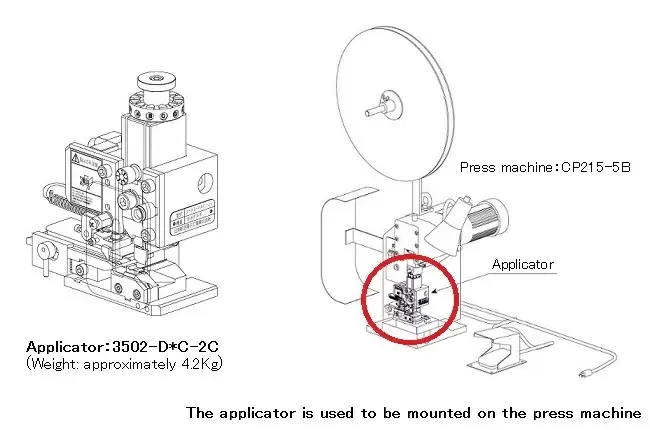

Search Semi-Automatic Crimp Tool
Search IDC Tool/Contact Extraction Tool
Check the Appearance of Tool
Search Hand Crimp Tool by Series：D*MA series
| Contact Shape | Contact Part Number | Applicable Electric Wire | Hand Crimping Tool | Remarks | |
|---|---|---|---|---|---|
| AWG No. | Body | Locator | |||
| Pin | 330-50264 | #30 to #26 | (Note) | JP-D*MA-20-20 | |
| 330-5291-900 | #24 to #20 | ||||
| 330-5291-055 | #18 or #22*two pieces | (Note) | JP-D*MA-20-18 | ||
| Socket | 031-50287 | #30 to #26 | (Note) | JP-D*MA-20-20 | |
| 031-5130-000 | #24 to #20 | ||||
| 031-1007-054 | #18 or #22*two pieces | (Note) | JP-D*MA-20-18 | ||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：D*ML series
| Contact Shape | Contact Part Number (Coaxial Contact) |
Applicable Electric Wire | Hand Crimping Tool | Remarks | ||
|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | Body | Locator | |||
| Pin | DML-CPSC-3R | 1.5C-2V | 2.9 mm | (Note) | JP-D*ML | Central contact crimp tool |
| (Note) | - | External sleeve crimp tool | ||||
| Socket | DML-CRSC-3R | 1.5C-2V | 2.9 mm | (Note) | JP-D*ML | Central contact crimp tool |
| (Note) | - | External sleeve crimp tool | ||||
| Contact Shape | Contact Part Number (Signal Contact) |
Applicable Electric Wire | Hand Crimping Tool | Remarks | ||
| AWG No. | Insulation Outer Dia. | |||||
| Pin | D*C-20-24P-PKG100 | #28 to #24 | 0.8 to 1.3 mm | (Note) | ||
| 1.0 to 1.5 mm | CT150-2-D*C | |||||
| D*C-20-22P-PKG100 | #24 to #22 | 1.2 to 1.5 mm | ||||
| D*C-20-18P-PKG100 | #22 to #18 | 1.95 mm max. | CT150-2B-D*C | |||
| Socket | D*C-20-24S-PKG100 | #28 to #24 | 0.8 to 1.3 mm | (Note) | ||
| 1.0 to 1.5 mm | CT150-2-D*C | |||||
| D*C-20-22S-PKG100 | #24 to #22 | 1.2 to 1.5 mm | ||||
| D*C-20-18S-PKG100 | #22 to #18 | 1.95 mm max. | CT150-2B-D*C | |||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：D*U series
| Contact Shape | Contact Part Number (Press Contact) |
Applicable Electric Wire | Hand Crimping Tool | Remarks | ||
|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||||
| Pin | D*C-20-24P-PKG100 | #28 to #24 | 0.8 to 1.3 mm | (Note) | ||
| 1.0 to 1.5 mm | CT150-2-D*C | |||||
| D*C-20-22P-PKG100 | #24 to #22 | 1.2 to 1.5 mm | ||||
| D*C-20-18P-PKG100 | #22 to #18 | 1.95 mm max. | CT150-2B-D*C | |||
| Socket | D*C-20-24S-PKG100 | #28 to #24 | 0.8 to 1.3 mm | (Note) | ||
| 1.0 to 1.5 mm | CT150-2-D*C | |||||
| D*C-20-22S-PKG100 | #24 to #22 | 1.2 to 1.5 mm | ||||
| D*C-20-18S-PKG100 | #22 to #18 | 1.95 mm max. | CT150-2B-D*C | |||
| Contact Shape | Contact Part Number (Machine Contact) |
Applicable Electric Wire | Hand Crimping Tool | Remarks | ||
| AWG No. | Insulation Outer Dia. | Body | Locator | |||
| Pin | 030-50641 | #30 to #26 | (Note) | JP-D*C-20-20 | ||
| 030-50635 | #24 to #20 | |||||
| 030-1954-000 | #18 or #22*two pieces | (Note) | (Note) | |||
| Socket | 030-50640 | #30 to #26 | (Note) | JP-D*C-20-20 | ||
| 030-50634 | #24 to #20 | |||||
| 030-1955-000 | #18 or #22*two pieces | (Note) | (Note) | |||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：D02-M15 series
| Contact Shape | Contact Part Number | Applicable Electric Wire | Hand Crimping Tool | Remarks | |
|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | ||||
| Pin | D02-22-22P-PKG100 | #24 to #22 | 1.1 to 1.3 mm | CT150-2-D02 | |
| D02-22-26P-PKG100 | #28 to #26 | 0.8 to 1.0 mm | |||
| Socket | D02-22-22S-PKG100 | #24 to #22 | 1.1 to 1.3 mm | ||
| D02-22-26S-PKG100 | #28 to #26 | 0.8 to 1.0 mm | |||
Search Hand Crimp Tool by Series：FI-R series
| Contact Part Number | Applicable Electric Wire | Hand Crimping Tool | Remarks | |
|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||
| FI-RC3-1A-1E-15000 | #36 to #30 | 0.27 to 0.75 mm | CT150-4C-FIR | Upper contact |
| FI-RC3-1B-1E-15000 | #36 to #30 | 0.27 to 0.75 mm | Lower contact | |
Search Hand Crimp Tool by Series：FI-X series
| Contact Part Number | Applicable Electric Wire | Hand Crimping Tool | Remarks | |
|---|---|---|---|---|
| AWG No. | Insulation outer Dia. | |||
| FI-XC3B-1-15000 | #36 to #30 | 0.45 to 0.75 mm | CT150-4C-FIX | |
Search Hand Crimp Tool by Series：FI series
| Contact Shape | Contact Part Number | Applicable Electric Wire | Hand Crimping Tool | Remarks | |
|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | ||||
| Socket | FI-C3-A1-15000 | #32 to #28 | 0.5 to 0.9 mm | CT150-4C-FI | |
Search Hand Crimp Tool by Series：HB01 series
| Contact | Applicable Electric Wire | Hand Crimping Tool | Supply Type | ||||
|---|---|---|---|---|---|---|---|
| Shape | Part Number | Size | Type | AWG No. | Insulation Outer Dia. | ||
| Pin | HB01P06K4P1 | #22 | Signal | #24 to #22 | 0.9 to 1.5 mm | (Note) | Reeled 6000 pcs./reel |
| HB01P06K4P2 | #19 | Signal | #21 to #19 | 1.2 to 1.8 mm | Reeled 6000 pcs./reel | ||
| HB01P25H2P1 | #14 | Power | #16 to #14 | 2.1 to 2.95 mm | (Note) | Reeled 2500 pcs./reel | |
| HB01P25H3P1 | #17 | Power | #19 to #17 | 1.6 to 2.3 mm | Reeled 2500 pcs./reel | ||
| Socket | HB01S06K4P1 | #22 | Signal | #24 to #22 | 0.9 to 1.5 mm | (Note) | Reeled 6000 pcs./reel |
| HB01S06K4P2 | #19 | Signal | #21 to #19 | 1.2 to 1.8 mm | Reeled 6000 pcs./reel | ||
| HB01S25H2P1 | #14 | Power | #16 to #14 | 2.1 to 2.95 mm | (Note) | Reeled 2500 pcs./reel | |
| HB01S25H3P1 | #17 | Power | #19 to #17 | 1.6 to 2.3 mm | Reeled 2500 pcs./reel | ||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：HB03 series
| Contact | Applicable Electric Wire | Hand Crimping Tool | Supply Type | |||
|---|---|---|---|---|---|---|
| Shape | Part Number | Size | AWG No. | Insulation Outer Dia. | ||
| Pin | HB03P12K5A | #24 | #26 to #24 | 0.9 to 1.5 mm | (Note) | Reeled 12000 pcs./reel |
| HB03P12K6A | #28 | #30 to #28 | 0.6 to 1.2 mm | Reeled 12000 pcs./reel | ||
| Socket | HB03S12K5A | #24 | #26 to #24 | 0.9 to 1.5 mm | (Note) | Reeled 12000 pcs./reel |
| HB03S12K6A | #28 | #30 to #28 | 0.6 to 1.2 mm | Reeled 12000 pcs./reel | ||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：IL-AG5 series
| Contact | Applicable Electric Wire | Hand Crimping Tool | ||||
|---|---|---|---|---|---|---|
| Shape | Part Number | Type | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |
| Pin | IL-AG5-PC1-5000 | AV, AVS, AVSS | 0.3 to 0.5 mm2 | #22 to #20 equivalent | 1.4 to 2.4 mm | CT150-2-AG5 |
| AVS, AVSS | 0.85 mm2 | #18 equivalent | ||||
| Socket | IL-AG5-C1-5000 | AV, AVS, AVSS | 0.3 to 0.5 mm2 | #22 to #20 equivalent | 1.4 to 2.4 mm | |
| AVS, AVSS | 0.85 mm2 | #18 equivalent | ||||
Search Hand Crimp Tool by Series：IL-AG9 series
| Contact | Applicable Electric Wire | Hand Crimping Tool | ||||
|---|---|---|---|---|---|---|
| Shape | Part Number | Type | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |
| Pin | IL-AG5-PC1-5000 | AV, AVS, AVSS | 0.3 to 0.5 mm2 | #22 to #20 equivalent | 1.4 to 2.4 mm | CT150-2-AG5 |
| AVS, AVSS | 0.85 mm2 | #18 equivalent | ||||
| Socket | IL-AG5-C1-5000 | AV, AVS, AVSS | 0.3 to 0.5 mm2 | #22 to #20 equivalent | 1.4 to 2.4 mm | |
| AVS, AVSS | 0.85 mm2 | #18 equivalent | ||||
Search Hand Crimp Tool by Series：IL-G series
| Contact | Applicable Electric Wire | Hand Crimping Tool | ||
|---|---|---|---|---|
| Shape | Part Number | AWG No. | Insulation Outer Dia. | |
| Socket | IL-G-C2-SC-10000 | #24 to #22 | 1.4 to 1.7 mm | CT150-2C-ILG |
| #26 to #24 | 1.2 to 1.5 mm | CT150-2B-ILG | ||
| #28 to #26 | 1.0 to 1.3 mm | CT150-2-ILG | ||
Search Hand Crimp Tool by Series：IL series
| Contact | Applicable Electric Wire | Hand Crimping Tool | |||
|---|---|---|---|---|---|
| Shape | Part Number | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |
| Socket | IL-C2-10000 (Tin plating) |
0.20 to 0.32 mm2 | #24 to #22 | 1.4 to 1.7 mm | CT150-2-IL |
| 0.13 to 0.20 mm2 | #26 to #24 | 1.2 to 1.5 mm | CT150-2B-IL | ||
| 0.08 to 0.13 mm2 | #28 to #26 | 1.0 to 1.3 mm | CT150-2-IL | ||
| IL-C2-1-10000 (Partial Gold plating) |
0.20 to 0.32 mm2 | #24 to #22 | 1.4 to 1.7 mm | CT150-2-IL | |
| 0.13 to 0.20 mm2 | #26 to #24 | 1.2 to 1.5 mm | CT150-2B-IL | ||
| 0.08 to 0.13 mm2 | #28 to #26 | 1.0 to 1.3 mm | CT150-2-IL | ||
Search Hand Crimp Tool by Series：JB10 series
| Contact | Hand Crimping Tool | Applicable Electric Wire | Remarks | |
|---|---|---|---|---|
| Shape | Part Number | AWG No. | ||
| Pin | JN1-22-20P-R-10000 | (Note) | #21, #20 | Strip |
| JN1-22-20P-R-PKG100 | Loose piece | |||
| JN1-22-22P-10000 | (Note) | #24, #22 | Strip | |
| JN1-22-22P-PKG100 | Loose piece | |||
| JN1-22-26P-10000 | (Note) | #28, #26 | Strip | |
| JN1-22-26P-PKG100 | Loose piece | |||
| Socket | JN2V-22-20S-10000 | (Note) | #21, #20 | Strip |
| JN2V-22-22S-10000 | (Note) | #24, #22 | Strip | |
| JN2V-22-26S-10000 | (Note) | #28, #26 | Strip | |
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：JB1 series
| Contact | Applicable electric wire | Hand Crimping Tool | Remarks | ||
|---|---|---|---|---|---|
| Shape | Part Number | AWG No. | Insulation Outer Dia. | ||
| Pin | D02-22-22P-PKG100 | #24 to #22 | 1.1 to 1.3 mm | CT150-2-D02 | |
| D02-22-26P-PKG100 | #28 to #26 | 0.8 to 1.0 mm | |||
| Socket | D02-22-22S-PKG100 | #24 to #22 | 1.1 to 1.3 mm | ||
| D02-22-26S-PKG100 | #28 to #26 | 0.8 to 1.0 mm | |||
Search Hand Crimp Tool by Series：JK06 Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | |||||
|---|---|---|---|---|---|---|---|
| Shape | Size | Finish | Part Number | Cross-section Area of Conductor | AWG No. | Body | Locator |
| Pin | #16 | Silver plating | J031-57706-PKG10 | 0.3 to 0.5 mm2 | #22 to #20 | (Note) | JP-GTC-16 |
| Gold plating | J031-57708-PKG10 | ||||||
| Silver plating | J031-57666-PKG10 | 0.75 to 1.5 mm2 | #18 to #15 | ||||
| Gold plating | J031-57667-PKG10 | ||||||
| Silver plating | J031-57179-PKG10 | 1.25 to 2.0 mm2 | #16 to #14 | ||||
| Gold plating | J031-57297-PKG10 | ||||||
| Silver plating | J031-57707-PKG10 | 1.5 to 2.5 mm2 | #15 to #13 | ||||
| Gold plating | J031-57709-PKG10 | ||||||
| Socket | #16 | Silver plating | J031-57711-PKG10 | 0.3 to 0.5 mm2 | #22 to #20 | (Note) | JP-GTC-16 |
| Gold plating | J031-57713-PKG10 | ||||||
| Silver plating | J031-57651-PKG10 | 0.75 to 1.5 mm2 | #18 to #15 | ||||
| Gold plating | J031-57664-PKG10 | ||||||
| Silver plating | 031-57180-PKG10 | 1.25 to 2.0 mm2 | #16 to #14 | ||||
| Gold plating | J031-57299-PKG10 | ||||||
| Silver plating | J031-57294-PKG10 | 1.5 to 2.5 mm2 | #15 to #13 | ||||
| Gold plating | J031-57296-PKG10 | ||||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：JL02 Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | Remarks | |||
|---|---|---|---|---|---|---|
| Shape | Part Number | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | ||
| Pin | 031-50967-010 | 1.25 to 2.0 mm2 | #16 to #14 | 3.7 mm max. | CT170-14C-GTC | Loose piece |
| ST-GTC-16P3-3500 | Strip | |||||
| 031-50966-010 | 0.5 to 1.25 mm2 | #20 to #16 | 3.7 mm max. | CT170-14B-GTC | Loose piece | |
| ST-GTC-16P2-3500 | Strip | |||||
| 031-50965-010 | 0.2 to 0.5 mm2 | #24 to #20 | 3.7 mm max. | CT170-14-GTC | Loose piece | |
| ST-GTC-16P1-3500 | Strip | |||||
| 031-51743-010 | 0.08 to 0.13 mm2 | #28 to #26 | 1.1 to 1.5 mm | CT170-14D-GTC | Loose piece | |
| Socket | 031-50970-010 | 1.25 to 2.0 mm2 | #16 to #14 | 3.7 mm max. | CT170-14C-GTC | Loose piece |
| ST-GTC-16S3-3500 | Strip | |||||
| 031-50969-010 | 0.5 to 1.25 mm2 | #20 to #16 | 3.7 mm max. | CT170-14B-GTC | Loose piece | |
| ST-GTC-16S2-3500 | Strip | |||||
| 031-50968-010 | 0.2 to 0.5 mm2 | #24 to #20 | 3.7 mm max. | CT170-14-GTC | Loose piece | |
| ST-GTC-16S1-3500 | Strip | |||||
| 031-51744-010 | 0.08 to 0.13 mm2 | #28 to #26 | 1.1 to 1.5 mm | CT170-14D-GTC | Loose piece | |
Search Hand Crimp Tool by Series：JL05 Series
| Contact Shape | Contact Arrangement Code | Contact | Applicable electric Wire | Hand Crimping Tool | Remarks | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | Part Number | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | Body | Locator | Stopper Cap | |||
| Pin | 22-22, 24-10, 24-11 | #8 | CONT-JL05-08P-C1-10 | 5.5 to 8 mm2 | #10 to #8 | 7.25 mm max. | (Note) | L-JL05-8 | (Note) | |
| CONT-JL05-08P-C2-10 | 3.5 to 5.5 mm2 | #12 to #10 | 7.25 mm max. | (Note) | ||||||
| 18-11, 20-15, 22-23, 24-11, 28-36B | #12 | CONT-JL05-12P-C1-10 | 1.25 to 3.5 mm2 | #16 to #12 | 4.65 mm max. | (Note) | (Note) | - | ||
| Socket | 22-22, 24-10, 24-11 | #8 | CONT-JL05-08S-C1-10 | 5.5 to 8 mm2 | #10 to #8 | 7.25 mm max. | (Note) | L-JL05-8 | (Note) | |
| CONT-JL05-08S-C2-10 | 3.5 to 5.5 mm2 | #12 to #10 | 7.25 mm max. | (Note) | ||||||
| 18-11, 20-15, 22-23, 24-11, 28-36B | #12 | CONT-JL05-12S-C1-10 | 1.25 to 3.5 mm2 | #16 to #12 | 4.65 mm max. | (Note) | (Note) | - | ||
| Contact Shape | Contact Arrangement Code | Contact | Applicable Electric Wire | Hand Crimping Tool | Remarks | |||||
| Size | Part Number | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | ||||||
| Pin | 18-1, 20-29, 22-14, 24-28, 28-21, 28-36B | #16 | ST-JL05-16P-C1-100 | 1.25 to 2.0 mm2 | #16 to #14 | 3.8 mm max. | CT170-14C-JL05 | Loose piece | ||
| ST-JL05-16P-C1-3500 | Strip | |||||||||
| ST-JL05-16P-C2-100 | 0.5 to 1.25 mm2 | #20 to #16 | 3.8 mm max. | CT170-14B-JL05 | Loose piece | |||||
| ST-JL05-16P-C2-3500 | Strip | |||||||||
| ST-JL05-16P-C3-100 | 0.2 to 0.5 mm2 | #24 to #20 | 3.8 mm max. | CT170-14-JL05 | Loose piece | |||||
| ST-JL05-16P-C3-3500 | Strip | |||||||||
| 18-19A, 20-30A, 24-52A, 28-36B, 28-73A | #20 | ST-JL05-20P-C1-100 | 0.3 to 0.8 mm2 | #22 to #18 | 2.3 mm max. | CT150-2C-JL05 | Loose piece | |||
| ST-JL05-20P-C1-10000 | Strip | |||||||||
| ST-JL05-20P-C2-100 | 0.13 to 0.3 mm2 | #26 to #22 | 1.2 to 1.7 mm | CT150-2B-JL05 | Loose piece | |||||
| ST-JL05-20P-C2-10000 | Strip | |||||||||
| Socket | 18-1, 20-29, 22-14, 24-28, 28-21, 28-36B | #16 | ST-JL05-16S-C1-100 | 1.25 to 2.0 mm2 | #16 to #14 | 3.8 mm max. | CT170-14C-JL05 | Loose piece | ||
| ST-JL05-16S-C1-3500 | Strip | |||||||||
| ST-JL05-16S-C2-100 | 0.5 to 1.25 mm2 | #20 to #16 | 3.8 mm max. | CT170-14B-JL05 | Loose piece | |||||
| ST-JL05-16S-C2-3500 | Strip | |||||||||
| ST-JL05-16S-C3-100 | 0.2 to 0.5 mm2 | #24 to #20 | 3.8 mm max. | CT170-14-JL05 | Loose piece | |||||
| ST-JL05-16S-C3-3500 | Strip | |||||||||
| 18-19A, 20-30A, 24-52A, 28-36B, 28-73A | #20 | ST-JL05-20S-C1-100 | 0.3 to 0.8 mm2 | #22 to #18 | 2.3 mm max. | CT150-2C-JL05 | Loose piece | |||
| ST-JL05-20S-C1-10000 | Strip | |||||||||
| ST-JL05-20S-C2-100 | 0.13 to 0.3 mm2 | #26 to #22 | 1.2 to 1.7 mm | CT150-2B-JL05 | Loose piece | |||||
| ST-JL05-20S-C2-10000 | Strip | |||||||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：JN1/JN2 Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | Remarks | ||
|---|---|---|---|---|---|
| Shape | Part Number | AWG No. | Insulation Outer Dia. | ||
| Pin | JN1-22-20P-R-PKG100 | #21, #20 | 1.3 to 1.5 mm | CT150-2-JN1-D | |
| JN1-22-22P-PKG100 | #23, #21 | 1.0 to 1.5 mm | CT150-2-JN1-E | ||
| #24, #22 | 1.0 to 1.3 mm | CT150-2-JN1-B | |||
| #25 | 0.8 to 1.0 mm | CT150-2-JN1-D | |||
| JN1-22-26P-PKG100 | #28, #26 | 0.8 to 1.0 mm | CT150-2-JN1-B | ||
| Socket | JN1-22-20S-R-PKG100 | #21, #20 | 1.3 to 1.5 mm | CT150-2-JN1-D | |
| JN1-22-22S-PKG100 | #25 | 0.8 to 1.0 mm | CT150-2-JN1-D | ||
| #23, #21 | 1.0 to 1.5 mm | CT150-2-JN1-E | |||
| #24, #22 | 1.0 to 1.3 mm | CT150-2-JN1-B | |||
| JN1-22-26S-PKG100 | #28, #26 | 0.8 to 1.0 mm | CT150-2-JN1-B | ||
Search Hand Crimp Tool by Series：JN14 Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | Remarks | ||
|---|---|---|---|---|---|
| Shape | Part Number | AWG No. | Insulation Outer Dia. | ||
| Pin | JN-24P-C1B-B1-10000 | #24 | 1.0 to 1.2 mm | (Note) | |
| #22 | 1.1 to 1.2 mm | ||||
| JN-24P-C2B-B1-10000 | #28 | 0.7 to 1.0 mm | (Note) | ||
| #26 | 0.9 to 1.2 mm | ||||
| Socket | JN-24S-C1B-B1-10000 | #24 | 1.0 to 1.2 mm | CT150-4-LY1 | |
| #22 | 1.1 to 1.2 mm | ||||
| JN-24S-C2B-B1-10000 | #28 | 0.7 to 1.0 mm | (Note) | ||
| #26 | 0.9 to 1.2 mm | ||||
| JN-18S-C1B-A1-PKG100 | #20 | 1.3 to 1.8 mm | (Note) | ||
| #18 | |||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：JN1V/JN2V Series
| Contact | Applicable Wire Size | Hand Crimping Tool | Remarks | ||
|---|---|---|---|---|---|
| Shape | Size | Part Number | |||
| Socket | #22 | JN2V-22-20S-PKG100 | AWG #21, #20 | (Note) | |
| JN2V-22-22S-PKG100 | AWG #24, #22 | (Note) | |||
| AWG #21 | (Note) | ||||
| JN2V-22-26S-PKG100 | AWG #28, #26 | (Note) | |||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：JN6 Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | |||
|---|---|---|---|---|---|
| Shape | Size | Part Number | AWG No. | Insulation Outer Dia. | |
| Pin | #24 | JN6-24P-C1-10000 | #24 to #22 | 1.0 to 1.3 mm | (Note) |
| JN6-24P-C2-10000 | #28 to #26 | 0.7 to 1.2 mm | (Note) | ||
| Socket | #24 | LY10-C1-A1-10000 | #26 to #22 | 1.0 to 1.3 mm | CT150-4-LY1 |
| LY10-C2-A1-10000 | #30 to #26 | 0.7 to 1.2 mm | CT150-4-LY2 | ||
| #18 | ST-JN5-S-C1B-2500-(A534G) | #20 to #18 | 1.3 to 1.8 mm | (Note) | |
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：KN01 Series
| Contact | Hand Crimping Tool | Applicable Electric Wire | |||
|---|---|---|---|---|---|
| Shape | Size | Part Number | AWG No. | Insulation Outer Dia. | |
| Pin | #22 | JN1-22-20P-R-PKG100 | CT150-2-JN1-D | #21, #20 | 1.3 to 1.5 mm |
| JN1-22-22P-PKG100 | #25 | 0.8 to 1.0 mm | |||
| CT150-2-JN1-E | #23, #21 | 1.0 to 1.5 mm | |||
| #25 | 0.8 to 1.0 mm | ||||
| CT150-2-JN1-B | #24, #22 | 1.0 to 1.3 mm | |||
| JN1-22-26P-PKG100 | #28, #26 | 0.8 to 1.0 mm | |||
| JN1-22-20P-R-PKG100 | (Note) | #21, #20 | 1.3 to 1.5 mm | ||
| JN1-22-20P-10000 | #28, #26 | 0.8 to 1.0 mm | |||
| (Note) | #23, #21 | 1.0 to 1.5 mm | |||
| #25 | 0.8 to 1.0 mm | ||||
| (Note) | #24, #22 | 1.0 to 1.3 mm | |||
| JN1-22-26P-10000 | #28, #26 | 0.8 to 1.0 mm | |||
| #20 | KN01P03KKP1 | (Note) | #22 to #19 | 1.3 to 2.0 mm | |
| KN01P03KKP2 | (Note) | #19 | 2.0 to 2.8 mm | ||
| KN01P03KKP3 | #25, #23, #22 | 1.0 to 1.8 mm | |||
| #16 | KN01P25HHP1 | (Note) | #19, #16 | 1.7 to 2.4 mm | |
| KN01P25HHP2 | #19, #16 | 2.4 to 3.2 mm | |||
| #12 | KN01P15HGP1 | (Note) | #14 to #12 | 3.5 to 4.4 mm | |
| KN01P15HGP2 | #17 to #12 | 2.8 to 3.5 mm | |||
| Socket | #22 | JN2V-22-20S-10000 | (Note) | #21, #20 | 1.3 to 1.5 mm |
| JN2V-22-22S-10000 | #28 to #26 | 0.8 to 1.0 mm | |||
| (Note) | #23, #21 | 1.0 to 1.5 mm | |||
| #25 | 0.8 to 1.0 mm | ||||
| (Note) | #24, #22 | 1.0 to 1.3 mm | |||
| JN2V-22-26S-PKG100 | #28, #26 | 0.8 to 1.0 mm | |||
| CT150-2-JN2V | #28, #26 | 0.8 to 1.0 mm | |||
| JN2V-22-22S-PKG100 | (Note) | #24, #22 | 0.8 to 1.3 mm | ||
| JN2V-22-20S-PKG100 | CT150-2C-JN2V | #21, #20 | 1.5 mm max. | ||
| #20 | KN01S03KKP1 | (Note) | #22 to #19 | 1.3 to 2.0 mm | |
| KN01S03KKP2 | (Note) | #19 | 2.0 to 2.8 mm | ||
| KN01S03KKP3 | #25, #23, #22 | 1.0 to 1.8 mm | |||
| #16 | KN01S25HHP1 | (Note) | #19, #16 | 1.7 to 2.4 mm | |
| KN01S25HHP2 | #19, #16 | 2.4 to 3.2 mm | |||
| #12 | KN01S15HGP1 | (Note) | #14 to #12 | 3.5 to 4.4 mm | |
| KN01S15HGP2 | #17 to #14 | 2.8 to 3.5 mm | |||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：KN06 Series
| Contact | Hand Crimping Tool | Applicable Electric Wire | |||
|---|---|---|---|---|---|
| Shape | Size | Part Number | AWG No. | Insulation Outer Dia. | |
| Pin | #20 | KN01P03KKP1 | (Note) | #22 to #18 | 1.3 to 2.0 mm |
| KN01P03KKP3 | (Note) | #26 to #22 | 1.0 to 1.8 mm | ||
| Socket | #20 | KN01S03KKP1 | (Note) | #22 to #18 | 1.3 to 2.0 mm |
| KN01S03KKP3 | (Note) | #26 to #22 | 1.0 to 1.8 mm | ||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：LY series
| Contact | Applicable Electric Wire | Hand Crimping Tool | Remarks | |||
|---|---|---|---|---|---|---|
| Shape | Part Number | Finish | AWG No. (Stranded) | Insulation Outer Dia. | ||
| Socket | LY10-C1-A1-10000 | Gold plating | #26 to #22 | 0.8 to 1.3 mm | CT150-4-LY1 | |
| LY10-C1-5-10000 | Tin plating | |||||
| LY10-C2-A1-10000 | Gold plating | #30 to #26 | 0.7 to 1.2 mm | CT150-4-LY2 | ||
| LY10-C2-5-10000 | Tin plating | |||||
Search Hand Crimp Tool by Series：MX17 Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | |||||
|---|---|---|---|---|---|---|---|
| Shape | Part Number | Finish | Type | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. |
|
| Pin | MX10-SG-PC2-1E-5000 | Gold plating | AVS | 0.3 mm2 | #22 equivalent | 1.9 mm | (Note) |
| AVSS | 0.3 to 0.85 mm2 | #22 to #18 equivalent |
1.4 to 1.9 mm | ||||
| AVSS fTA, AVSSX fTA | 0.5 to 0.75 mm2 | #20 to #19 equivalent | 1.6 to 1.9 mm | ||||
| Socket | M17S03K911 | Gold plating | AVSS fTA | 0.5 mm2 | #20 equivalent | 1.7 to 1.9 mm | (Note) |
| AVSS, CAVS | 0.3 to 0.5 mm2 | #22 to #20 equivalent | 1.4 to 1.9 mm | ||||
| M17S03K951 | Tin plating | AVSS fTA | 0.5 mm2 | #20 equivalent | 1.7 to 1.9 mm | ||
| AVSS, CAVS | 0.3 to 0.5 mm2 | #22 to #20 equivalent | 1.4 to 1.9 mm | ||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：MX19 Series
| Contact | Applicable Wire | Insulation Outer Dia. | Removal Length of Insulation | Hand Crimping Tool | |
|---|---|---|---|---|---|
| Shape | Part Number | ||||
| Pin | MX19P10K451 | CAVS0.3 (mm2) | 1.4 to 1.5 mm | 2.0 to 2.5 mm | CT150-4C-MX19 |
| CATL22 | 1.4 to 1.5 mm | ||||
| CAVS0.5 (mm2) | 1.6 to 1.7 mm | ||||
| AVSS0.5 (mm2) | 1.6 to 1.7 mm | ||||
| Socket | MX19S10K451 | CAVS0.3 (mm2) | 1.4 to 1.5 mm | ||
| CATL22 | 1.4 to 1.5 mm | ||||
| CAVS0.5 (mm2) | 1.6 to 1.7 mm | ||||
| AVSS0.5 (mm2) | 1.6 to 1.7 mm | ||||
Search Hand Crimp Tool by Series：MX23A Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | Remarks | ||||
|---|---|---|---|---|---|---|---|
| Shape | Part Number | Type | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | ||
| Socket | M23S05K351 | AVSS | 0.5 to 1.25 mm2 | #20 to #16 equivalent | 1.6 to 2.2 mm | CT170-14B-MX23 | |
| M23S05K4F1 | AVSS | 0.3 mm2 | #22 equivalent | 1.4 to 1.5 mm | - | (Note) | |
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：MX34 Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | |||
|---|---|---|---|---|---|
| Shape | Part Number | Type | Cross-section Area of Conductor | Insulation Outer Dia. | |
| Pin | M34P75C4F1 | AVSS | 0.3 mm2 | 0.9 to 1.7 mm | CT150-2-MX34 |
| CHFUS | 0.22 to 0.35 mm2 | ||||
| M34P75C4F2 | AVSS, CAVS | 0.5 mm2 | 1.0 to 1.9 mm | CT150-2B-MX34 | |
| CHFUS | 0.5 to 0.75 mm2 | ||||
| M34P75C4F5 | CHFUS | 0.13 mm2 | 0.85 mm | - | |
| Socket | M34S75C4F1 | AVSS | 0.3 mm2 | 0.9 to 1.7 mm | CT150-2-MX34 |
| CHFUS | 0.22 to 0.35 mm2 | ||||
| M34S75C4F2 | AVSS, CAVS | 0.5 mm2 | 1.0 to 1.9 mm | CT150-2B-MX34 | |
| CHFS | 0.75 mm2 | ||||
| CHFUS | 0.5 to 0.75 mm2 | ||||
| M34S75C4F3 | CAN SD | 0.35 mm2 | 1.9 to 2.1 mm | CT150-2C-MX34 | |
| M34S75C4F4 | AVSS, CAVS | 0.85 mm2 | 1.7 to 1.9 mm | ||
Search Hand Crimp Tool by Series：MX44 Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | ||||
|---|---|---|---|---|---|---|
| Shape | Part Number | Type | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |
| Socket | M44S05K4F1 | AVSS, AESSX | 0.3 to 0.5 mm2 | #22 to #20 equivalent | 1.4 to 1.7 mm | CT150-2-MX44 |
Search Hand Crimp Tool by Series：MX47 Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | Remarks | |
|---|---|---|---|---|
| Shape | Part Number | |||
| Socket | M47S65H4FA | AVSS 0.3 (Φ 0.26/7) | (Note) | |
| AVSSB 0.3f (Φ 0.18/15) | ||||
| AVSS 0.5 (Φ 0.32/7) | ||||
| AVSSB 0.5f (Φ 0.18/20) | ||||
| M47S65H3FA | AVSSB 0.75f (Φ 0.18/30) | (Note) | ||
| AVSS 0.85 (Φ 0.24/19) | ||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：MX80 Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | |||
|---|---|---|---|---|---|
| Shape | Part Number | Type | Cross-section Area of Conductor | Insulation Outer Dia. | |
| Pin | MX80P08K3F1 | FLRY-A/B, AESSX | 0.75 to 1.0 mm2 | 1.4 to 2.1 mm | CT150-19C-MX80 |
| MX80P10K4F1 | FLRY-A/B, AESSX | 0.3 to 0.5 mm2 | 1.1 to 1.7 mm | CT150-19D-MX80 | |
| MX80P10K5F1 | 0.13 to 0.22 mm2 | 1.05 to (1.2) mm | CT150-19E-MX80 | ||
| Socket | MX80S08K3F1 | FLRY-A/B, AESSX | 0.75 to 1.0 mm2 | 1.4 to 2.1 mm | CT150-19C-MX80 |
| MX80S08K4F1 | FLRY-A/B, AESSX | 0.3 to 0.5 mm2 | 1.1 to 1.7 mm | CT150-19D-MX80 | |
| MX80S08K5F1 | 0.13 to 0.22 mm2 | 1.05 to 1.4 mm | CT150-19E-MX80 | ||
Search Hand Crimp Tool by Series：PS-LA Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | Remarks | ||
|---|---|---|---|---|---|
| Shape | Part Number | AWG No. | Insulation Outer Dia. | ||
| Socket | PS-SLA-C2-1-100 | #28 to #26 | 1.0 to 1.3 mm | CT150-2-PSSLA-B | |
| #26 to #24 | 1.2 to 1.6 mm | ||||
Search Hand Crimp Tool by Series：PS Series
| Contact | Applicable Electric Wire | Hand Crimping Tool | Remarks | |||
|---|---|---|---|---|---|---|
| Shape | Part Number | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | ||
| Socket | 030-51307-001 | 0.20 to 0.38 mm2 | #24 to #22 | 1.3 to 1.6 mm | CT150-2G-PSSF | |
| 030-51304-001 | 0.08 to 0.20 mm2 | #28 to #24 | 0.8 to 1.2 mm | CT150-2-PSSF | ||
Search Hand Crimp Tool by Series：QE series
| Contact Shape | Contact Part Number | Applicable Electric Wire | Hand Crimping Tool | Remarks | |||
|---|---|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | Body | Locator | |||
| Pin | 031-50565 | 0.5 to 1.3 mm2 | #20 to #16 | 2.4 mm max. | (Note) | (Note) | |
| 031-50566 | 0.2 to 0.5 mm2 | #24 to #20 | 2.6 mm max. | ||||
| 031-50567 | 0.2 to 0.5 mm2 | #24 to #20 | 1.6 mm max. | ||||
| Socket | 031-50675 | 0.5 to 1.3 mm2 | #20 to #16 | 2.4 mm max. | |||
| 031-50676 | 0.2 to 0.5 mm2 | #24 to #20 | 2.6 mm max. | ||||
| 031-50677 | 0.2 to 0.5 mm2 | #24 to #20 | 1.6 mm max. | ||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Series：QX series
| Contact Shape | Contact Part Number (Machine Contact) |
Applicable Electric Wire | Hand Crimping Tool | Remarks | |||
|---|---|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | Body | Locator | |||
| Pin | 030-50635 | 0.2 to 0.5 mm2 | #24 to #20 | 2.5 mm max. | (Note) | JP-D*C-20-20 | |
| 030-50641 | 0.05 to 0.13 mm2 | #30 to #26 | 2.5 mm max. | ||||
| Socket | 030-50634 | 0.2 to 0.5 mm2 | #24 to #20 | 2.5 mm max. | |||
| 030-50640 | 0.05 to 0.13 mm2 | #30 to #26 | 2.5 mm max. | ||||
| Contact Shape | Contact Part Number (Press Contact) |
Applicable Electric Wire | Hand Crimping Tool | Remarks | |||
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |||||
| Pin | D*C-20-18P-PKG100 | 0.3 to 0.8 mm2 | #22 to #18 | 2.5 mm max. | CT150-2B-D*C | - | |
| D*C-20-22P-PKG100 | 0.2 to 0.3 mm2 | #24 to #22 | 1.2 to 1.7 mm | CT150-2-D*C | - | ||
| D*C-20-24P-PKG100 | 0.08 to 0.2 mm2 | #28 to #24 | 1.0 to 1.5 mm | ||||
| 0.8 to 1.3 mm | (Note) | ||||||
| Socket | D*C-20-18S-PKG100 | 0.3 to 0.8 mm2 | #22 to #18 | 2.5 mm max. | CT150-2B-D*C | ||
| D*C-20-22S-PKG100 | 0.2 to 0.3 mm2 | #24 to #22 | 1.2 to 1.7 mm | CT150-2-D*C | |||
| D*C-20-24S-PKG100 | 0.08 to 0.2 mm2 | #28 to #24 | 1.0 to 1.5 mm | ||||
| 0.8 to 1.3 mm | (Note) | ||||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：030-*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool | Remarks | |||
|---|---|---|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | Body | Locator | ||||
| 030-1954-000 | Pin | D*U | #22*two pieces | (Note) | (Note) | |||
| #18 | ||||||||
| 030-1955-000 | Socket | D*U | #22*two pieces | (Note) | (Note) | |||
| #18 | ||||||||
| 030-50634 | Socket | D*U | #24 to #20 | (Note) | JP-D*C-20-20 | |||
| QX | 0.2 to 0.5 mm2 | #24 to #20 | 2.5 mm max. | |||||
| 030-50635 | Pin | D*U | #24 to #20 | (Note) | JP-D*C-20-20 | |||
| QX | 0.2 to 0.5 mm2 | #24 to #20 | 2.5 mm max. | |||||
| 030-50640 | Socket | D*U | #30 to #26 | (Note) | JP-D*C-20-20 | |||
| QX | 0.05 to 0.13 mm2 | #30 to #26 | 2.5 mm max. | |||||
| 030-50641 | Pin | D*U | #30 to #26 | (Note) | JP-D*C-20-20 | |||
| QX | 0.05 to 0.13 mm2 | #30 to #26 | 2.5 mm max. | |||||
| 030-51304-001 | Socket | PS | 0.08 to 0.20 mm2 | #28 to #24 | 0.8 to 1.2 mm | CT150-2-PSSF | - | |
| 030-51307-001 | Socket | PS | 0.20 to 0.38 mm2 | #24 to #22 | 1.3 to 1.6 mm | CT150-2G-PSSF | - | |
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：031-*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool | Remarks | |||
|---|---|---|---|---|---|---|---|---|
| Body | Locator | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | ||||
| 031-1007-054 | Socket | D*MA | #22*two pieces | (Note) | JP-D*MA-20-18 | |||
| #18 | ||||||||
| 031-50287 | Socket | D*MA | #30 to #26 | (Note) | JP-D*MA-20-20 | |||
| 031-50565 | Pin | QE | 0.5 to 1.3 mm2 | #20 to #16 | 2.4 mm max. | (Note) | (Note) | |
| 031-50566 | Pin | QE | 0.2 to 0.5 mm2 | #24 to #20 | 2.6 mm max. | (Note) | (Note) | |
| 031-50567 | Pin | QE | 0.2 to 0.5 mm2 | #24 to #20 | 1.6 mm max. | (Note) | (Note) | |
| 031-50675 | Socket | QE | 0.5 to 1.3 mm2 | #20 to #16 | 2.4 mm max. | (Note) | (Note) | |
| 031-50676 | Socket | QE | 0.2 to 0.5 mm2 | #24 to #20 | 2.6 mm max. | (Note) | (Note) | |
| 031-50677 | Socket | QE | 0.2 to 0.5 mm2 | #24 to #20 | 1.6 mm max. | (Note) | (Note) | |
| 031-50965-010 | Pin | JL02 | 0.2 to 0.5 mm2 | #24 to #20 | 3.7 mm max. | CT170-14-GTC | - | |
| 031-50966-010 | Pin | JL02 | 0.5 to 1.25 mm2 | #20 to #16 | 3.7 mm max. | CT170-14B-GTC | - | |
| 031-50967-010 | Pin | JL02 | 1.25 to 2.0 mm2 | #16 to #14 | 3.7 mm max. | CT170-14C-GTC | - | |
| 031-50968-010 | Socket | JL02 | 0.2 to 0.5 mm2 | #24 to #20 | 3.7 mm max. | CT170-14-GTC | - | |
| 031-50969-010 | Socket | JL02 | 0.5 to 1.25 mm2 | #20 to #16 | 3.7 mm max. | CT170-14B-GTC | - | |
| 031-50970-010 | Socket | JL02 | 1.25 to 2.0 mm2 | #16 to #14 | 3.7 mm max. | CT170-14C-GTC | - | |
| 031-5130-000 | Socket | D*MA | #24 to #20 | (Note) | JP-D*MA-20-20 | |||
| 031-51743-010 | Pin | JL02 | 0.08 to 0.13 mm2 | #28 to #26 | 1.1 to 1.5 mm | CT170-14D-GTC | - | |
| 031-51744-010 | Socket | JL02 | 0.08 to 0.13 mm2 | #28 to #26 | 1.1 to 1.5 mm | CT170-14D-GTC | - | |
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：330-*
| Contact part number | Contact Shape | Series | Hand crimping tool | Applicable electric wire | Remarks | |
|---|---|---|---|---|---|---|
| Body | Locator | AWG No. | ||||
| 330-50264 | Pin | D*MA | (Note) | JP-D*MA-20-20 | #30 to #26 | |
| 330-5291-055 | Pin | D*MA | (Note) | JP-D*MA-20-18 | #22*two pieces | |
| #18 | ||||||
| 330-5291-900 | Pin | D*MA | (Note) | JP-D*MA-20-20 | #24 to #20 | |
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：CONT-*
| Contact Part Number | Contact Shape | Series | Hand Crimping Tool | Applicable Electric Wire | Remarks | ||||
|---|---|---|---|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | Body | Locator | Stopper Cap | ||||
| CONT-JL05-08P-C1-10 | Pin | JL05 | 5.5 to 8 mm2 | #10 to #8 | 7.25 mm max. | (Note) | L-JL05-8 | (Note) | |
| 3.5 to 5.5 mm2 | #12 to #10 | 7.25 mm max. | (Note) | ||||||
| CONT-JL05-08P-C2-10 | Pin | JL05 | 5.5 to 8 mm2 | #10 to #8 | 7.25 mm max. | (Note) | L-JL05-8 | (Note) | |
| 3.5 to 5.5 mm2 | #12 to #10 | 7.25 mm max. | (Note) | ||||||
| CONT-JL05-08S-C1-10 | Socket | JL05 | 5.5 to 8 mm2 | #10 to #8 | 7.25 mm max. | (Note) | L-JL05-8 | (Note) | |
| 3.5 to 5.5 mm2 | #12 to #10 | 7.25 mm max. | (Note) | ||||||
| CONT-JL05-08S-C2-10 | Socket | JL05 | 5.5 to 8 mm2 | #10 to #8 | 7.25 mm max. | (Note) | L-JL05-8 | (Note) | |
| 3.5 to 5.5 mm2 | #12 to #10 | 7.25 mm max. | (Note) | ||||||
| CONT-JL05-12P-C1-10 | Pin | JL05 | 1.25 to 3.5 mm2 | #16 to #12 | 4.65 mm max. | (Note) | (Note) | - | |
| CONT-JL05-12S-C1-10 | Socket | JL05 | 1.25 to 3.5 mm2 | #16 to #12 | 4.65 mm max. | (Note) | (Note) | - | |
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：D*C-*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool | |||
|---|---|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |||||
| D*C-20-18P-PKG100 | Pin | D*U | #22 to #18 | 1.95 mm max. | CT150-2B-D*C | ||
| QX | 0.3 to 0.8 mm2 | #22 to #18 | 2.5 mm max. | CT150-2B-D*C | |||
| D*C-20-18S-PKG100 | Socket | D*U | #22 to #18 | 1.95 mm max. | CT150-2B-D*C | ||
| QX | 0.3 to 0.8 mm2 | #22 to #18 | 2.5 mm max. | CT150-2B-D*C | |||
| D*C-20-22P-PKG100 | Pin | D*U | #24 to #22 | 1.2 to 1.5 mm | CT150-2-D*C | ||
| QX | 0.2 to 0.3 mm2 | #24 to #22 | 1.2 to 1.7 mm | CT150-2-D*C | |||
| D*C-20-22S-PKG100 | Socket | D*U | #24 to #22 | 1.2 to 1.5 mm | CT150-2-D*C | ||
| QX | 0.2 to 0.3 mm2 | #24 to #22 | 1.2 to 1.7 mm | CT150-2-D*C | |||
| D*C-20-24P-PKG100 | Pin | D*U | #28 to #24 | 0.8 to 1.3 mm | (Note) | ||
| #28 to #24 | 1.0 to 1.5 mm | CT150-2-D*C | |||||
| QX | 0.08 to 0.2 mm2 | #28 to #24 | 0.8 to 1.3 mm | (Note) | |||
| 0.08 to 0.2 mm2 | #28 to #24 | 1.0 to 1.5 mm | CT150-2-D*C | ||||
| D*C-20-24S-PKG100 | Socket | D*U | #28 to #24 | 0.8 to 1.3 mm | (Note) | ||
| #28 to #24 | 1.0 to 1.5 mm | CT150-2-D*C | |||||
| QX | 0.08 to 0.2 mm2 | #28 to #24 | 0.8 to 1.3 mm | (Note) | |||
| 0.08 to 0.2 mm2 | #28 to #24 | 1.0 to 1.5 mm | CT150-2-D*C | ||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：D02-*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool | |
|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | ||||
| D02-22-22P-10000 | Pin | JB1 | #24 to #22 | 1.1 to 1.3 mm | CT150-2-D02 |
| D02-22-22P-PKG100 | Pin | D02-M15, JB1 |
#24 to #22 | 1.1 to 1.3 mm | CT150-2-D02 |
| D02-22-22S-10000 | Socket | JB1 | #24 to #22 | 1.1 to 1.3 mm | CT150-2-D02 |
| D02-22-22S-PKG100 | Socket | D02-M15, JB1 |
#24 to #22 | 1.1 to 1.3 mm | CT150-2-D02 |
| D02-22-26P-10000 | Pin | JB1 | #28 to #26 | 0.8 to 1.0 mm | CT150-2-D02 |
| D02-22-26P-PKG100 | Pin | D02-M15, JB1 |
#28 to #26 | 0.8 to 1.0 mm | CT150-2-D02 |
| D02-22-26S-10000 | Socket | JB1 | #28 to #26 | 0.8 to 1.0 mm | CT150-2-D02 |
| D02-22-26S-PKG100 | Socket | D02-M15, JB1 |
#28 to #26 | 0.8 to 1.0 mm | CT150-2-D02 |
Search Hand Crimp Tool by Contact Part Number：FI-*
| Contact Part Number | Contact Shape | Series | Hand Crimping Tool | Applicable Electric Wire | Remarks | |
|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||||
| FI-C3-A1-15000 | Socket | FI | CT150-4C-FI | #32 to #28 | 0.5 to 0.9 mm | |
| FI-RC3-1A-1E-15000 | FI-R | CT150-4C-FIR | #30 to #36 | 0.27 to 0.75 mm | Upper contact | |
| FI-RC3-1B-1E-15000 | Lower contact | |||||
| FI-XC3B-1-15000 | FI | CT150-4C-FIX | #36 to #30 | 0.45 to 0.75 mm | ||
Search Hand Crimp Tool by Contact Part Number：HB01*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool | Remarks | |
|---|---|---|---|---|---|---|
| AWG No. | Insulation outer dia. | |||||
| HB01P06K4P1 | Pin | HB01 | #24 to #22 | 0.9 to 1.5 mm | (Note) | |
| HB01P06K4P2 | #21 to #19 | 1.2 to 1.8 mm | ||||
| HB01P25H2P1 | #16 to #14 | 2.1 to 2.95 mm | (Note) | |||
| HB01P25H3P1 | #19 to #17 | 1.6 to 2.3 mm | ||||
| HB01S06K4P1 | Socket | #24 to #22 | 0.9 to 1.5 mm | (Note) | ||
| HB01S06K4P2 | #21 to #19 | 1.2 to 1.8 mm | ||||
| HB01S25H2P1 | #16 to #14 | 2.1 to 2.95 mm | (Note) | |||
| HB01S25H3P1 | #19 to #17 | 1.6 to 2.3 mm | ||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：HB03*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool | Remarks | |
|---|---|---|---|---|---|---|
| AWG No. | Insulation outer dia. | |||||
| HB03P12K5A | Pin | HB03 | #26 to #24 | 0.9 to 1.5 mm | (Note) | |
| HB03P12K6A | #30 to #28 | 0.6 to 1.2 mm | ||||
| HB03S12K5A | Socket | #26 to #24 | 0.9 to 1.5 mm | (Note) | ||
| HB03S12K6A | #30 to #28 | 0.6 to 1.2 mm | ||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：IL-AG5-*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool | |||
|---|---|---|---|---|---|---|---|
| Type | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | ||||
| IL-AG5-C1-5000 | Socket | IL-AG5, IL-AG9 | AV, AVS, AVSS | 0.3 to 0.5 mm2 | #22 to #20 equivalent | 1.4 to 2.4 mm | CT150-2-AG5 |
| AVS, AVSS | 0.85 mm2 | #18 equivalent | |||||
| IL-AG5-PC1-5000 | Pin | IL-AG5, IL-AG9 | AV, AVS, AVSS | 0.3 to 0.5 mm2 | #22 to #20 equivalent | 1.4 to 2.4 mm | CT150-2-AG5 |
| AVS, AVSS | 0.85 mm2 | #18 equivalent | |||||
Search Hand Crimp Tool by Contact Part Number：IL-C2-*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool |
||
|---|---|---|---|---|---|---|
| Cross-section Area of Conductor |
AWG No. | Insulation Outer Dia. |
||||
| IL-C2-10000 | Socket | IL | 0.08 to 0.13 mm2 | #28 to #26 | 1.0 to 1.3 mm | CT150-2-IL |
| 0.13 to 0.20 mm2 | #26 to #24 | 1.2 to 1.5 mm | CT150-2B-IL | |||
| 0.20 to 0.32 mm2 | #24 to #22 | 1.4 to 1.7 mm | CT150-2-IL | |||
| IL-C2-1-10000 | Socket | IL | 0.08 to 0.13 mm2 | #28 to #26 | 1.0 to 1.3 mm | CT150-2-IL |
| 0.13 to 0.20 mm2 | #26 to #24 | 1.2 to 1.5 mm | CT150-2B-IL | |||
| 0.20 to 0.32 mm2 | #24 to #22 | 1.4 to 1.7 mm | CT150-2-IL | |||
Search Hand Crimp Tool by Contact Part Number：IL-G-*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool |
|
|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. |
||||
| IL-G-C2-SC-10000 | Socket | IL-G | #28 to #26 | 1.0 to 1.3 mm | CT150-2-ILG |
| #26 to #24 | 1.2 to 1.5 mm | CT150-2B-ILG | |||
| #24 to #22 | 1.4 to 1.7 mm | CT150-2C-ILG | |||
Search Hand Crimp Tool by Contact Part Number：JN-*
| Contact part Number | Contact Shape | Series | Hand Crimping Tool | Applicable Electric Wire | Remarks | |
|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||||
| JN-18S-C1B-A1-PKG100 | Socket | JN14 | (Note) | #20 | 1.3 to 1.8 mm | |
| #18 | ||||||
| JN-24P-C1B-B1-10000 | Pin | JN14 | (Note) | #24 | 1.0 to 1.2 mm | |
| #22 | 1.1 to 1.2 mm | |||||
| JN-24P-C2B-B1-10000 | Pin | JN14 | (Note) | #28 | 0.7 to 1.0 mm | |
| #26 | 0.9 to 1.2 mm | |||||
| JN-24S-C1B-B1-10000 | Socket | JN14 | CT150-4-LY1 | #24 | 1.0 to 1.2 mm | |
| #22 | 1.1 to 1.2 mm | |||||
| JN-24S-C2B-B1-10000 | Socket | JN14 | (Note) | #28 | 0.7 to 1.0 mm | |
| #26 | 0.9 to 1.2 mm | |||||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：JN1-*
| Contact Part Number | Contact Shape | Series | Hand Crimping Tool | Applicable Electric Wire | Remarks | |
|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||||
| JN1-22-20P-R-10000 | Pin | JB10 | CT150-2C-JN2V | #21, #20 | ||
| JN1-22-20P-R-PKG100 | Pin | |||||
| JN1/JN2 | CT150-2-JN1-D | #21, #20 | 1.3 to 1.5 mm | |||
| JN1-22-20S-R-PKG100 | Socket | |||||
| JN1-22-22P-10000 | Pin | JB10 | CT150-2B-JN2V | #24, #22 | ||
| JN1-22-22P-PKG100 | Pin | |||||
| JN1/JN2 | CT150-2-JN1-D | #25 | 0.8 to 1.0 mm | |||
| CT150-2-JN1-E | #23, #21 | 1.0 to 1.5 mm | ||||
| CT150-2-JN1-B | #24, #22 | 1.0 to 1.3 mm | ||||
| JN1-22-22S-PKG100 | Socket | JN1/JN2 | CT150-2-JN1-D | #25 | 0.8 to 1.0 mm | |
| CT150-2-JN1-E | #23, #21 | 1.0 to 1.5 mm | ||||
| CT150-2-JN1-B | #24, #22 | 1.0 to 1.3 mm | ||||
| JN1-22-26P-10000 | Pin | JB10 | CT150-2-JN2V | #28, #26 | ||
| JN1-22-26P-PKG100 | Pin | |||||
| JN1/JN2 | CT150-2-JN1-B | #28, #26 | 0.8 to 1.0 mm | |||
| JN1-22-26S-PKG100 | Socket | |||||
Search Hand Crimp Tool by Contact Part Number：JN2V-*
| Contact Part Number | Contact Size | Contact Shape | Series | Hand Crimping Tool | Applicable Wire Size | Remarks |
|---|---|---|---|---|---|---|
| JN2V-22-20S-10000 | #22 | Socket | JB10 JN1V/JN2V |
(Note) | AWG #21, #20 | |
| JN2V-22-22S-10000 | #22 | Socket | JB10 JN1V/JN2V |
(Note) | AWG #24, #22 | |
| (Note) | AWG #21 | |||||
| JN2V-22-26S-10000 | #22 | Socket | JB10 JN1V/JN2V |
(Note) | AWG #28, #26 |
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：JN6-*
| Contact Part Number | Contact Shape | Series | Hand Crimping Tool | Applicable Electric Wire | Remarks | |
|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||||
| JN6-24P-C1-10000 | Pin | JN6 | (Note) | #24 to #22 | 1.0 to 1.3 mm | |
| JN6-24P-C2-10000 | Pin | JN6 | (Note) | #28 to #26 | 0.7 to 1.2 mm | |
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：LY10-*
| Contact Part Number | Contact Shape | Series | Hand Crimping Tool | Applicable Electric Wire | Remarks | |
|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||||
| LY10-C1-5-10000 | Socket | LY | CT150-4-LY1 | #26 to #22 | 0.8 to 1.3 mm | |
| LY10-C1-A1-10000 | Socket | JN6 | CT150-4-LY1 | #26 to #22 | 1.0 to 1.3 mm | |
| LY | #26 to #22 | 0.8 to 1.3 mm | ||||
| LY10-C2-5-10000 | Socket | LY | CT150-4-LY2 | #30 to #26 | 0.7 to 1.2 mm | |
| LY10-C2-A1-10000 | Socket | JN6 | CT150-4-LY2 | #28 to #26 | 0.7 to 1.2 mm | |
| LY | #30 to #26 | 0.7 to 1.2 mm | ||||
Search Hand Crimp Tool by Contact Part Number：M*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool | Remarks | |||
|---|---|---|---|---|---|---|---|---|
| Type | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |||||
| M17S03K911 | Socket | MX17 | AVSS fTA | 0.5 mm2 | #20 equivalent | 1.7 to 1.9 mm | (Note) | |
| AVSS CAVS |
0.3 to 0.5 mm2 | #22 to #20 equivalent |
1.4 to 1.9 mm | |||||
| M17S03K951 | Socket | MX17 | AVSS fTA | 0.5 mm2 | #20 equivalent | 1.7 to 1.9 mm | (Note) | |
| AVSS CAVS |
0.3 to 0.5 mm2 | #22 to #20 equivalent |
1.4 to 1.9 mm | |||||
| M23S05K351 | Socket | MX23A | AVSS | 0.5 to 1.25 mm2 | #20 to #16 equivalent |
1.6 to 2.3 mm | CT170-14B-MX23 | |
| AVS | 0.5f to 0.75f mm2 | #20 to #18 equivalent |
||||||
| M23S05K4F1 | Socket | MX23A | AVSS | 0.3 mm2 | #22 equivalent | 1.4 to 1.5 mm | - | (Note) |
| M34P75C4F1 | Pin | MX34 | AVSS | 0.3 mm2 | 0.9 to 1.7 mm | CT150-2-MX34 | ||
| CHFUS | 0.22 to 0.35 mm2 | |||||||
| M34P75C4F2 | Pin | MX34 | AVSS, CAVS | 0.5 mm2 | 1.0 to 1.9 mm | CT150-2B-MX34 | ||
| CHFS | 0.5 to 0.75 mm2 | |||||||
| M34P75C4F5 | Pin | MX34 | CHFUS | 0.13 mm2 | 1.0 to 1.9 mm | - | ||
| M34S75C4F1 | Socket | MX34 | AVSS | 0.3 mm2 | 0.9 to 1.7 mm | CT150-2-MX34 | ||
| CHFUS | 0.22 to 0.35 mm2 | |||||||
| M34S75C4F2 | Socket | MX34 | AVSS, CAVS |
0.5 mm2 | 1.0 to 1.9 mm | CT150-2B-MX34 | ||
| CHFS | 0.75 mm2 | |||||||
| CHFUS | 0.5 to 0.75 mm2 | |||||||
| M34S75C4F3 | Socket | MX34 | CAN SD | 0.35 mm2 | 1.9 to 2.1 mm | CT150-2C-MX34 | ||
| M34S75C4F4 | Socket | MX34 | AVSS, CAVS |
0.85 mm2 | 1.7 to 1.9 mm | |||
| M44S05K4F1 | Socket | MX44 | AVSS AESSX |
0.3 to 0.5 mm2 | #22 to #20 equivalent |
1.4 to 1.7 mm | CT150-2-MX44 | |
| M47S65H4FA | Socket | MX47 | AVSS 0.3 (Φ 0.26/7) | (Note) | ||||
| AVSSB 0.3f (Φ 0.18/15) | ||||||||
| AVSS 0.5 (Φ 0.32/7) | ||||||||
| AVSSB 0.5f (Φ 0.18/20) | ||||||||
| M47S65H3FA | Socket | MX47 | AVSSB 0.75f (Φ 0.18/30) | (Note) | ||||
| AVSS 0.85 (Φ 0.24/19) | ||||||||
| MX10-SG-PC2-1E-5000 | Pin | MX17 | AVS | 0.3 mm2 | #22 equivalent | 1.9 mm | (Note) | |
| AVSS | 0.3 to 0.85 mm2 | #22 to #18 equivalent |
1.4 to 1.9 mm | |||||
| AVSS fTA AVSSX fTA |
0.5 to 0.75 mm2 | #20 to #19 equivalent |
1.6 to 1.9 mm | |||||
| MX19P10K451 | Pin | MX19 | CAVS | 0.3 mm2 | #22 equivalent | 1.4 to 1.5 mm | CT150-4C-MX19 | |
| CATL22 | 1.4 to 1.5 mm | |||||||
| CAVS | 0.5 mm2 | #20 equivalent | 1.6 to 1.7 mm | |||||
| AVSS | 0.5 mm2 | #20 equivalent | 1.6 to 1.7 mm | |||||
| MX19S10K451 | Socket | CAVS | 0.3 mm2 | #22 equivalent | 1.4 to 1.5 mm | |||
| CATL22 | 1.4 to 1.5 mm | |||||||
| CAVS | 0.5 mm2 | #20 equivalent | 1.6 to 1.7 mm | |||||
| AVSS | 0.5 mm2 | #20 equivalent | 1.6 to 1.7 mm | |||||
| MX80P08K3F1 | Pin | MX80 | FLRY-A/B, AESSX | 0.75 to 1.0 mm2 | 1.4 to 2.1 mm | CT150-19C-MX80 | ||
| MX80P10K4F1 | Pin | MX80 | FLRY-A/B, AESSX | 0.3 to 0.5 mm2 | 1.1 to 1.7 mm | CT150-19D-MX80 | ||
| MX80P10K5F1 | Pin | MX80 | 0.13 to 0.22 mm2 | 1.05 to (1.2) mm | CT150-19E-MX80 | |||
| MX80S08K3F1 | Socket | MX80 | FLRY-A/B, AESSX | 0.75 to 1.0 mm2 | 1.4 to 2.1 mm | CT150-19C-MX80 | ||
| MX80S08K4F1 | Socket | MX80 | FLRY-A/B, AESSX | 0.3 to 0.5 mm2 | 1.1 to 1.7 mm | CT150-19D-MX80 | ||
| MX80S08K5F1 | Socket | MX80 | 0.13 to 0.22 mm2 | 1.05 to 1.4 mm | CT150-19E-MX80 | |||
(Note)Please contact JAE for detail.
Search Hand Crimp Tool by Contact Part Number：PS-SLA*
| Contact Part Number | Contact Shape | Series | Hand Crimping Tool | Applicable Electric Wire | Remarks | |
|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||||
| PS-SLA-C2-1-100 | Socket | PS-LA | CT150-2-PSSLA-B | #28 to #26 | 1.0 to 1.3 mm | |
| #26 to #24 | 1.2 to 1.6 mm | |||||
Search Hand Crimp Tool by Contact Part Number：ST*
| Contact Part Number | Contact Shape | Series | Applicable Electric Wire | Hand Crimping Tool | ||
|---|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | ||||
| ST-GTC-16P1-3500 | Pin | JL02 | 0.2 to 0.5 mm2 | #24 to #20 | 3.7 mm max. | CT170-14-GTC |
| ST-GTC-16P2-3500 | Pin | JL02 | 0.5 to 1.25 mm2 | #20 to #16 | 3.7 mm max. | CT170-14B-GTC |
| ST-GTC-16P3-3500 | Pin | JL02 | 1.25 to 2.0 mm2 | #16 to #14 | 3.7 mm max. | CT170-14C-GTC |
| ST-GTC-16S1-3500 | Socket | JL02 | 0.2 to 0.5 mm2 | #24 to #20 | 3.7 mm max. | CT170-14-GTC |
| ST-GTC-16S2-3500 | Socket | JL02 | 0.5 to 1.25 mm2 | #20 to #16 | 3.7 mm max. | CT170-14B-GTC |
| ST-GTC-16S3-3500 | Socket | JL02 | 1.25 to 2.0 mm2 | #16 to #14 | 3.7 mm max. | CT170-14C-GTC |
| ST-JL05-16P-C1-100 | Pin | JL05 | 1.25 to 2.0 mm2 | #16 to #14 | 3.8 mm max. | CT170-14C-JL05 |
| ST-JL05-16P-C1-3500 | ||||||
| ST-JL05-16P-C2-100 | Pin | JL05 | 0.5 to 1.25 mm2 | #20 to #16 | 3.8 mm max. | CT170-14B-JL05 |
| ST-JL05-16P-C2-3500 | ||||||
| ST-JL05-16P-C3-100 | Pin | JL05 | 0.2 to 0.5 mm2 | #24 to #20 | 3.8 mm max. | CT170-14-JL05 |
| ST-JL05-16P-C3-3500 | ||||||
| ST-JL05-16S-C1-100 | Socket | JL05 | 1.25 to 2.0 mm2 | #16 to #14 | 3.8 mm max. | CT170-14C-JL05 |
| ST-JL05-16S-C1-3500 | ||||||
| ST-JL05-16S-C2-100 | Socket | JL05 | 0.5 to 1.25 mm2 | #20 to #16 | 3.8 mm max. | CT170-14B-JL05 |
| ST-JL05-16S-C2-3500 | ||||||
| ST-JL05-16S-C3-100 | Socket | JL05 | 0.2 to 0.5 mm2 | #24 to #20 | 3.8 mm max. | CT170-14-JL05 |
| ST-JL05-16S-C3-3500 | ||||||
| ST-JL05-20P-C1-100 | Pin | JL05 | 0.3 to 0.8 mm2 | #22 to #18 | 2.3 mm max. | CT150-2C-JL05 |
| ST-JL05-20P-C1-10000 | ||||||
| ST-JL05-20P-C2-100 | Pin | JL05 | 0.13 to 0.3 mm2 | #26 to #22 | 1.2 to 1.7 mm | CT150-2B-JL05 |
| ST-JL05-20P-C2-10000 | ||||||
| ST-JL05-20S-C1-100 | Socket | JL05 | 0.3 to 0.8 mm2 | #22 to #18 | 2.3 mm max. | CT150-2C-JL05 |
| ST-JL05-20S-C1-10000 | ||||||
| ST-JL05-20S-C2-100 | Socket | JL05 | 0.13 to 0.3 mm2 | #26 to #22 | 1.2 to 1.7 mm | CT150-2B-JL05 |
| ST-JL05-20S-C2-10000 | ||||||
| ST-JN5-S-C1B-2500-(A534G) | Socket | JN6 | #20 to #18 | 1.3 to 1.8 mm | (Note) | |
(Note)Please contact JAE for detail.
Search Contacts by Crimp Tool Description：CT150-19*-MX80
| Hand Crimping Tool | Contact Part Number | Contact Shape | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|---|
| Type | Cross-section Area of Conductor | Insulation Outer Dia. | ||||
| CT150-19C-MX80 | MX80P08K3F1 | Pin | MX80 | FLRY-A/B, AESSX | 0.75 to 1.0 mm2 | 1.4 to 2.1 mm |
| MX80S08K3F1 | Socket | |||||
| CT150-19D-MX80 | MX80P10K4F1 | Pin | MX80 | FLRY-A/B, AESSX | 0.3 to 0.5 mm2 | 1.1 to 1.7 mm |
| MX80S08K4F1 | Socket | |||||
| CT150-19E-MX80 | MX80P10K4F1 | Pin | MX80 | 0.13 to 0.22 mm2 | 1.05 to (1.2) mm | |
| MX80S08K5F1 | Socket | 1.05 to 1.4 mm | ||||
Search Contacts by Crimp Tool Description：CT150-2-AG5
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | |||
|---|---|---|---|---|---|---|
| Type | Cross-section Area of Conductor |
AWG No. | Insulation Outer Dia. | |||
| CT150-2-AG5 | IL-AG5-C1-5000 | IL-AG5, IL-AG9 |
AVS, AVS, AVSS |
0.3 to 0.5 mm2 | #22 to #20 equivalent |
1.4 to 2.4 mm |
| AVSS, AVSS |
0.85 mm2 | #18 equivalent |
||||
| IL-AG5-PC1-5000 | IL-AG5, IL-AG9 |
AVS, AVSS, AVSS |
0.3 to 0.5 mm2 | #22 to #20 equivalent |
1.4 to 2.4 mm | |
| AVSS, AVSS |
0.85 mm2 | #18 equivalent |
||||
Search Contacts by Crimp Tool Description：CT150-2-D*C
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |||
| CT150-2-D*C | D*C-20-22P-PKG100 | D*U | #24 to #22 | 1.2 to 1.5 mm | |
| QX | 0.2 to 0.3 mm2 | #24 to #22 | 1.2 to 1.7 mm | ||
| D*C-20-22S-PKG100 | D*U | #24 to #22 | 1.2 to 1.5 mm | ||
| QX | 0.2 to 0.3 mm2 | #24 to #22 | 1.2 to 1.7 mm | ||
| D*C-20-24P-PKG100 | D*U | #28 to #24 | 1.0 to 1.5 mm | ||
| QX | 0.08 to 0.2 mm2 | #28 to #24 | 1.0 to 1.5 mm | ||
| D*C-20-24S-PKG100 | D*U | #28 to #24 | 1.0 to 1.5 mm | ||
| QX | 0.08 to 0.2 mm2 | #28 to #24 | 1.0 to 1.5 mm | ||
Search Contacts by Crimp Tool Description：CT150-2-D02
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | |
|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||
| CT150-2-D02 | D02-22-22P-10000 | JB1 | #24 to #22 | 1.1 to 1.3 mm |
| D02-22-22P-PKG100 | D02-M15, JB1 |
#24 to #22 | 1.1 to 1.3 mm | |
| D02-22-22S-10000 | JB1 | #24 to #22 | 1.1 to 1.3 mm | |
| D02-22-22S-PKG100 | D02-M15, JB1 |
#24 to #22 | 1.1 to 1.3 mm | |
| D02-22-26P-10000 | JB1 | #28 to #26 | 0.8 to 1.0 mm | |
| D02-22-26P-PKG100 | D02-M15, JB1 |
#28 to #26 | 0.8 to 1.0 mm | |
| D02-22-26S-10000 | JB1 | #28 to #26 | 0.8 to 1.0 mm | |
| D02-22-26S-PKG100 | D02-M15, JB1 |
#28 to #26 | 0.8 to 1.0 mm | |
Search Contacts by Crimp Tool Description：CT150-2-IL
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | Remarks | ||
|---|---|---|---|---|---|---|
| Cross-section Area of Conductor |
AWG No. | Insulation Outer Dia. | ||||
| CT150-2-IL | IL-C2-10000 | IL | 0.08 to 0.13 mm2 | #28 to #26 | 1.0 to 1.3 mm | Tin plating |
| 0.20 to 0.32 mm2 | #24 to #22 | 1.4 to 1.7 mm | ||||
| IL-C2-1-10000 | 0.08 to 0.13 mm2 | #28 to #26 | 1.0 to 1.3 mm | Partial Gold plating | ||
| 0.20 to 0.32 mm2 | #24 to #22 | 1.4 to 1.7 mm | ||||
Search Contacts by Crimp Tool Description：CT150-2-ILG
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Cross-section Area of Conductor |
AWG No. | Insulation Outer Dia. | |||
| CT150-2-ILG | IL-G-C2-SC-10000 | IL-G | #28 to #26 | 1.0 to 1.3 mm | |
Search Contacts by Crimp Tool Description：CT150-2-JN1-B
| Hand Crimping Tool | Series | Contact Size | Applicable Connector No. of Position | Contact Part Number | Contact Type | Applicable Electric Wire | |||
|---|---|---|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | Cross-section Area of Conductor | |||||||
| CT150-2-JN1-B | JN1/JN2 | #22 | 10 pos. | JN1-22-22P-PKG100 | Loose piece | #24, #22 | 1.0 to 1.3 mm | 0.2, 0.3 mm2 | |
| JN1-22-22S-PKG100 | Loose piece | #24, #22 | 1.0 to 1.3 mm | 0.2, 0.3 mm2 | |||||
| JN1-22-26P-PKG100 | Loose piece | #28, #26 | 0.8 to 1.0 mm | 0.08 , 0.13 mm2 | |||||
| JN1-22-26S-PKG100 | Loose piece | #28, #26 | 0.8 to 1.0 mm | 0.08 , 0.13 mm2 | |||||
Search Contacts by Crimp Tool Description：CT150-2-JN1-D
| Hand Crimping Tool | Series | Contact Size | Applicable Connector No. of Position | Contact Part Number | Contact Type | Applicable Electric Wire | |||
|---|---|---|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | Cross-section Area of Conductor | |||||||
| CT150-2-JN1-D | JN1/JN2 | #22 | 10 pos. | JN1-22-20P-R-PKG100 | Loose piece | #21, #20 | 1.3 to 1.5 mm | ||
| JN1-22-20S-R-PKG100 | Loose piece | #21, #20 | 1.3 to 1.5 mm | ||||||
| JN1-22-22P-PKG100 | Loose piece | #25 | 0.8 to 1.0 mm | ||||||
| JN1-22-22S-PKG100 | Loose piece | #25 | 0.8 to 1.0 mm | ||||||
Search Contacts by Crimp Tool Description：CT150-2-JN1-E
| Hand Crimping Tool | Series | Contact Size | Applicable Connector No. of Position | Contact Part Number | Contact Type | Applicable Electric Wire | |||
|---|---|---|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | Cross-section Area of Conductor | |||||||
| CT150-2-JN1-B | JN1/JN2 | #22 | 10 pos. | JN1-22-22P-PKG100 | Loose piece | #23, #21 | 1.0 to 1.5 mm | 0.25, 0.4 mm2 | |
| JN1-22-22S-PKG100 | Loose piece | #23, #21 | 1.0 to 1.5 mm | 0.25, 0.4 mm2 | |||||
Search Contacts by Crimp Tool Description：CT150-2-MX34
equivalent
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Type | Cross-section Area of Conductor |
Insulation Outer Dia. | |||
| CT150-2-MX34 | M34P75C4F1 | MX34 | AVSS | 0.3 mm2 | 0.9 to 1.7 mm |
| CHFUS | 0.22 to 0.35 mm2 | ||||
| M34S75C4F1 | AVSS | 0.3 mm2 | 0.9 to 1.7 mm | ||
| CHFUS | 0.22 to 0.35 mm2 | ||||
Search Contacts by Crimp Tool Description：CT150-2-MX44
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | |||
|---|---|---|---|---|---|---|
| Type | Cross-section Area of Conductor |
AWG No. | Insulation Outer Dia. | |||
| CT150-2-MX44 | M44S05K4F1 | MX44 | AVSSS, AESSX |
0.3 to 0.5 mm2 | #22 to #20 equivalent |
1.4 to 1.7 mm |
Search Contacts by Crimp Tool Description：CT150-2-PSSF
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Cross-section Area of Conductor |
AWG No. | Insulation Outer Dia. | |||
| CT150-2-PSSF | 030-51304-001 | PS | 0.08 to 0.20 mm2 | #28 to #24 | 0.8 to 1.2 mm |
Search Contacts by Crimp Tool Description：CT150-2-PSSLA-B
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | |
|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||
| CT150-2-PSSLA-B | PS-SLA-C2-1-100 | PS-LA | #28 to #26 | 1.0 to 1.3 mm |
| #26 to #24 | 1.2 to 1.6 mm | |||
Search Contacts by Crimp Tool Description：CT150-2B-D*C
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Cross-section Area of Conductor |
AWG No. | Insulation Outer Dia. | |||
| CT150-2B-D*C | D*C-20-18P-PKG100 | D*U | #22 to #18 | 1.95 mm max. | |
| QX | 0.3 to 0.8 mm2 | #22 to #18 | 2.5 mm max. | ||
| D*C-20-18S-PKG100 | D*U | #22 to #18 | 1.95 mm max. | ||
| QX | 0.3 to 0.8 mm2 | #22 to #18 | 2.5 mm max. | ||
Search Contacts by Crimp Tool Description：CT150-2B-IL
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | Remarks | ||
|---|---|---|---|---|---|---|
| Cross-section area of conductor |
AWG No. | Insulation outer dia. | ||||
| CT150-2B-IL | IL-C2-10000 | IL | 0.13 to 0.20 mm2 | #26 to #24 | 1.2 to 1.5 mm | Tin plating |
| IL-C2-1-10000 | Partial Gold plating | |||||
Search Contacts by Crimp Tool Description：CT150-2B-ILG
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Cross-section Area of Conductor |
AWG No. | Insulation Outer Dia. | |||
| CT150-2B-ILG | IL-G-C2-SC-10000 | IL-G | #26 to #24 | 1.2 to 1.5 mm | |
Search Contacts by Crimp Tool Description：CT150-2B-JL05
| Hand Crimping Tool | Series | Contact Size | Applicable Contact Arrangement | Contact Part Number | Contact Type | Applicable Electric Wire | ||
|---|---|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | Cross-section Area of Conductor | ||||||
| CT150-2B-JL05 | JL05 | #20 | 18-19A, 20-30A, 28-36B, 24-52A, 28-73A | ST-JL05-20P-C2-100 | Loose piece | #26 to #22 | 1.2 to 1.7 mm | 00.13 to 0.3 mm2 |
| ST-JL05-20P-C2-10000 | Strip | |||||||
| ST-JL05-20S-C2-100 | Loose piece | |||||||
| ST-JL05-20S-C2-10000 | Strip | |||||||
Search Contacts by Crimp Tool Description：CT150-2B-MX34
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Type | Cross-section Area of Conductor |
Insulation Outer Dia. | |||
| CT150-2B-MX34 | M34P75C4F2 | MX34 | AVSSS, CAVS |
0.5 mm2 | 1.0 to 1.9 mm |
| CHFUS | 0.5 to 0.75 mm2 | ||||
| M34S75C4F2 | AVSSS, CAVS |
0.5 mm2 | 1.0 to 1.9 mm | ||
| CHFS | 0.75 mm2 | ||||
| CHFUS | 0.5 to 0.75 mm2 | ||||
Search Contacts by Crimp Tool Description：CT150-2C-ILG
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | |
|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||
| CT150-2C-ILG | IL-G-C2-SC-10000 | IL-G | #24 to #22 | 1.4 to 17 mm |
Search Contacts by Crimp Tool Description：CT150-2C-JL05
| Hand Crimping Tool | Series | Contact Size | Applicable Contact Arrangement | Contact Part Number | Contact Type | Applicable Electric Wire | |||
|---|---|---|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | Cross-section Area of Conductor | |||||||
| CT150-2C-JL05 | JL05 | #20 | 18-19A, 20-30A, 28-36B, 24-52A, 28-73A | ST-JL05-20P-C1-100 | Loose piece | #22 to #18 | 2.3 mm mzx. | 0.3 to 0.8 mm2 | |
| ST-JL05-20P-C1-10000 | Strip | ||||||||
| ST-JL05-20S-C1-100 | Loose piece | ||||||||
| ST-JL05-20S-C1-10000 | Strip | ||||||||
Search Contacts by Crimp Tool Description：CT150-2C-MX34
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | |||
|---|---|---|---|---|---|---|
| Type | Cross-section Area of Conductor |
AWG No. | Insulation Outer Dia. | |||
| CT150-2C-MX34 | M34S75C4F3 | MX34 | CAN SD | 0.35 mm2 | #22 equivalent |
1.9 to 2.1 mm |
| M34S75C4F4 | AVSS, CAVS | 0.85 mm2 | #18 equivalent |
1.7 to 1.9 mm | ||
Search Contacts by Crimp Tool Description：CT150-2G-PSSF
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Cross-section area of conductor |
AWG No. | Insulation outer dia. | |||
| CT150-2G-PSSF | 030-51307-001 | PS | 0.20 to 0.38 mm2 | #24 to #22 | 1.3 to 1.6 mm |
Search Contacts by Crimp Tool Description：CT150-4-LY1
| Hand Crimping Tool | Series | Contact Size | Applicable connector No. of Position | ontact Part Number | Contact Type | Applicable Electric Wire | ||
|---|---|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | ross-section Area of Conductor | ||||||
| CT150-4-LY1 | JN14 | #24 | 2, 9 pos. | JN-24S-C1B-B1-10000 | Strip | #24 | 1.0 to 1.2 mm | 0.2 mm2 |
| #22 | 1.1 to 1.2 mm | 0.3 mm2 | ||||||
| LY | #24 | LY10-C1-5-10000 | Strip | #26, #22 | 0.8 to 1.3 mm | 0.13, 0.3 mm2 | ||
| JN6 | #24 | 2, 7 pos. | LY10-C1-A1-10000 | Strip | #24, #22 | 0.8 to 1.3 mm | 0.2, 0.3 mm2 | |
| LY | #24 | #26, #22 | 0.13, 0.3 mm2 | |||||
Search Contacts by Crimp Tool Description：CT150-4-LY2
| Hand Crimping Tool | Series | Contact Size | Applicable connector No. of Position | Contact Part Number | Contact Type | Applicable Electric Wire | ||
|---|---|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | Cross-section Area of Conductor | ||||||
| CT150-4-LY2 | LY | #24 | LY10-C2-5-10000 | Strip | #30 to #26 | 0.7 to 1.2 mm | 0.05 to 0.13 mm2 | |
| JN6 | #24 | 2, 7 pos. | LY10-C2-A1-10000 | Strip | #28 to #26 | 0.7 to 1.2 mm | 0.05 to 0.13 mm2 | |
| LY | #24 | #30 to #26 | ||||||
Search Contacts by Crimp Tool Description：CT150-4C-FI
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | |
|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||
| CT150-4C-FI | FI-C3-A1-15000 | FI | #32 to #28 | 0.5 to 0.9 mm |
Search Contacts by Crimp Tool Description：CT150-4C-FIR
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | Remarks | |
|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | ||||
| CT150-4C-FIR | FI-RC3-1A-1E-15000 | FI-R | #36 to #30 | 0.27 to 0.75 mm | Upper contact |
| FI-RC3-1B-1E-15000 | Lower contact | ||||
Search Contacts by Crimp Tool Description：CT150-4C-FIX
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | |
|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | |||
| CT150-4C-FIX | FI-XC3B-1-15000 | FI-X | #36 to #30 | 0.45 to 0.75 mm |
Search Contacts by Crimp Tool Description：CT150-4C-MX19
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | Remarks | |
|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | ||||
| CT150-4C-MX19 | MX19P10K451 | MX19 | #22 equivalent | 1.4 to 1.5 mm | CAVS0.3 (mm2) |
| 1.4 to 1.5 mm | CATL22 | ||||
| #20 equivalent | 1.6 to 1.7 mm | CAVS0.5 (mm2) | |||
| #20 equivalent | 1.6 to 1.7 mm | AVSS0.5 (mm2) | |||
| MX19S10K451 | #22 equivalent | 1.4 to 1.5 mm | CAVS0.3 (mm2) | ||
| 1.4 to 1.5 mm | CATL22 | ||||
| #20 equivalent | 1.6 to 1.7 mm | CAVS0.5 (mm2) | |||
| #20 equivalent | 1.6 to 1.7 mm | AVSS0.5 (mm2) | |||
Search Contacts by Crimp Tool Description：CT170-14-GTC
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |||
| CT170-14-GTC | 031-50965-010 | JL02 | 0.2 to 0.5 mm2 | #24 to #20 | 3.7 mm max. |
| 031-50968-010 | |||||
| ST-GTC-16P1-3500 | |||||
| ST-GTC-16S1-3500 | |||||
Search Contacts by Crimp Tool Description：CT170-14-JL05
| Hand Crimping Tool | Series | Contact Size | Applicable Contact Arrangement | Contact Part Number | Contact Type | Applicable Electric Wire | ||
|---|---|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | Cross-section Area of Conductor | ||||||
| CT170-14-JL05 | JL05 | #16 | 18-1, 20-29, 22-14, 24-28, 28-36B, 28-21 | ST-JL05-16P-C3-100 | Loose piece | #24 to #20 | 3.8 mm max. | 0.2 to 0.5 mm2 |
| ST-JL05-16P-C3-3500 | Strip | |||||||
| ST-JL05-16S-C3-100 | Loose piece | |||||||
| ST-JL05-16S-C3-3500 | Strip | |||||||
Search Contacts by Crimp Tool Description：CT170-14B-GTC
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |||
| CT170-14B-GTC | 031-50966-010 | JL02 | 0.5 to 1.25 mm2 | #20 to #16 | 3.7 mm max. |
| 031-50969-0100 | |||||
| ST-GTC-16P2-3500 | |||||
| ST-GTC-16S2-3500 | |||||
Search Contacts by Crimp Tool Description：CT170-14B-JL05
| Hand Crimping Tool | Series | Contact Size | Applicable connector No. of Position | Contact Part Number | Contact Type | Applicable Electric Wire | ||
|---|---|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | Cross-section Area of Conductor | ||||||
| CT170-14B-JL05 | JL05 | #16 | 18-1, 20-29, 22-14, 24-28, 28-36B, 28-21 | ST-JL05-16P-C2-100 | Loose piece | #20 to #16 | 3.8 mm max. | 0.5 to 1.25 mm2 |
| ST-JL05-16P-C2-3500 | Strip | |||||||
| ST-JL05-16S-C2-100 | Loose piece | |||||||
| ST-JL05-16S-C2-3500 | Strip | |||||||
Search Contacts by Crimp Tool Description：CT170-14B-GTC
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | |||
|---|---|---|---|---|---|---|
| Type | Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |||
| CT170-14B-MX23 | M23S05K351 | MX23A | AVSS | 0.5 to 1.25 mm2 | #20 to #16 equivalent | 1.6 to 2.3 mm |
| AVS | 0.5f to 0.75f mm2 | #20 to #18 equivalent | ||||
Search Contacts by Crimp Tool Description：CT170-14C-GTC
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |||
| CT170-14C-GTC | 031-50967-010 | JL02 | 1.25 to 2.0 mm2 | #16 to #14 | 3.7 mm max. |
| 031-50970-010 | |||||
| ST-GTC-16P3-3500 | |||||
| ST-GTC-16S3-3500 | |||||
Search Contacts by Crimp Tool Description：CT170-14C-JL05
| Hand Crimping Tool | Series | Contact Size | Applicable connector No. of Position | Contact Part Number | Contact Type | Applicable Electric Wire | ||
|---|---|---|---|---|---|---|---|---|
| AWG No. | Insulation Outer Dia. | Cross-section Area of Conductor | ||||||
| CT170-14C-JL05 | JL05 | #16 | 18-1, 20-29, 22-14, 24-28, 28-36B, 28-21 | ST-JL05-16P-C1-100 | Loose piece | #16 to #14 | 3.8 mm max. | 1.25 to 2.0 mm2 |
| ST-JL05-16P-C1-3500 | Strip | |||||||
| ST-JL05-16S-C1-100 | Loose piece | |||||||
| ST-JL05-16S-C1-3500 | Strip | |||||||
Search Contacts by Crimp Tool Description：CT170-14D-GTC
| Hand Crimping Tool | Contact Part Number | Series | Applicable Electric Wire | ||
|---|---|---|---|---|---|
| Cross-section Area of Conductor | AWG No. | Insulation Outer Dia. | |||
| CT170-14D-GTC | 031-51743-010 | JL02 | 0.08 to 0.13 mm2 | #28 to #26 | 1.1 to 1.5 mm |
| 031-51744-010 | |||||
Search Contacts by Crimp Tool Description：M22520/2-01
| 手動式圧着工具 | シリーズ名 | コンタクト | 適用電線 | |||||
|---|---|---|---|---|---|---|---|---|
| 工具本体 | ロケータ | 品名 | サイズ | 区分 | AWG No. | 被覆外径 (mm) |
導体断面積 (mm2) |
|
| M22520/2-01 (注1) | JP-D*MA-20-18 | D*MA | 330-5291-055 | 20-18 | ピン | #18 または、2本の#22 | ||
| 031-1007-054 | ソケット | |||||||
| JP-D*MA-20-20 | 330-50264 | 20-26 | ピン | #30 to #26 | ||||
| 031-50287 | ソケット | |||||||
| 330-5291-900 | 20 | ピン | #24 to #20 | |||||
| 031-5130-000 | ソケット | |||||||
| JP-D*C-20-20 | D*U | 030-50641 | 20-26 | ピン | #30 to #26 | |||
| 030-50640 | ソケット | |||||||
| 030-50635 | 20 | ピン | #24 to #20 | |||||
| 030-50634 | ソケット | |||||||
| JP-D*C-20-20 | QX | 030-50635 | 20 | ピン | #24 to #20 | 2.5 以下 | 0.2 to 0.5 | |
| 030-50634 | ソケット | |||||||
| 030-50641 | 20-26 | ピン | #30 to #26 | 2.5 以下 | 0.05 to 0.13 | |||
| 030-50640 | ソケット | |||||||
Search Semi-Automatic Crimp Tool：D*U Series
| Semi-automatic crimp tool | Contact part number (Press contact) |
Contact Shape | Applicable electric wire | Remarks | ||
|---|---|---|---|---|---|---|
| Press machine | Applicator | AWG No. | Insulation outer dia. | |||
| CP215-5B | 3502-D*C-2C | D*C-20-24P-10000 | Pin | #28 to #24 | Φ0.8 to Φ1.5mm | |
| D*C-20-24S-10000 | Socket | |||||
| D*C-20-22P-10000 | Pin | #24 to #22 | Φ1.2 to Φ1.7mm | |||
| D*C-20-22S-10000 | Socket | |||||
| D*C-20-18P-10000 | Pin | #22 to #18 | Φ1.8mm max. | |||
| D*C-20-18S-10000 | Socket | |||||
Search Semi-Automatic Crimp Tool：D02-M15 Series
| Semi-automatic crimp tool | Contact part number (Press contact) |
Contact Shape | Applicable electric wire | Remarks | ||
|---|---|---|---|---|---|---|
| Press machine | Applicator | AWG No. | Insulation outer dia. | |||
| CP215-5B | 3502-D02-2 | D02-22-22P-10000 | Pin | #24 to #22 | Φ0.8 to Φ1.3mm | |
| D02-22-22S-10000 | Socket | |||||
| D02-22-26P-10000 | Pin | #28 to #26 | ||||
| D02-22-26S-10000 | Socket | |||||
Search Semi-Automatic Crimp Tool：D02 Series
| Semi-automatic crimp tool | Contact part number (Press contact) |
Contact Shape | Applicable electric wire | Remarks | ||
|---|---|---|---|---|---|---|
| Press machine | Applicator | AWG No. | Insulation outer dia. | |||
| CP215-5B | 3502-D02-2 | D02-22-22P-10000 | Pin | #24 to #22 | Φ0.8 to Φ1.3mm | |
| D02-22-22S-10000 | Socket | |||||
| D02-22-26P-10000 | Pin | #28 to #26 | ||||
| D02-22-26S-10000 | Socket | |||||
Search Semi-Automatic Crimp Tool：JN1V/JN2V Series
| Semi-automatic Crimp Tool | Contact Size | Contact Part Number | Contact Shape | Applicable Wire Size |
|---|---|---|---|---|
| Applicator | ||||
| 3502-JN1-2C | #22 | JN2V-22-20S-10000 | Socket | AWG #21 to #20 |
| #22 | JN2V-22-22S-10000 | Socket | AWG #25 to #21 | |
| #22 | JN2V-22-26S-10000 | Socket | AWG #28, #26 |
Search Semi-Automatic Crimp Tool：MX19 Series
| Tool Part Number | Contact | Applicable Electric Wire | |||||
|---|---|---|---|---|---|---|---|
| AppliSemi-automatic Crimp Tool (Applicator) | Withdrawing Tool | Part Number | Shape | Wire Type | AWG No. | Cross-section Area of Conductor | Insulation Outer Dia. |
| 3502-MX19-2B | ET-MX19 | MX19P10K451 | Pin | CAVS | #22 to #20 equivalent | 0.3 to 0.5 mm2 | Φ1.4 to Φ1.7mm |
| AVSS | #20 equivalent | 0.5 mm2 | Φ1.6 to Φ1.7mm | ||||
| 3502-MX19-2B | ET-MX19 | MX19S10K451 | Socket | CAVS | #22 to #20 equivalent | 0.3 to 0.5 mm2 | Φ1.4 to Φ1.7mm |
| AVSS | #20 equivalent | 0.5 mm2 | Φ1.6 to Φ1.7mm | ||||
Search Semi-Automatic Crimp Tool：PS Series Crimp Type
| Semi-automatic crimp tool | Contact part number (Press contact) |
Contact Shape | Applicable electric wire | Remarks | ||
|---|---|---|---|---|---|---|
| Press machine | Applicator | AWG No. | Cross-section Area of Conductor | Insulation outer dia. | ||
| CP215-5B | 3502-PSSF-2 | PS-SF-C1-1-5000 | Socket | #24 to #22 | 0.20 to 0.38 mm2 | 0.8 to 1.5 mm |
| PS-SF-C2-1-5000 | Socket | #28 to #24 | 0.08 to 0.20 mm2 | 0.7 to 1.4 mm | ||
Appearance of Tool
Hand crimp tool
CT150-2 type(Overall length: about 26cm)
CT170 type (Overall length: about 34cm)
Locator
JP-D*MA-20-20
JP-D*MA-20-20
Hand crimping tool and locator.
* When using a locator, the applicable hand crimping tool is required like the following picture.
Please consult us concerning the hand crimping tool.
Applicator
Press machine
CP215-5B(Weight: approximately 72Kg)
