Medical Connector Solutions

Our connector solutions provide reliable, safe, and user friendly interfaces for medical devices, such as for various patient monitoring (i.e. ventilator LCD display), ultrasound probes, Electrocardiogram (ECG), and wearables applications.
Note : Please contact us if you consider to use our product for medical devices class III or higher.

Applications

Monitors (Display)

Ultrasound

Electro-cardiogram

Wearables

Monitors (Display)

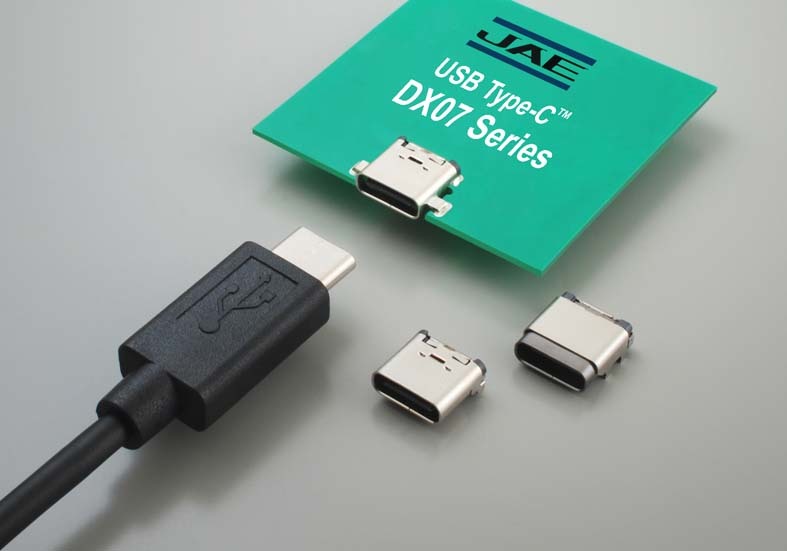

usb type c connectorDX07 Series
USB Type-C Connector

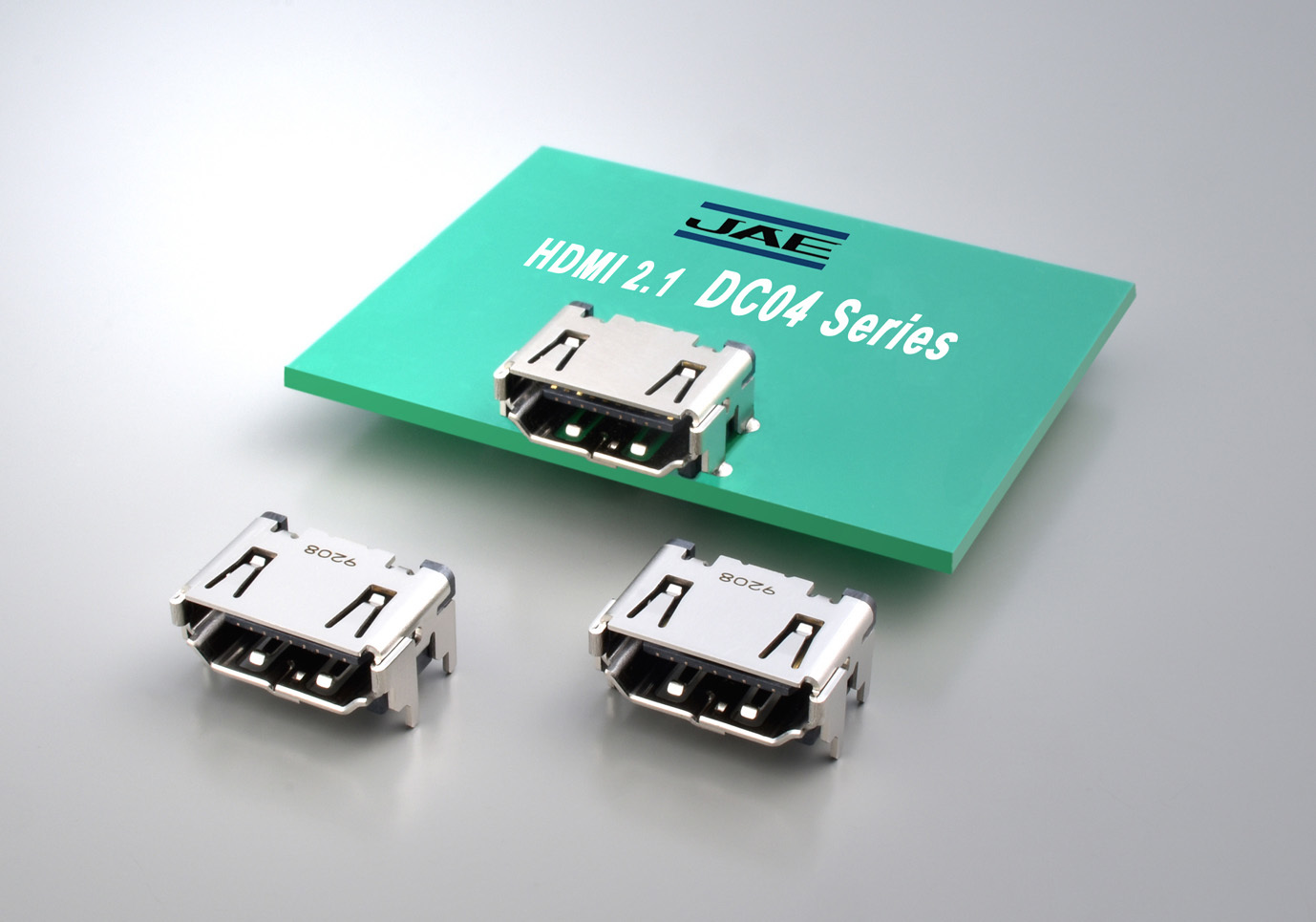

hdmi 2.1 specification approved connectorDC04 Series
HDMI 2.1 Specification Approved Connector

hybrid aoc for high-speed transmission & power supplyRP04 Series
Hybrid AOC (Active Optical Cable) for High-speed Transmission and Power supply

1.27mm half pitch interface connectorDF02 Series
Half-pitch (1.27 mm) Interface Connector

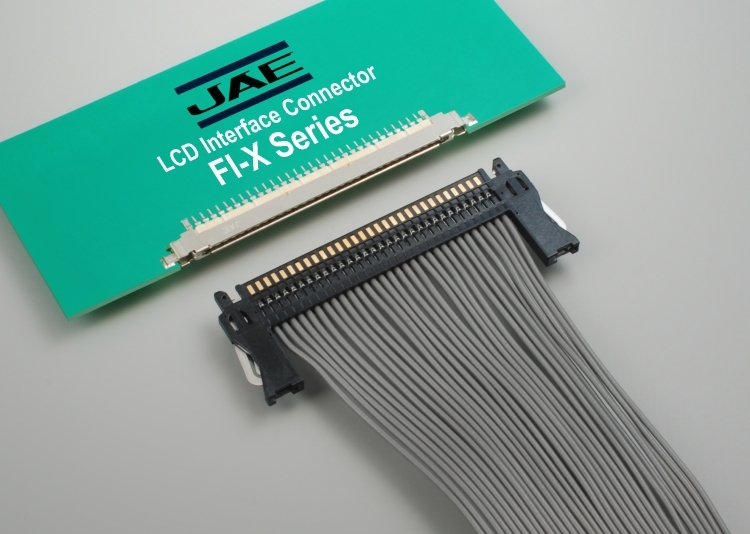

1.0mm pitch connector for interface of lcdFI-X Series
Friction Lock Type (1.0mm pitch) High Speed Transmission Connector

connector for internal serial transmissionFI-R Series
High Speed Transmission (LVDS, HDMI, PCIe) Connector

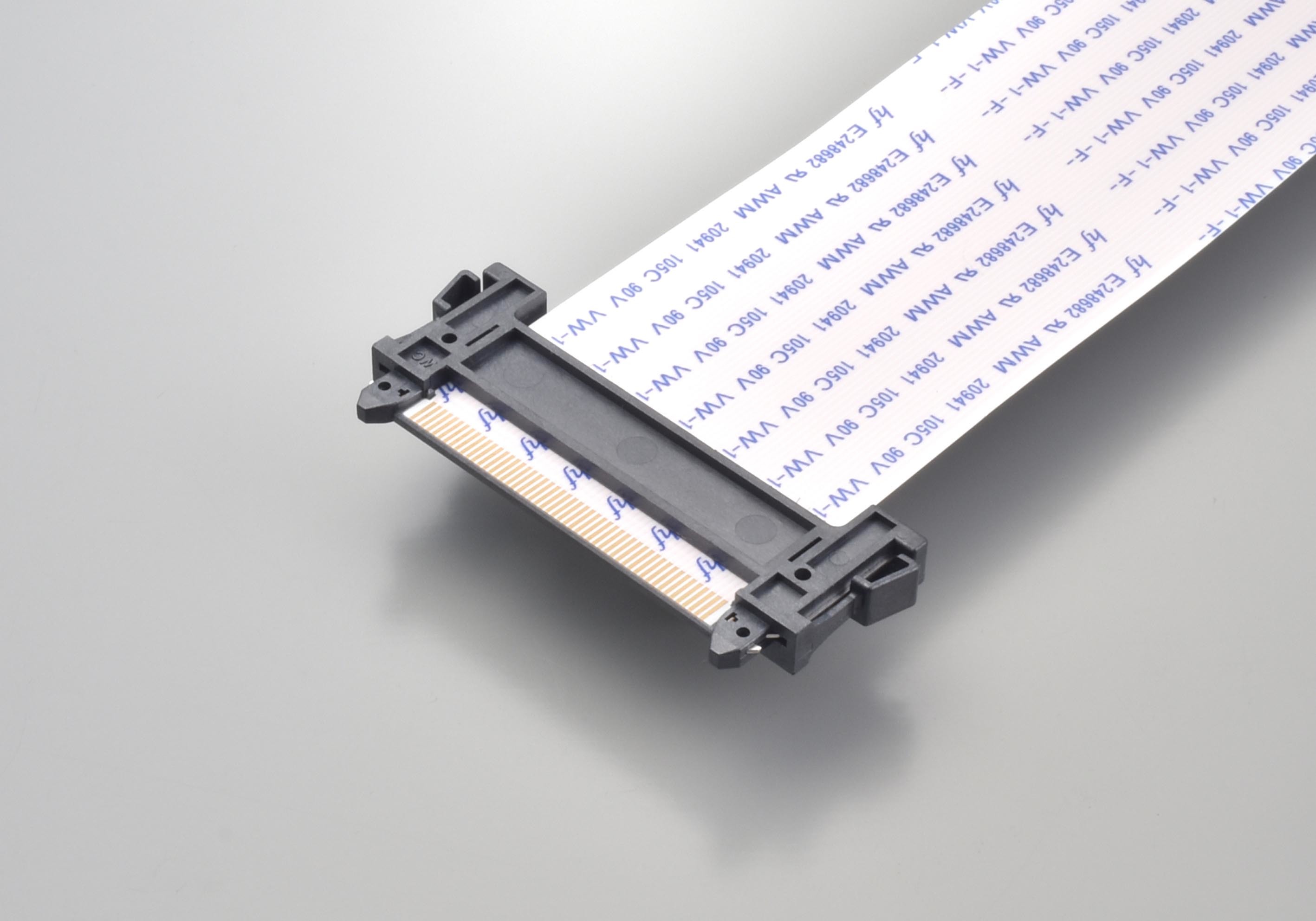

internal high speed harness connectorJF08 Series
Flat Flexible Cable (FFC) High Speed Transmission (LVDS, HDMI, PCIe) Connector

internal high speed harness connectorHD1/HD2 Series
LVDS transmission and VESA® Standard LCD Interface Connector for High-speed Transmission (LICENSED BY I-PEX)

Ultrasound

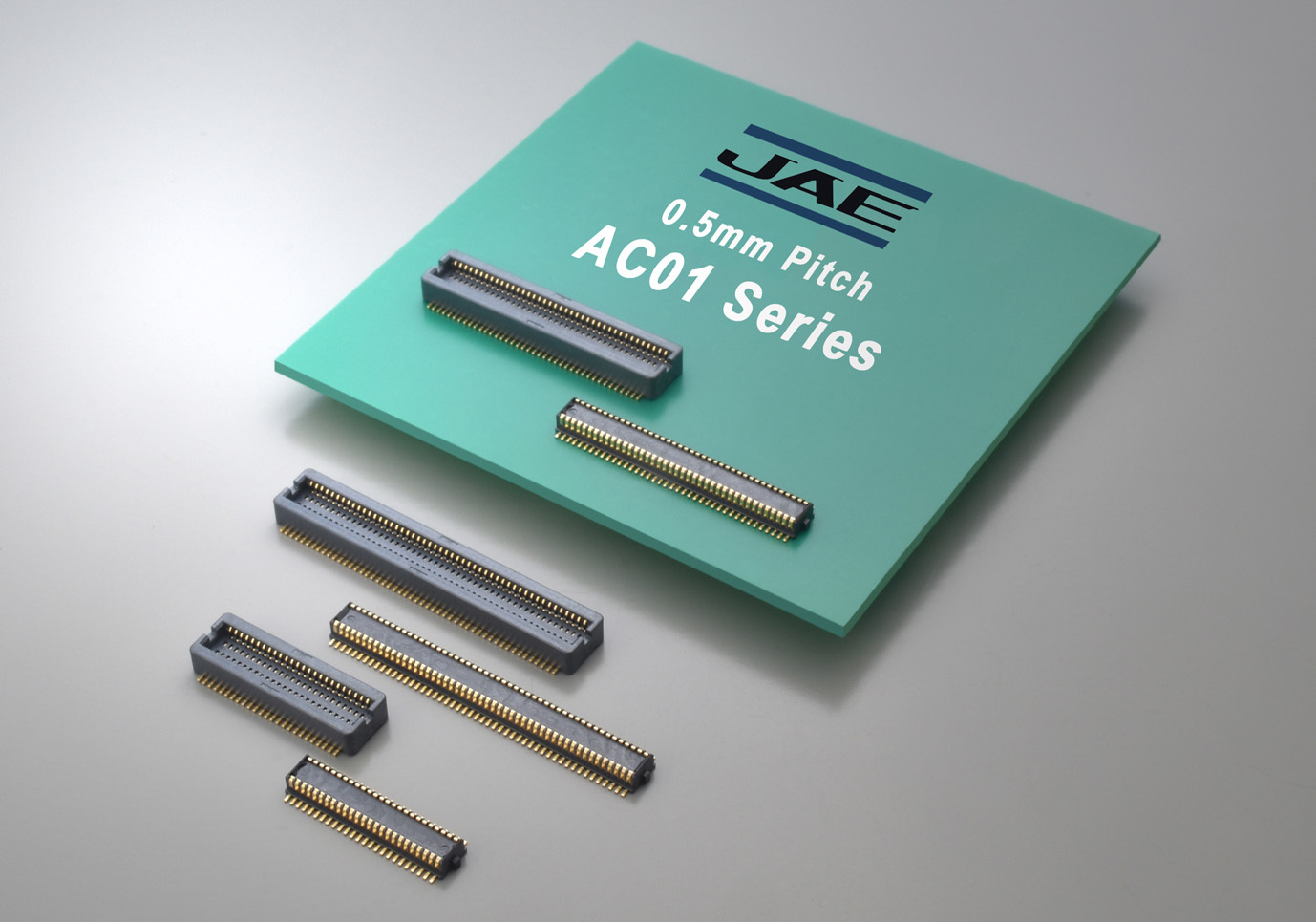

0.5mm pitch staking board to board connectorAC01 Series
0.5 mm Pitch Stacking Type Board-to-Board Connector

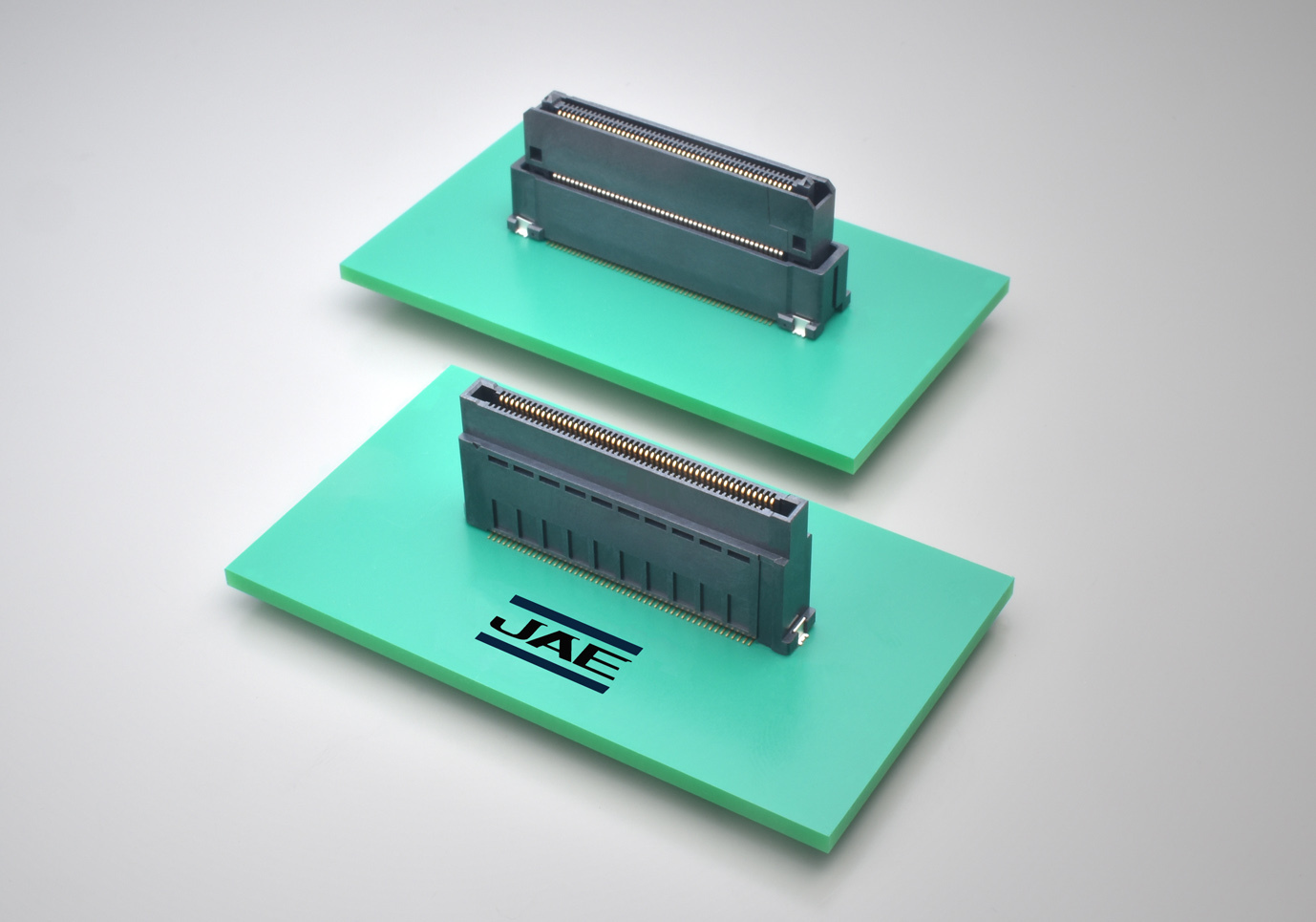

floating board to board connectorAX01 Series
High-speed Transmission Floating Board-to-board Connector

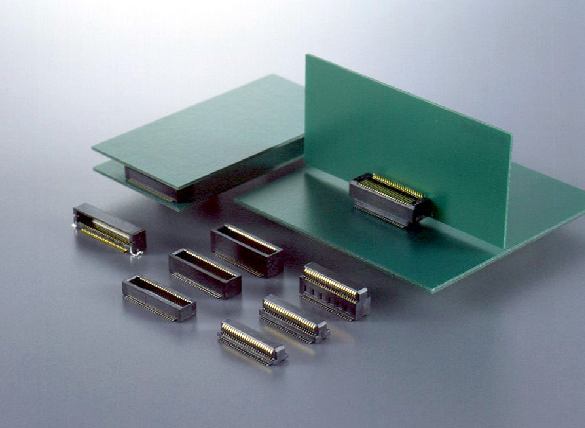

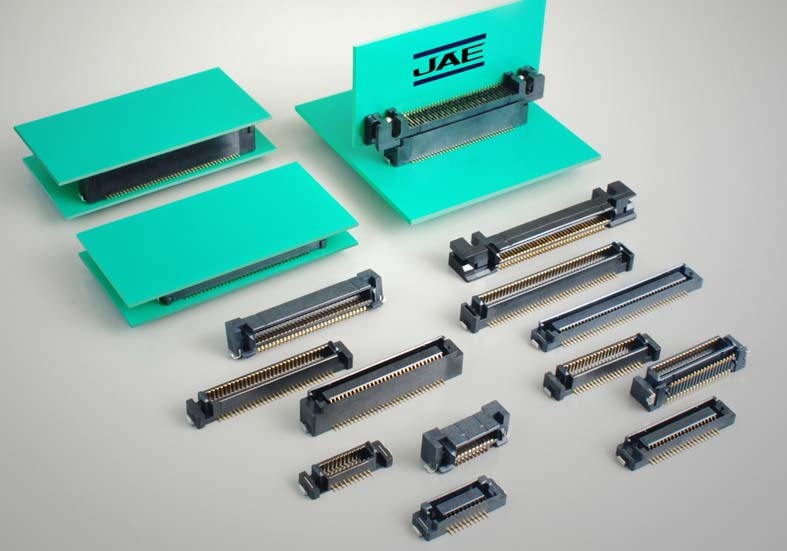

0.8mm pitch board to board connectorKX14/KX15 Series
SMT Type 0.8 mm Pitch Board-to-Board Connector (Parallel/ Vertical)

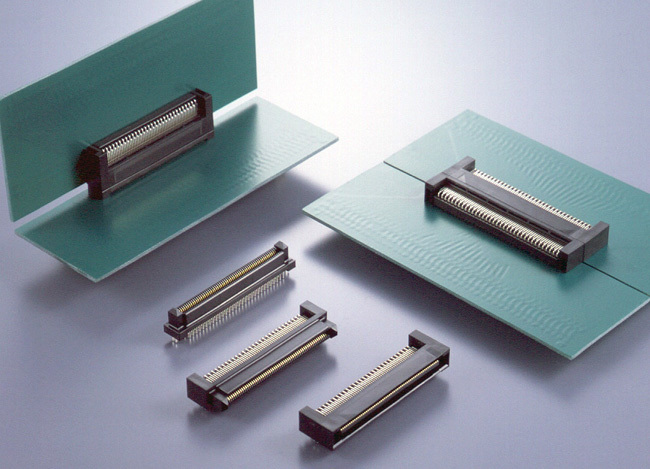

0.8mm pitch board to board connectorKX24/KX25 Series
Through Hole Type 0.8 mm Pitch Board-to-Board Connector (Parallel/ Vertical)

0.5mm pitch board to board connectorWR Series
SMT Type 0.5 mm Pitch Board-to-Board Connector (Parallel/ Vertical)

thin wire coaxial connectorFI-J Series
Thin Wire Coaxial Connector

1.27mm half pitch interface connectorDF02 Series
Half-pitch (1.27 mm) Interface Connector

usb type c connectorDX07 Series
USB Type-C Connector

Electro-cardiogram (ECG)

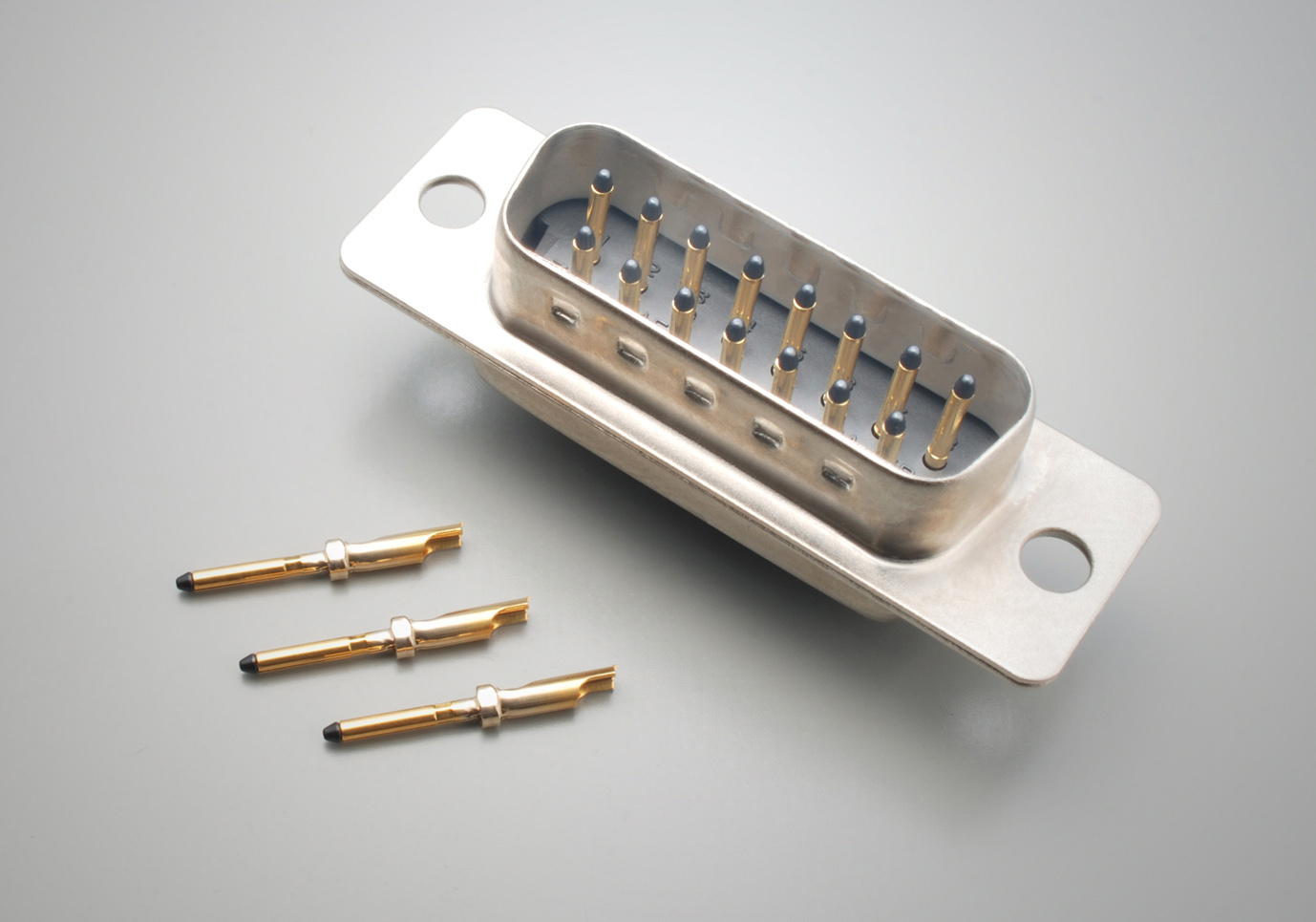

anti shock d-sub connector for medical deviceAnti-shock D-sub Series
Anti-shock D-sub Connector for Medical Devices

1.27mm half pitch interface connectorDF02 Series
Half-pitch (1.27 mm) Interface Connector

usb type c connectorDX07 Series
USB Type-C Connector

Wearables

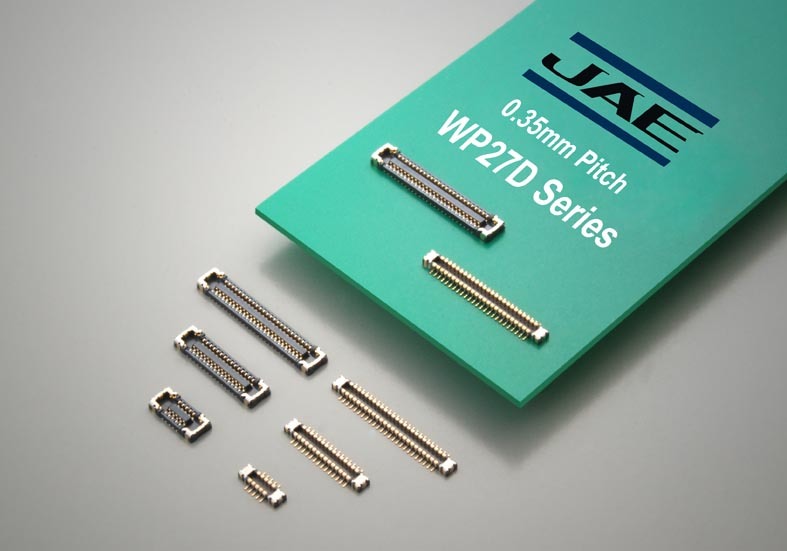

anti shock d-sub connector for medical deviceWP27D Series
0.35 mm pitch low-profile stacking type board-to-board (FPC)

1.27mm half pitch interface connectorFA10 Series
LIF (Low Insertion Force) 0.5mm pitch top and bottom-surface connection type FPC Connector

usb type c connectorRK01 Series
Home washable smart textile Connector for Wearable clothing devices
