JA-5H175 Accelerometer

Quartz Servo Accelerometers

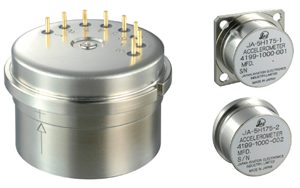

Accelerometer JA-5H175

The 175 ℃ JA-5H175 series accelerometers have been developed to meet the increasing high temperature needs of downhole applications. JA-5H175 is widely used in conventional drilling and unconventional applications. JAE is one of the established key suppliers of high accuracy quartz accelerometers to downhole applications. Using our wealth of knowledge, we have extended the accelerometer operating temperature range to provide reliable sensor for long term operation without compromising performance.

Downloads

Features

  • 175 °C operating temperature
  • Shock and vibration resistant
  • Ultimate reliability

Applications

Designed for extreme downhole applications including:
  • Directional Drilling
  • MWD/LWD
  • Wireline

Technical data

Environmental
Operating temperature -40℃ to +175℃
Shock (Survival) 1,500G
Electrical
Input voltage ±12 to 18V(DC)
Input current (Quiescent) 4.5 mA max.
Performance
Range ±4.0G
Resolution 1μG max.
Scale factor (Nominal@25℃) 3.0mA/G
Bias (Nominal@25℃) ±15.0mG
Bias temperature coefficient ±150μG/℃ Max.
Frequency response 500Hz Min.
Functional
Self-test Current / Voltage
Mechanical
Diameter Φ25.4mm
Height 18.8mm
Weight 50 grams max.
Note
Exportation

Accelerometers must only be exported in accordance with relevant regulations.

Technical information provided including specifications, drawings and schematics are for reference only.
Information provided is subject to change without prior notice.
Please contact your local sales representative with any questions before ordering.
