JIMS-80S
MEMS-IMU

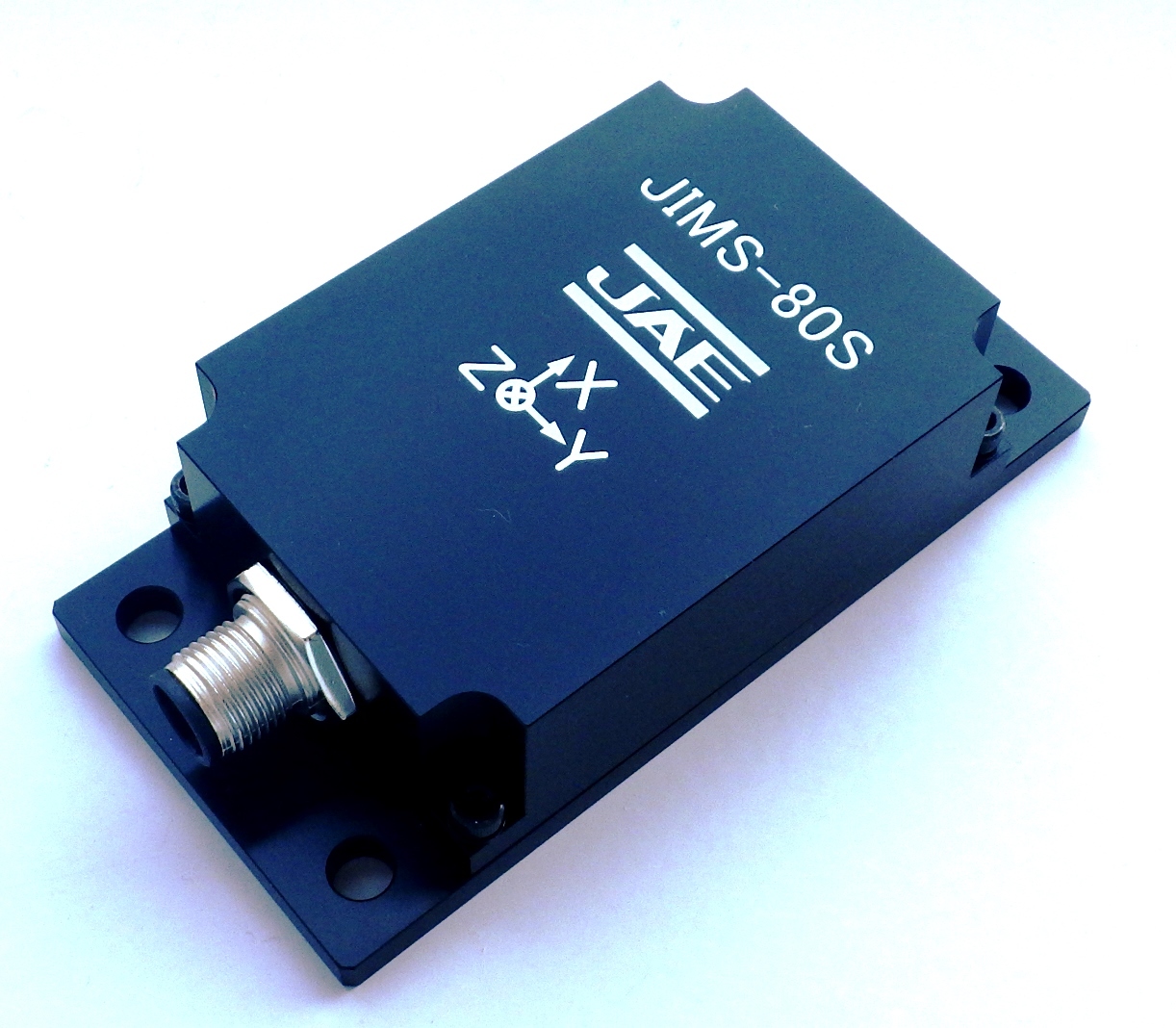

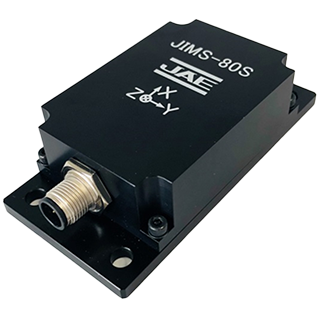

JIMS-80S is a compact and light weight MEMS (micro electro mechanical system) based IMU (inertial measurement unit) that utilizes JAE’s proprietary inertial navigation technology originally developed for the aerospace/space industry. Three gyroscopes and three accelerometers are mounted in one compact unit with outputs optimized using a specially developed algorithm. Accurate measurements of attitude angle, angular velocity and acceleration can then be provided for applications including industrial equipment or vehicles.
Downloads
Features
- Equipped with MEMS gyro / accelerometer
- Posture angle / rate / acceleration output
- Small / lightweight
- Dustproof and waterproof IP67
Applications
- Construction machinery (i-Construction)
- Agricultural machinery (smart agriculture)
- Drone
- Various other posture measurements
Technical data
| Environmental | ||
|---|---|---|
| Operating Temperature | -40 to +80 °C | |
| Shock | 500 G @1ms | |
| Electrical | ||
| Power Supply Voltage | +9～+32 V(DC) | |
| Power Consumpion | 1.0 W | |
| Performance | ||
| Angular Velocity | ±300 °/s | |
| Acceleration | ±8.0 G | |
| Pitch Accuracy | 0.1°rms | |
| Roll Accuracy | 0.1°rms | |
| Interface | ||
| Function | Transmission Method | CAN , RS-232C |
| Update Rate | 100 Hz | |
| Output Data | Angular Velocity (3 Axes) | |
| Acceleration (3 Axes) | ||
| Roll,Pitch,Yaw (RS232C only) | ||
| Mechanical | ||
| Appearance dimension value | Width | 54 mm |
| Depth | 110 mm | |
| Hight | 29 mm | |
| Mass | 220 grams Max | |
| Note | - | |
