Selection guide
Solutions
■ Automotive Grade Products (for major unlicensed frequency bands)
| Applications | Type | Part Number | Frequency Range | ||||
|---|---|---|---|---|---|---|---|
| 2.4 GHz | 5 GHz | 6 GHz | 7 to 8 GHz | ||||
| Automotive equipment - Display audio - Telematics control unit - Smart key - Drive recorder - Motorcycle instrument cluster - Battery management system - Charging equipment for electric vehicles etc. |
Metal plate |
 |
2.4 to 2.5G, 4.6 to 4.9G, 5.15 to 5.85G, 5.925 to 7.125 GHz |
||||
 |
2.4 to 2.5G, 5.15 to 5.85G, 5.925 to 7.125 GHz |
||||||
 |
2.4 to 2.5G, 5.15 to 5.85 GHz |
||||||
 |
2.4 to 2.5 GHz |
||||||
■ General Purpose Products (for major unlicensed frequency bands)
| Applications | Type | Part Number | Frequency Range | ||||
|---|---|---|---|---|---|---|---|
| 2.4 GHz | 5 GHz | 6 GHz | 7 to 8 GHz | ||||

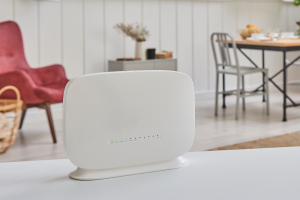

| ICT equipmet - Wi-Fi router - CPE (*1) (LTE / 5G / Wi-Fi Gateway) - Enterprise Wi-Fi access point - Gaming machine - Personal handyphone system - Wireless module for TV IoT equipment - Smart meter - Smart lighting - Helthcare devices - Home security unit - Electronic labels etc. |
Metal plate |
|
2.4 to 2.5G, 4.6 to 4.9G, 5.15 to 5.85G, 5.925 to 7.125 GHz |
||||
 |
2.4 to 2.5G, 5.15 to 5.85G, 5.925 to 7.125 GHz |
||||||
 |
2.4 to 2.5G, 5.15 to 5.85 GHz |
||||||
 |
2.4 to 2.5 GHz |
||||||
| PCB |
 |
2.4 to 2.5G, 5.15 to 5.85G, 5.925 to 7.125GHz |
|||||
| FPC |
 |
2.4 to 2.5G, 5.15 to 5.85G, 5.925 to 7.125GHz |
|||||
| Applications | Type | Part Number | Frequency Range | |
|---|---|---|---|---|
| 860 MHz | 920 MHz | |||
| IoT equipment - Smart meter - Smart lighting - Home security unit - Remote monitoring / Tracker devices - Electronic labels - UAV / UGV(*2) etc. |
Metal plate |
 |
863 to 870 MHz |
|
 |
902 to 928 MHz |
|||
■ General Purpose Products (for LTE / 5G)
| Applications | Type | Part Number | Frequency Range | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 700 MHz | 800 MHz | 1.7 GHz | 2 GHz | 3 to 6 GHz | |||||
| ICT equipment - CPE (LTE / 5G / Wi-Fi Gateway) IoT equipment - Smart meter - Security camera - Home security unit - Remote monitoring / Tracker devices - Healthcare devices - Construction machinery etc. |

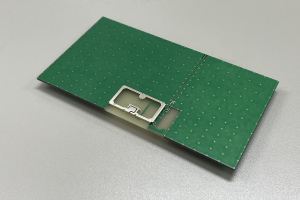

Metal plate |
 |
698 to 960 MHz, 1.71 to 2.69 GHz |
||||||
 |
698 to 960 MHz, 1.71 to 2.69 GHz |
||||||||

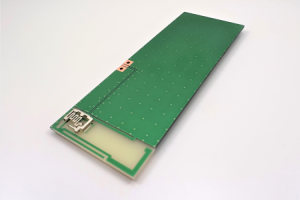

| PCB |
 |
698 to 960 MHz, 1.45 to 6 GHz |
|||||||
 |
1.71 to 6 GHz |
||||||||
| FPC |
 |
698 to 960 MHz, 1.45 to 6 GHz |
|||||||
 |
1.71 to 6 GHz |
||||||||
| IoT equipment - Healthcare devices - Local 5G unit - Construction machinery etc. |
Metal plate |
 |

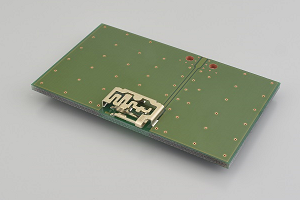

4.6 to 4.9 GHz |
||||||
| IoT equipment - Private LTE terminal - Smart meter for CBRS (*3) - Smart meter for sXGP (*4) etc. |
Metal plate |
 |

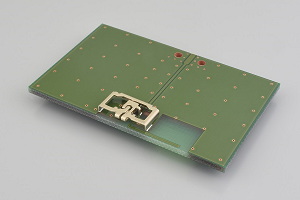

3.3 to 3.8 GHz |
||||||
 |

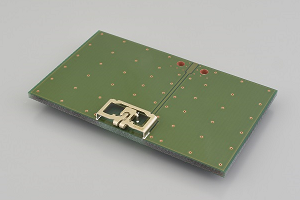

1.88 to 1.92 GHz |
||||||||
