Automotive LVDS / GVIF High-speed Transmission Compatible "MX49A Series and MX49C Series" Has Been Developed

Along with the electronic advances taking place in cars, the use of displays is rapidly growing due to the safety checks using surround view systems and LCD type instrument panels, and DVD watching in the rear seat.

And the transmission signals are shifting to digital high-speed differential transmission, which can transmit large amounts of data more efficiently.

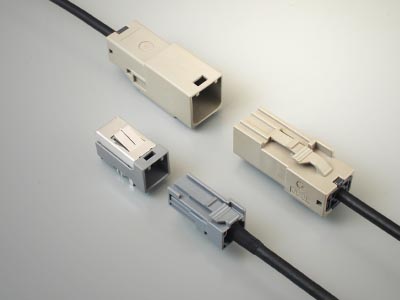

To meet these demands, JAE has developed the non-waterproof type MX49A and waterproof MX49C type connectors compatible with LVDS / GVIF for on-board digital image signals.

The two types add to our line-up and expand variations for automotive high-speed differential connectors, and contribute to improve convenience of customers.

:: Features

Compatible with automotive LVDS / GVIF digital image signal transmission.(GVIF is a trademark of Sony Corporation.)
Impedance matching design, compatible with high-speed transmission.
Whole surface of connector is covered with shield shell for EMI control.
5 types of mis-mating prevention keys are available.
Both non-waterproof type (MX49A) and waterproof type (MX49C) available for in-line type.
Available as a completed harness to ensure transmission performance reliability.

:: Applicable market

Connection between infotainment ECU and displays

Connection between surround view system and displays

:: General specifications

MX49A -Board-to-cable-Cable-to-cable (non-waterproof)

1.	No. of Contacts	:　4 pos. right angle type
1.	No. of Contacts	Through-hole (5 types of mis-mating prevention keys)
2.	Dielectric Withstanding Voltage	:　AC1000Vr.m.s, applied for 1 minute (When mated)
3.	Insulation Resistance	:　100M ohms min.
4.	Applicable Board Thickness	:　1.6mm
5.	Operating Temperature Range	:　-40 Deg. C to +85 Deg. C
6.	Applicable Wire: MX49A	:　Quad shielded twisted pair cable (harness product only)

MX49C - Cable-to-cable (waterproof)

1.	No. of Contacts	:　4 pos.
2.	Dielectric Withstanding Voltage	:　AC1000Vr.m.s, applied for 1 minute (When mated)
3.	Insulation Resistance	:　100M ohms min.
4.	Operating Temperature Range	:　-40 Deg. C to +100 Deg. C
5.	Applicable Wire: MX49C	:　Quad shielded twisted pair cable (harness product only)
