LED Lighting Card Edge Connector "ES6 Series" Has Been Developed

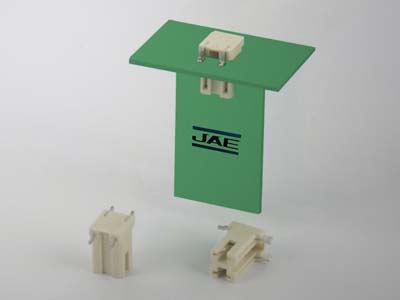

LED Lighting Card Edge Connector ES6 series supplied by JAE electronics

JAE has launched the new ES6 Series card edge connectors for LED light bulbs and LED lighting, designed for easy connection and assembly of the LED mounting board and power board.


The use of LED lighting devices is rapidly increasing due to its efficiency and eco-friendly benefits for consumers. As the popularity of LED lighting grows, LED manufacturers seek to increase capacity and yield while reducing cost, so efficient production practices and quality stability for high-volume manufacturing is imperative. The ES6 series' card edge connection feature makes the assembly of the LED board and power board easy for LED manufacturers in mass production. Its compact design saves board mounting space and promotes design flexibility.



  • Contributes to easy and automatic assembly with card edge connection of the LED mounting board and power board.
  • Adopts a tuning fork structure terminal, which has high contact reliability in long term high temperature environments.
  • Compatible with automatic mounting. Features a wide space for absorption and complies with standard nozzles.
  • Saves mounting space on boards and is ideal for compact bulbs and fixtures.
  • cULus recognized as an individual connector
  • cULus Product: File No. E67741
  • RoHS compliant product.

:: Applicable Markets

LED light bulbs, down lights, spot lights, LED lighting, and compact electrical devices

:: General Specifications

1. No. of Contacts : 2 pos.
2. Rated Current : AC / DC 1A
3. Rated Voltage : AC / DC 250V
4. Contact Resistance : 30m ohms max.
5. Operating Temperature Range : -40 Deg. C to +105 Deg. C
6. Mating Cycles : 20 times
7. Applicable Board Thickness
(Card side board thickness)

: 1mm ± 0.1

:: Materials and Finishes

Component Material / Finish
Insulator LCP
Contact Copper alloy / Sn plating

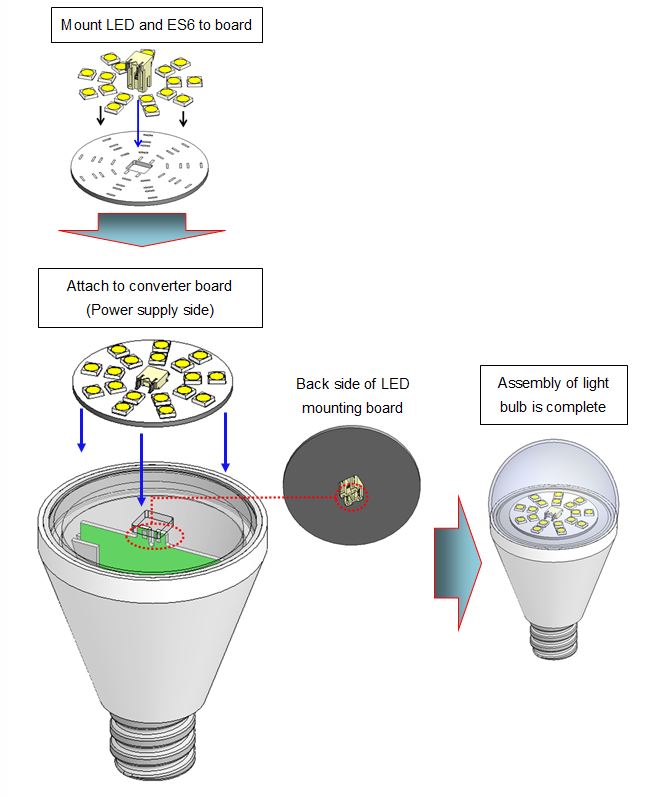

:: Example of light bulb assembly

LED Lighting Card Edge Connector ES6 Series, example of light bulb assembly

Information and details given here are as of the date of publication. Please note that the details may be changed.
