Variations of USB2.0 Compatible Connectors, "MX39", "MX45", and "MX49" Series for Automotive Have Been Expanded

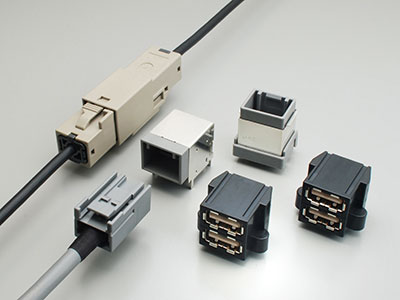

Variations of USB2.0 Compatible Connectors MX series supplied by JAE electronics

JAE has expanded the variations of USB2.0 Compatible Connectors, "MX39 Series", "MX45 Series", and "MX49 Series" for automotive infotainment applications.



Recently, the functionality and the entertainment of information and communications technology equipment have increased, therefore the more users connect smartphones, tablet PCs, notebook PCs and audio players to car navigation systems and car audio systems using USB2.0 connectors.



Along with this trend, the demands for I/O and in-car wiring have been increasing and also a demand for diversification in their shapes and mounting methods has been required.



To meet theses demands, JAE has added a dual stack type for the I/O connector (USB Type A shape) "MX45 Series" which can comply with the carry-on devices of the users, a straight type for the "MX39 Series" for in-car connection, and an in-line type for the "MX49 Series".



We are offering a wide range of connectors for automotive use such as meters, air bags, and engine control units.
Furthermore, we will enhance our product line to meet our customer’s needs.


Features

  • Compatible with USB2.0 specifications.
  • Mechanical locking structure ensures secure mating.
  • Abundant variation (Please refer to the below "General Specifications" for details)

Applicable Markets

Automotive infotainment devices, USB ports, and others.

General Specifications

Connectors for I/O
MX45 Series


Series MX45A
Features

Dual stack USB2.0 Type A

Connector Type On-board receptacle connector (TH)
No. of Contacts 8 pos. (4pos. x 2row)
Dielectric Withstanding Voltage AC500V r.m.s. (when mated)
Insulation Resistance 1000M ohms min. (initial)
Contact Resistance 30m ohms max. (initial)
Operating Temperature Range -40Deg. C +85Deg. C
Applicable Board Thickness 1.2 [mm]

Connectors for Internal Wiring
MX39 Series


Series MX39 MX39C
Features USB2.0 compatible USB2.0 compatible
Connector Type •On-board receptacle connector

(TH straight / right angle)

•On-board receptacle connector
(TH / boss mount)
No. of Contacts 4pos. (4pos. x 1row) 4pos. (4pos. x 1row)
Dielectric Withstanding Voltage AC1000V r.m.s. (when mated) AC1000V r.m.s. (when mated)
Insulation Resistance 100M ohms min. (initial) 100M ohms min. (initial)
Contact Resistance 8m ohms max. (initial) 8m ohms max. (initial)
Operating Temperature Range -40Deg. C +85Deg. C -40Deg. C +85Deg. C
Applicable Board Thickness 1.6 [mm] 1.6 [mm]

Series MX39B MX39D
Features USB2.0 compatible (thin wire) USB2.0 compatible (thick wire)
Connector Type

•Receptacle side harness

•Plug side harness

•Receptacle side harness

•Plug side harness

No. of Contacts 4pos. (4pos. x 1 row) 4pos. (4pos. x 1row)
Dielectric Withstanding Voltage AC1000V r.m.s. (when mated) AC1000V r.m.s. (when mated)
Insulation Resistance 100M ohms min. (initial) 100M ohms min. (initial)
Contact Resistance 8m ohms max. (initial) 8m ohms max. (initial)
Operating Temperature Range -40Deg. C +85Deg. C -40Deg. C +85Deg. C
Applicable Board Thickness

Shielded twisted pair cable
(Harnessed product only)

4.0φ(AWG28 x 1P + 2C)

Shielded twisted pair cable
(Harnessed product only)

5.6φ (AWG26 x 1 + 20 x 2C)

MX49 Series


Series MX49 MX49B MX49CB
Features USB2.0 compatible
(compact: thick wire)

USB2.0 compatible

(compact: thin wire)

USB2.0 compatible

(compact: waterproof)
Connector Type

•On Board receptacle connector
(TH / SMT)

•Plug side harness



Plug side harness



In-line harness

No. of Contacts 4pos. (2pos. x 2 row) 4pos. (2pos. x 2 row) 4pos. (2pos. x 2 row)
Dielectric Withstanding Voltage AC1000V r.m.s
(when mated)
AC1000V r.m.s
(when mated)

AC1000V r.m.s

(when mated)
Insulation Resistance 100M ohms min. (initial) 100M ohms min. (initial) 100M ohms min. (initial)
Contact Resistance 8m ohms max. (initial) 8m ohms max. (initial) 8m ohms max. (initial)
Operating Temperature Range -40Deg. C +85Deg. C -40Deg. C +85Deg. C -40Deg. C +85Deg. C
Applicable Board Thickness 1.6 [mm] ---- ----
Applicable Cable

Shielded twisted pair cable
(Harnessed product only)

5.6φ (26AWG x 1P + 20 x 2C)

Shielded twisted pair cable
(Harnessed product only)

4.0φ (28AWG x 1P + 2C)

Shielded twisted pair cable
(Harnessed product only)

4.0φ (28AWG x 1P + 2C)

*The products underlined and surrounded with a square frame are added to the product line this time.



Information and details given here are as of the date of publication. Please note that the details may be changed.
