Variation of USB Type-C DX07 Series Connectors Has Been Expanded

DX07 series connectors variations supplied by JAE electronics

JAE has developed and launched 3 new types of receptacle connectors to add to the "DX07 Series" connector line-up, which is compatible with the next-generation USB Type-C specification.

The USB Type-C connectors are expected to become widely used as a next-generation interface for smartphones, tablets, notebook PCs, televisions, gaming devices, and more with features such as compatibility with 10 Gbps high-speed communication, maximum of 5A and 20V power supply and reversible plug structure with no need to worry about the plug orientation.

As a manufacturer who took part in the working group which created the USB Type-C specification, JAE is working to expand our product variations.

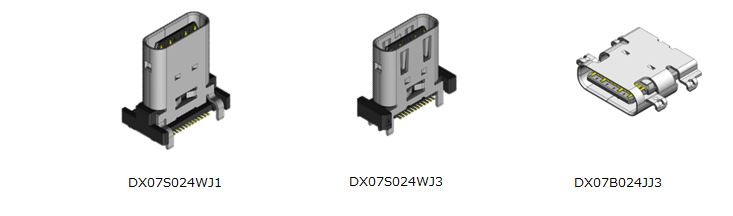

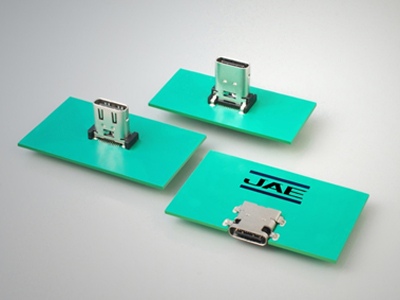

To answer the needs for slimmer connectors JAE has developed and released a new mid-mount type receptacle with an even lower centerline. There are also two new vertical mount receptacles to give more flexibility in board orientation and positioning for monitors and peripheral devices such as chargers and hubs.

With these additions, there are now 7 variations of 2-row SMT terminal receptacle connectors that will cover the increasing needs of connections between various devices along with the expansion of the USB Type-C connector.

We will continuously work to expand product variations of the DX07 Series and contribute to the design flexibility for our customers.

Features of USB Type-C DX07 Receptacle Connector

  • Low profile, 2-row SMT mid-mount type with the connector center height 0.07mm below the board mounting surface.
  • 2 types (10mm and 12mm height) of 2-row SMT vertical type.
  • Compatible with Universal Serial Bus Type-C Specification Release 1.2.
  • Supports 5A max. power supply. (Compatible with USB Power Delivery)
  • Symmetric interface which allows for the plug to be inserted upside down or right side up.
  • Superior EMI / EMC characteristics.
  • Lock structure with superior durability.

DX07 series connectors Mating image

Type-C Connector DX07 Series

•Receptacle ‹Mounting Terminal 2-row SMT type›

  JAE Part Number Mounting Style
1 DX07S024JJ2 On-board Horizontal
2 DX07S024JJ3
3 DX07B024JJ1 Mid-mount
4 DX07B024JJ2
5 DX07B024JJ3
6 DX07S024WJ1 On-board Vertical
7 DX07S024WJ3

•Receptacle ‹Mount terminal hybrid type›

  JAE Part Number Mounting Style
8 DX07B024XJ1 Mid-mount Horizontal
9 DX07S024XJ1 On-board

Applicable Markets

Smartphones, tablets, notebook PCs, televisions, small LCD displays, digital still cameras, digital video cameras, audio equipment and other consumer devices.


(Same for both receptacle and plug)
No. of Contacts 24pos.
Rated Current 5A max.
Rated Voltage AC20V r.m.s.
Contact Resistance 40m ohms max. (initial)
Dielectric Withstanding Voltage AC 100 V r.m.s. for 1 minute
Insulation Resistance 100 M ohms min. (initial)
Operating Temperature Range -30 Deg. C to +80 Deg. C
Mating Cycles 10,000 times

DX07 Series (PLUG) (For more details) >

DX07 Series image
