Two Types Including Industry's Lowest-in-class Height Sunk-into-the-board Type Has Been Developed to Enhance the Product Line-up of PCI-SIG Standard M.2 (NGFF) Compatible Connector "SM3 Series"

Please scroll to check.

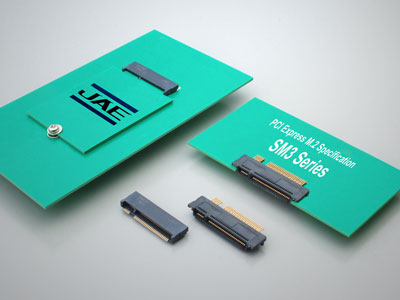

SM3 series

Along with the slimming of notebook PCs, diffusion of tablet PCs, and increasing speed of signals, there is a growing demand for compact slim and high-speed transmission compatible module card connectors.

JAE has already developed and released the "SM3 Series" card edge connector to meet this need. The SM3 Series is compatible with the PCI-SIG, PCI Express M.2 specification, supporting multiple modules such as Wi-Fi, Bluetooth, SSD.

To comply with further demands for low-profile connectors, JAE has now developed two types of connectors, including the industry's lowest-in-class height sunk-into-the-board type to enhance the product line-up.
The mating height of each mounting type is, on-board type: 2.15mm, sunk-into-the-board type: 1.2mm.


:: Features


  • Compatible with PCI-SIG PCI Express M.2 Specification, and transmission of high-speed signals such as PCIe, Gen 3, USB 3.0, Displayport, SATA, and more are possible.
  • 0.5mm pitch (1 row back and front), 67 position, compact card edge connector.
  • Product height of sunk-into-the-board type is industry's lowest-in-class height 1.2mm and allows for more design freedom for customers.
  • On-board mounting type 2.15mm mounting height product is the lowest product in the standard and improves the workability for customers with correspondence to oblique insertion of modules.
  • Due to the addition of these two types, SM3 Series will be available in all four types which are three on-board types (height 4.1mm, 3.1mm, 2.15mm), and one sunk-into-the-board type (height: 1.2mm) and will allow choice of product height according to the customers main-body design and installation in slim devices are possible.
  • Available in variation of polarizing keys corresponding to different applications.

:: Applicable market



Notebook PC, tablet PC, portable game device, STB, etc.



:: General specifications



Please scroll to check.

  No. of Contacts : 67 positions
  Contact Pitch : 0.5mm
  Operating Temperature : -40 Deg. C + 80 Deg. C
  Rated Current : 0.5A / pin
  Contact Resistance : 55m ohms max.
  Dielectric Withstanding Voltage : AC300Vr.m.s (for 1 minute)
  Mating Cycles : 60 times
