VAutomotive USB 3.0 / Automotive High-speed Transmission Connector MX62 Series

Automotive USB 3.0 / Automotive High-speed Transmission Connector MX62 series supplied by JAE electronics

From the point of increase of the data along with the growing high performance and entertainment, recently, the applications considering USB 3.0 have been increasing for automotive applications.



To meet these needs, JAE has developed MX62 Series connector to comply with USB 3.0 for automotive applications.



The MX62 Series is a connector compatible with USB3.0 transmission specifications, designed to satisfy 5Gbps high-speed; achieving both mechanical and environmental performances for requirements used for automotive applications.
Also it adopts shielded wires exclusively developed for automotive applications.



The MX62 Series is not only suitable for automotive, but also a wide range of industrial applications as it has heat, shock and vibration resistance.


::Features



  • 2.0mm side pitch, 2 row 10 contact type.
  • High-speed impedance matching design, compatible with USB 3.0 transmission specification.
  • Differential line compatible with 5Gbps equivalent: 2 pair, differential line compatible with 480Mbps equivalent: 1 pair
  • Compatible not only with USB 3.0 but also with other high-speed transmissions.
  • Adopts double metal shell shielding structure for EMI control.
  • Robust design with consideration for automotive on-board use.
  • In-line type is also available with consideration for cable wiring routing.
  • Available as a completed harness to ensure transmission performance reliability.
  • RoHS compliant product.

:: Applicable Markets

Automotive infotainment applications, Automotive high-speed transmission devices

:: General Specifications

1. No. of Contacts : 10 pos.
2. Operating Temperature : -40 Deg. C to +85 Deg. C
3. Contact Resistance : 8m ohms max. (initial)
4. Insulation Resistance : 100 M ohms min. (when mated)
5. Rated Current : 2.2A (power / GND line)
6. Dielectric Withstanding Voltage : AC 1,000V (applied for 1 minute when mated)
7. Applicable Board : 1.6 mm
8. Applicable Wire : Shielded Twist Pair Cable (Sold only as a harness product)

:: Materials and Finishes

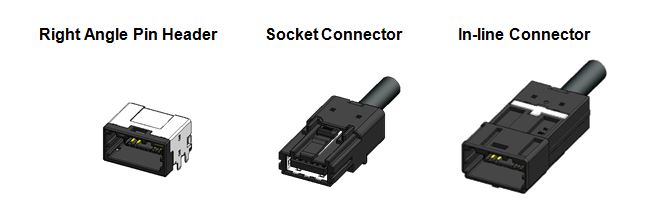

Right Angle Pin Connector

Component Material / Finish
Outer Housing PPS-GF40
Inner Housing LCP-GF35
Terminal

Brass / Contact area Au plating
Connection area Sn plating
Inner Shell Copper alloy / Sn plating
Outer Shell Brass / Sn plating


Socket Connector

Component Material / Finish
Outer Housing, Retainer, Rear Cover PBT
Inner Housing LCP-GF35
Holder 9TNy-GF45
Terminal

Copper alloy / Contact area Au plating
Connection area Sn plating
Shell A Copper alloy / Sn plating
Shell B Brass / Sn plating
Sleeve Brass / Sn plating


In-line Connector

Component Material / Finish
Outer Housing, Retainer, Rear Cover PBT
Inner Housing LCP-GF35
Holder 9TNy-GF45
Terminal

Brass / Contact area Au plating
Connection area Sn plating
Shell A Copper alloy / Sn plating
Shell B Brass / Sn plating
Sleeve Brass / Sn plating

:: Product images

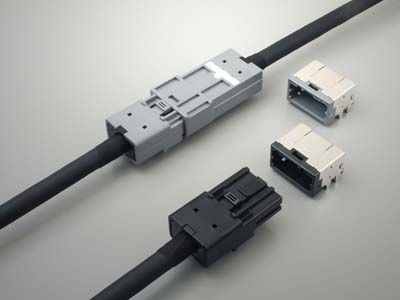

USB3.0Automotive High-speed Transmission Connector MX62 Series product images
