JA-25GA Accelerometer

Quartz Servo Accelerometers

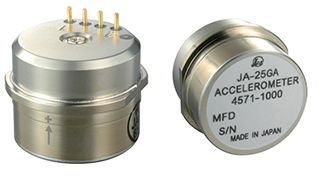

JA-25GA Accelerometer

The miniaturized 175 ℃ JA-25GA servo balanced quartz pendulum accelerometers can be integrated within one inch diameter probes for downhole applications. The miniature size enables design engineers to develop more ruggedized drilling tools where mechanical space is very limited. The JA-25GA provides reliable long term operation at high temperatures without sacrificing performance required for directional drilling.

Downloads

Features

  • 175 °C operating temperature
  • Shock and vibration resistant
  • Ultimate reliability

Applications

Designed for extreme downhole applications including :
  • Directional Drilling
  • MWD/LWD
  • Wireline

Technical data

Environmental
Operating temperature -40℃ to 175℃
Shock 1,500G
Electrical
Input voltage ±12 to 18V(DC)
Input current (Quiescent) 5.5 mA max.
Performance
Range ±4.0G
Resolution 1μG max.
Scale factor (Nominal@25℃) 1.30mA/G
Bias (Nominal@25℃) ±15.0mG
Bias temperature coefficient ±100μG/℃ Max.
Frequency response 600Hz Min.
Functional
Self-test Non
Mechanical
Diameter Φ19.0mm
Height 15.5mm
Weight 20 grams max.
Note
Exportation

Accelerometers must only be exported in accordance with all relevant regulations.

Technical information provided including specifications, drawings and schematics are for reference only.
Information provided is subject to change without prior notice.
Please contact your local sales representative with any questions before ordering.
