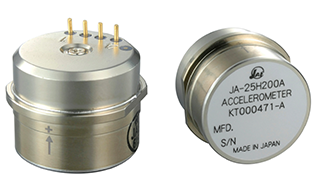

JA-25H200 Accelerometer
Quartz Servo Aaccelerometers
The miniaturized 200°C JA-25GA servo balanced quartz pendulum accelerometers can be integrated within one inch diameter probes for downhole applications. The miniature size enables design engineers to develop more ruggedized drilling tools where mechanical space is limited. The JA-25H200 provides reliable long term operation at extreme temperatures without sacrificing performance required for directional drilling.
Downloads
Features
- 200 °C operating temperature
- Shock and vibration resistant
- Ultimate reliability
Applications
Designed for extreme downhole applications including:- Directional Drilling
- MWD/LWD
- Wireline
Technical data
| Environmental | |
|---|---|
| Operating temperature | -40℃ to +200℃ |
| Shock | 1,500G |
| Electrical | |
| Input voltage | ±12 to 18V(DC) |
| Input current (Quiescent) | 4.5 mA max. |
| Performance | |
| Range | ±4.0G |
| Resolution | 1μG max. |
| Scale factor (Nominal@25℃) | 1.30mA/G |
| Bias (Nominal@25℃) | ±15.0mG |
| Bias temperature coefficient | ±100μG/℃ Max. |
| Frequency response | 600Hz Min. |
| Functional | |
| Self-test | No |
| Mechanical | |
| Diameter | Φ19.0mm |
| Height | 15.5mm |
| Weight | 20 grams max. |
| Note | |
| Exportation |
Accelerometers must only be exported in accordance with all relevant regulations. |
Technical information provided including specifications, drawings and schematics are for reference only.
Information provided is subject to change without prior notice.
Please contact your local sales representative with any questions before ordering.
