RHINO Pressure Transducers

Features

• Compatible - With industry standard MWD systems using 4-20mA current to transmit the pressure readings.

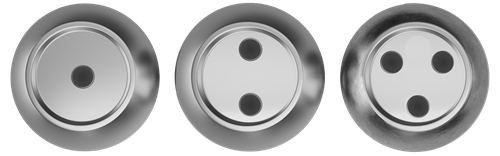

• Multiple Sensors - Get one, two, or three sensors in a housing, configurable for individual or simultaneous operation.
• Redundancy - Switch input sensors without interruption and minimize down-time with a new generation of MWD technology that works seamlessly with the JAE SMART DECODER™ out now.

™SMART DECODER is a trademark of Japan Aviation Electronics Industry, Ltd.

JAE RHINO pressure transducers are engineered for reliability and continuous operation during high-demand measurementwhile-drilling (MWD) applications.

Applications

• Uses 4-20mA current loop pressure signals used in pulse MWD systems.
• 6-pin connector is standard.
• Housing supports up to three pressure sensors in one, depending on the chosen union base.

Specfications

EXTERNAL
BASE DIAMETER	93.98 mm (3.70 in.)
HOUSING DIAMETER	82.55 mm (3.25 in.)
PRODUCT HEIGHT	147.98 mm (5.83 in.)
MATERIAL	300 Series Stainless Steel

MECHANICAL
PROCESS CONNECTION	WECO 1502 Hammer Union
OUTPUT SIGNAL CONNECTION	PT02A-10-6P

ELECTRICAL
SUPPLY VOLTAGE	9 VDC to 36 VDC
OUTPUT SIGNAL	4mA to 20mA
INSULATION RESISTANCE	>100 MΩ

SENSOR
SENSOR QUANTITY	1, 2, or 3 ( Model Dependent)
PRESSURE RANGE	0 to 10,000 psi
OVER-PRESSURE RATING	12,000 psi
ACCURACY	±1%
OPERATING TEMPERATURE	-40 °C to +125 °C (-40°F to +257°F)

Diameter:82.55 mm (3.25 in.)

Diameter:93.98 mm (3.70 in.)
