USB 3.1 Type-C™ Cable Harness with Screw Lock Has Been Developed to Add to Our DX07 Series Line-up

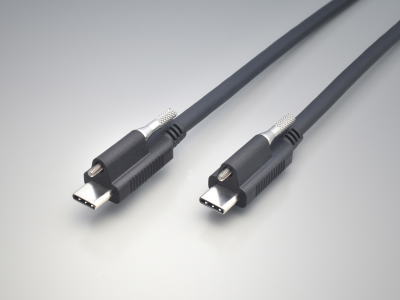

DX07 Series USB 3.1 Type C Cable Harness with Screw Lock by JAE electronics

JAE has developed and released a USB Type-C cable harnesses which has a thumb screw integrated in the plug hoods to allow for secure mating in industrial applications. It will be made available to customers as part of the "DX07 Series" family of products which also includes standard cable harnesses without screw locks, as well as receptacle and plug connectors.

The USB Type-C connectors are widely used as a data and power interface for PCs, smartphones, audio visual devices, gaming devices, and are expected to expand to industrial equipment applications as well.
Demands to satisfy industrial requirements for robustness and reliability meant there was a need to create a supplemental specification for a USB Type-C connector with a locking engagement method.
To cater to these new requirements, JAE has developed and launched the USB Type-C cable harness featuring screw locks, that conforms to the screw lock specification added to the USB 3.1 standard.

These products are compatible with the USB 3.1 and Type-C standard, and can support high-speed transmission up to 10Gbps and 5A max power supply depending on the cable configuration. By equipping a screw lock on the plug hood, the connector can be securely fixed to the device housing.
Therefore, this product can be used with confidence in equipment that require robustness and operate in vibrating environments.
The screw size is M2, and the screw lock position is compliant with the dimensions specified by the USB Type-C standard.

As a manufacturer who has taken part in the development and standardization of the USB Type-C specification, JAE will continuously work to expand product variations of receptacles, plugs, and cable harnesses in the DX07 Series.

Note) USB Type-C™ is a trademark of USB Implementers Forum, Inc.


  • Compatible with USB Type-C Specification Release 1.3
  • Compatible with USB Power Delivery Revision 3.0
  • Compatible with up to 10Gbps SuperSpeed communication (USB 3.1 Gen 2)
  • Supports 5A max. power supply (USB Power Delivery)
  • Robustness achieved by locking the plug hood to the device housing with a screw
    (Connector is mating compatible with conventional receptacle)
  • Superior EMI/EMC characteristics
  • Halogen-free product

Applicable Markets

Industrial equipment such as security cameras and measuring instruments, POS terminals, office equipment, printers, and consumer products.

General Specifications

Part Number DX07550B20K19510 DX07550B10N19510
Length 2m 1m
Rated Current (VBUS, GND) 3A 5A
Applicable Standards USB 3.1 Gen 1 USB 3.1 Gen 2
USB Type-C, USB PD Revision 3.0
Materials / Colors
(hood, bushing, and cable jacket)
TPE / Black TPE / Black
USB Certification Under Planning Under Planning
Number of Positions (plug) 24 positions
Rated Voltage AC 20V r.m.s.
Contact Resistance Initial: 40mΩ or less
Dielectric Withstanding Voltage AC 40V r.m.s. (for 1 minute)
Insulation Resistance 10MΩ or greater
Operating Temperature Range -20°C to +50 °C
Durability 10,000 cycles

DX07 Series (PLUG) (For more details) >

DX07 Series image


Information and details given here are as of the date of publication. Please note that the details may be changed.
