Waterproof Connector for Automotive MX23A Series

MX23A Series Increasingly Used in Motorcycles

The MX23A series is a compact, low-profile, waterproof connector that is widely used in electronic control units (ECUs) and automotive-related equipment in automobiles, motorcycles, and other vehicle- related applications. The MX23A series come with the following features:

Compact, low-profile design:
The connectors have a small, low-profile design, making them suitable for use in limited spaces within vehicles.

Environmental characteristics:
The MX23A series has excellent environmental resistance characteristics and provides reliability for harsh environmental conditions, such as in engine rooms.

Waterproof performance:
Waterproofing rings are used to seal the connectors during mating, and grommets on the back-sides are used to seal the wire termination areas.

Reverse type pin connector:
As a design that considers mounting space, a reverse-type pin header is also available, in which the locking position is upside down.

Broad Lineup of Connector Option

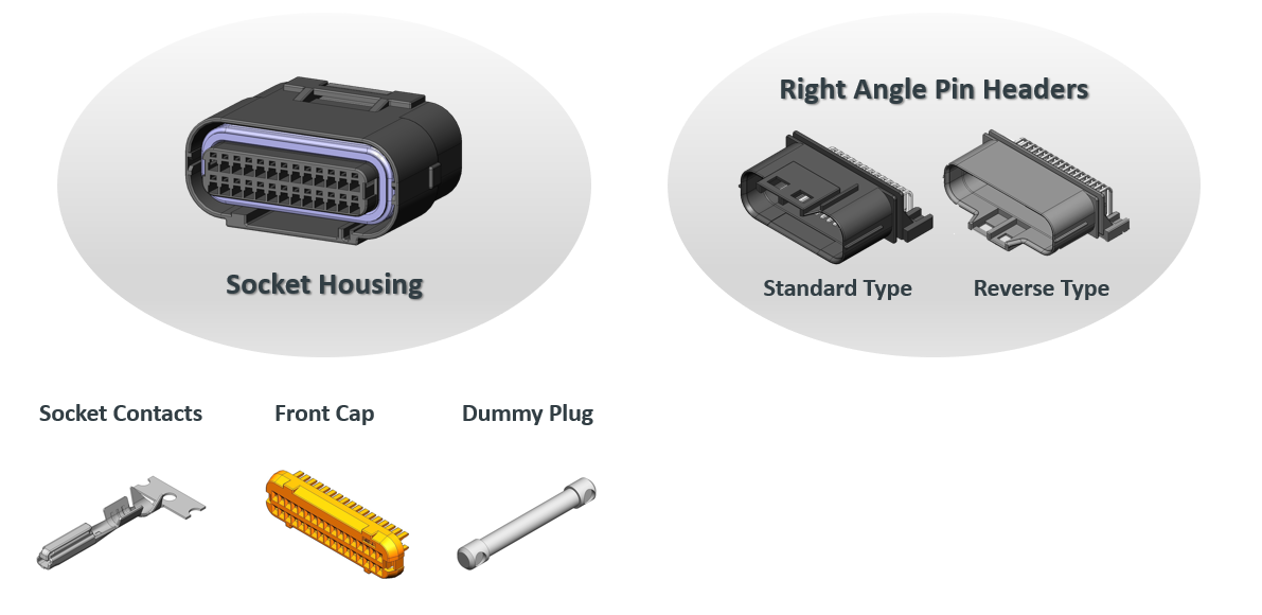

MX23A Socket Housing T and Right Angle Pin Header and Component Parts
MX23A series comes with two orientation keys to select from to prevent incorrect mating. The socket housing is also available with a front cap for terminal insertion confirmation, a dummy plug to ensure waterproofing of empty terminal cavities, and a reverse type pin header.

Example of MX23A Series

The MX23A series has excellent environmental resistance and waterproof performance, and is regularly used in a wide range of applications such as the following

ATV and Jet Ski

Tractors and snowmobiles

MX23A Series Product Information Document Download

Connector for waterproof board cable MX23A Document



Please refer to this downloadable document for MX23A series product features and product details.

Download
