Single Pair Ethernet (SPE) Connector DZ17 Series

DZ17 Series Product Specifications

The DZ17 Series, SPE connector from JAE is an IEC63171-6 standard compliant connector (non-waterproof type). With this connector Ethernet communication which conventionally required two or four pairs of wires, can now be supported with a single pair. The connector series is also compatible with IEEE 802.3cg/bw/bp Ethernet standards for data rates of 10 Mbps, 100 Mbps, and 1 Gbps. The rated current and voltage are 4A and 60VDC, respectively, with ingress protection rating of IP20. The tensile strength is 50 N minimum, and mating durability is 1,000-cycles.



Specification IEC63171-6
Transmission Speed 10 Mbps to 1 Gbps
Characteristic Impedance 100Ω
Rated Current / Rated Voltage 4A/60VDC
Innovative Design Compact and Robust
Durability 1,000 cycles
Single Pair Ethernet Connector DZ17 Series

New Development of Compact, Lightweight and Easy to Connect Products

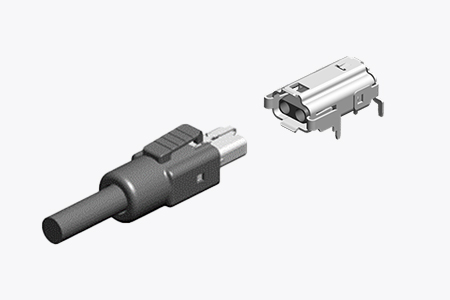

The DZ17 Series SPE connector has a compact and lightweight plug design with a tool-less IDC wire termination option for easy assembly. The product lineup includes plugs with solder or IDC termination, right-angle and straight receptacles, and relay receptacles with solder and IDC termination structures.
In the future, JAE will be promoting the connector series into factory automation (FA), building automation (BA), process automation (PA) and various relevant applications, where the need for SPE connectors will become common. The SPE connectors are also being considered for use in image transmission systems, such as network cameras, and are expected to be widely used in general through out industrial applications.

Participating in SPE Consortia in Japan and in the World

JAE participates in the SPE Industrial Partner Network (headquartered in Germany), an international consortium for SPE connectors, and is developing compatible products in commercialization of SPE connectors Major connector manufacturers and FA equipment manufacturers from around the world participate in it the SPE consortium with main target markets being in the FA fields.
In promoting corresponding activities JAE also participates in the Single Pair Ethernet Consortium (SPEC), a Japanese consortium established in March 2022, with the aim of popularizing SPE in Japan.

Participation in consortium to promote single-pair Ethernet

Back to Top

DZ17 Series Product Information Document Download

Next Generation Single Pair Ethernet DZ17 Series Documentation



Please refer to this downloadable document for DZ17 series product features and product details.
