connector usb4


USB4® Specification

USB4 Version 2.0 is the newest revision to the USB specification supporting transmission speeds of up to 80Gbps, which is 4 times that of the previous USB 3.2 revision. The idea of tunneling, which allows multiple protocols to be combined over a single interface, has also been introduced to increase flexibility. USB 3.2 data, display (DisplayPort) and load/store (PCIe) information tunneling is possible depending on the device. It also allows devices to intelligently allocate the total available bandwidth based on the requirements of the devices which are connected. The same USB Type-C form factor has been carried over to ensure backwards compatibility. However, there are new signal integrity requirements for USB4 which required the development of completely new and improved connectors and cables. For the first time, there are normative, or mandatory, signal integrity requirements for individual connectors that must be met in order to be certified for use in USB4 40Gbps devices.
As a global leader in interconnect technology, JAE was an active contributor in the USB-IF working group tasked with creating the new specifications. JAE also offers a large line up of USB Type-C connectors and cables that support various requirements such as USB Power Delivery, USB 2.0 only, and Thunderbolt™ 3. For more information on JAE’s full line up of USB Type-C connectors,   click here.

USB4 40Gbps Certified Products

Receptacle Connector

Internal design of connectors are optimized from previous USB Type-C connectors to improve Signal Integrity performance. In order to received USB4 40Gbps (Gen 3) certification, receptacle connectors must now pass normative requirements for SI, whereas in the past there was no SI testing required for USB Type-C connectors to received certification. There are both onboard and mid-mount configurations available to support various design requirements.


connector usb4


Plug Connector

Plug connectors cannot directly receive USB4 40Gbps certification. USB 3.2 Gen 2 certification is the highest performance certification possible for plugs, and can be used in USB4 40Gbps certified cable harness.
JAE's plug connector has been adopted as the Golden Plug in the official test fixture used for the USB4 receptacle certification test.
A new plug connector with improved SI performance and a deep drawn shell has been developed for use in cable harnesses.


JAE's plug connector has been adopted as the Golden Plug in the official test fixture used for the USB4 receptacle certification tests.

connector usb4

USB4 Golden Plug

The only test fixture officially designated by USB Implementers Forum


Cable Harness

A passive cable harness was developed and obtained USB4 40Gbps certification. Mass production timing and availability is still under consideration. Please contact us for immediate cable harness requirements.

connector usb4

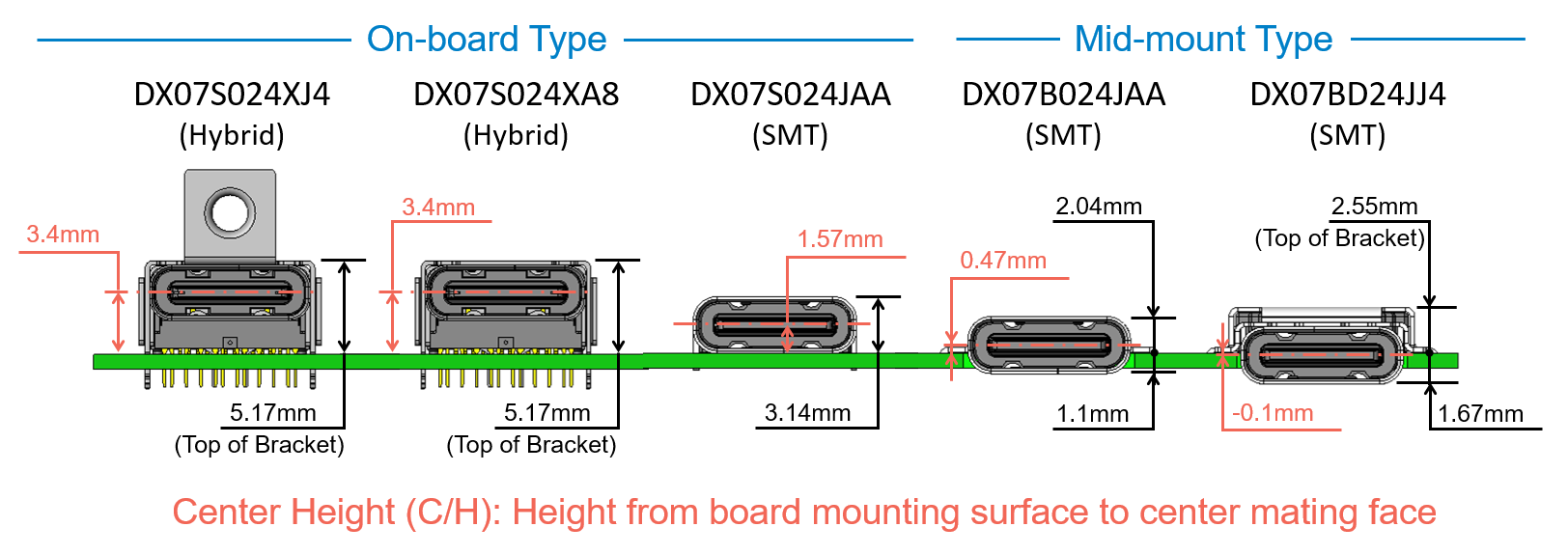

  Appearance Features Part Number TID
2D and
C/H 3.4mm
Hybrid Contact
DX07S024XJ4 7420
C/H 3.4mm
Hybrid Contact
DX07S024XA8 8315
C/H 1.57mm
2-row SMT
Thunderbolt 4 Certified
DX07S024JAA 4729
C/H 0.47mm
2-row SMT
Thunderbolt 4 Certified
DX07B024JAA 5067
C/H -0.1mm
2-row SMT
DX07BD24JJ4 5362
For cable harness
22 position
Deep drawn shell
DX07P022FA1 4025
Passive Cable 80cm Length
SPR Compatible
Passive Cable 100cm Length
EPR Compatible

White Paper “USB Type-C Connector Solutions” Download

connector solutions for small device


White Paper Download
Download our white paper “USB Type-C Connector Solution” (PDF) by filling out the form.


By submitting this form you agree to our Privacy Policy.
Personal Information registered with us may be used to send free information from JAE to you.

Subject to change without notice. Errors and omission excepted.

※ USB4®, USB Type-C® and USB-C® are trademarks of the USB Implementers Forum.
※ Thunderbolt™ is a trademark of Intel Corporation.
