2023/12/28

Connector Solutions for Small Devices



Connector Solutions for Space Saving in Small Devices

As modern computing devices continue to become more portable for ease of use and convenience, they are simultaneously incorporating more advanced functions and features. These new additions, such as 5G wireless communication and multiple sensors for collecting information, require more components to be housed in what are very compact devices.Based on these trends, JAE has introduced connector solutions that save space while adding new connector features and capabilities.

Typical Connector Usage Examples for Small Devices

Below are examples of common connector usage in small devices.Modern small devices have a limited amount of space inside, so it is important to keep components as small as possible. Depending on the mounting location, the connector footprint and height are essential to allow engineers the ability to stay within their desired package size. The connectors provided by JAE meet these requirements for size reduction while maintaining high reliability and ease of handling.

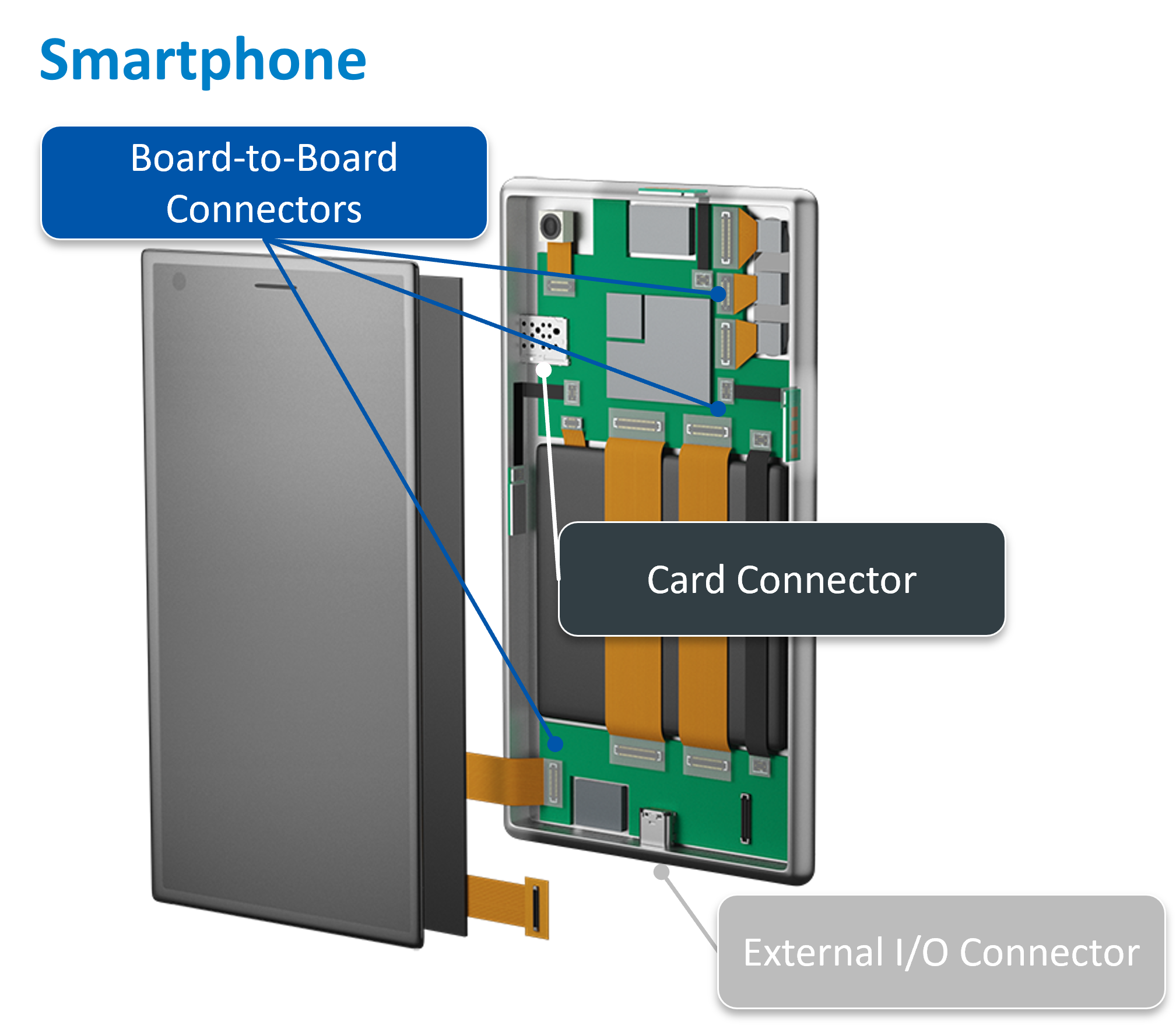

Example of smartphone connector use

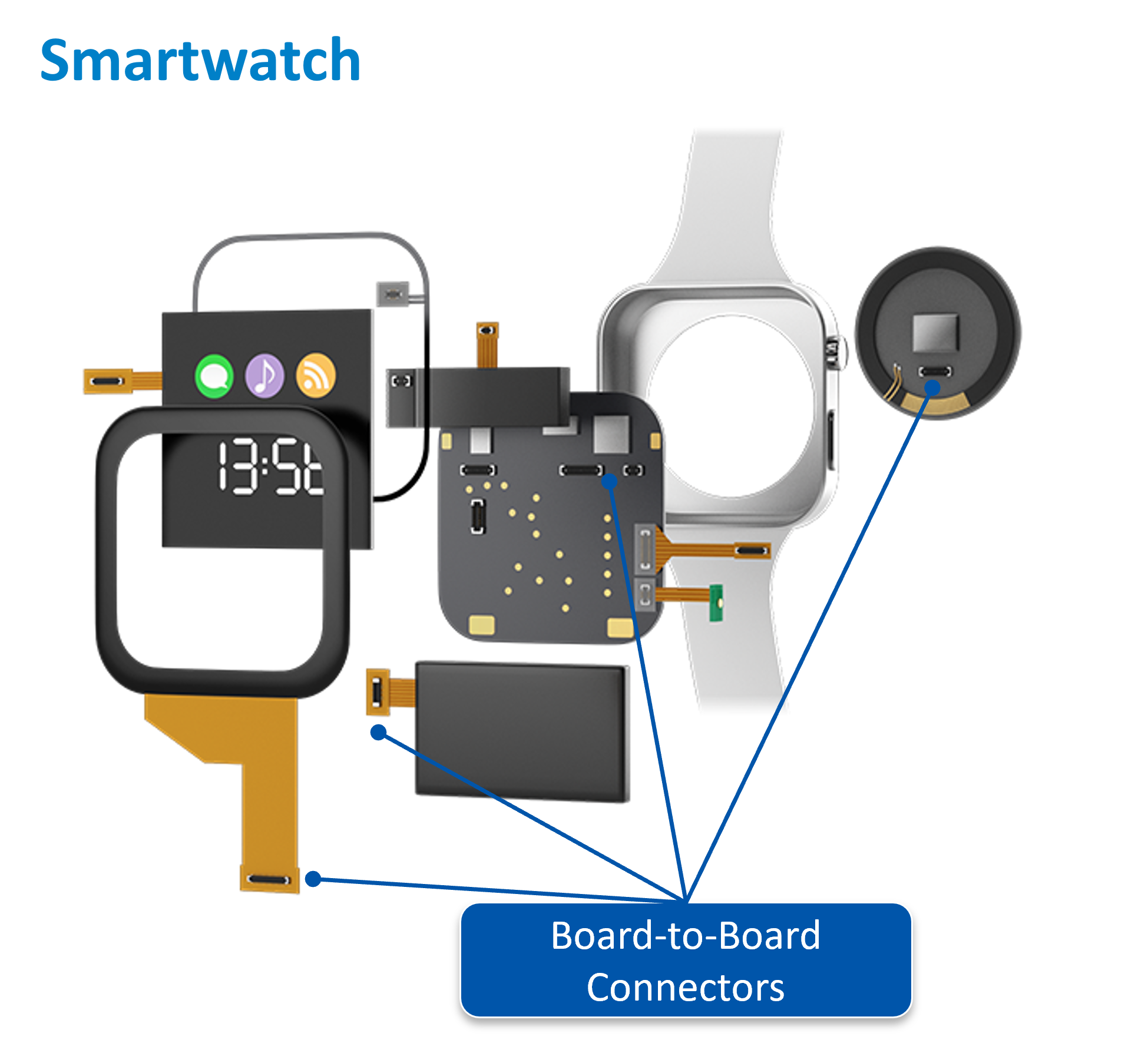

Example of smartwatch connector use

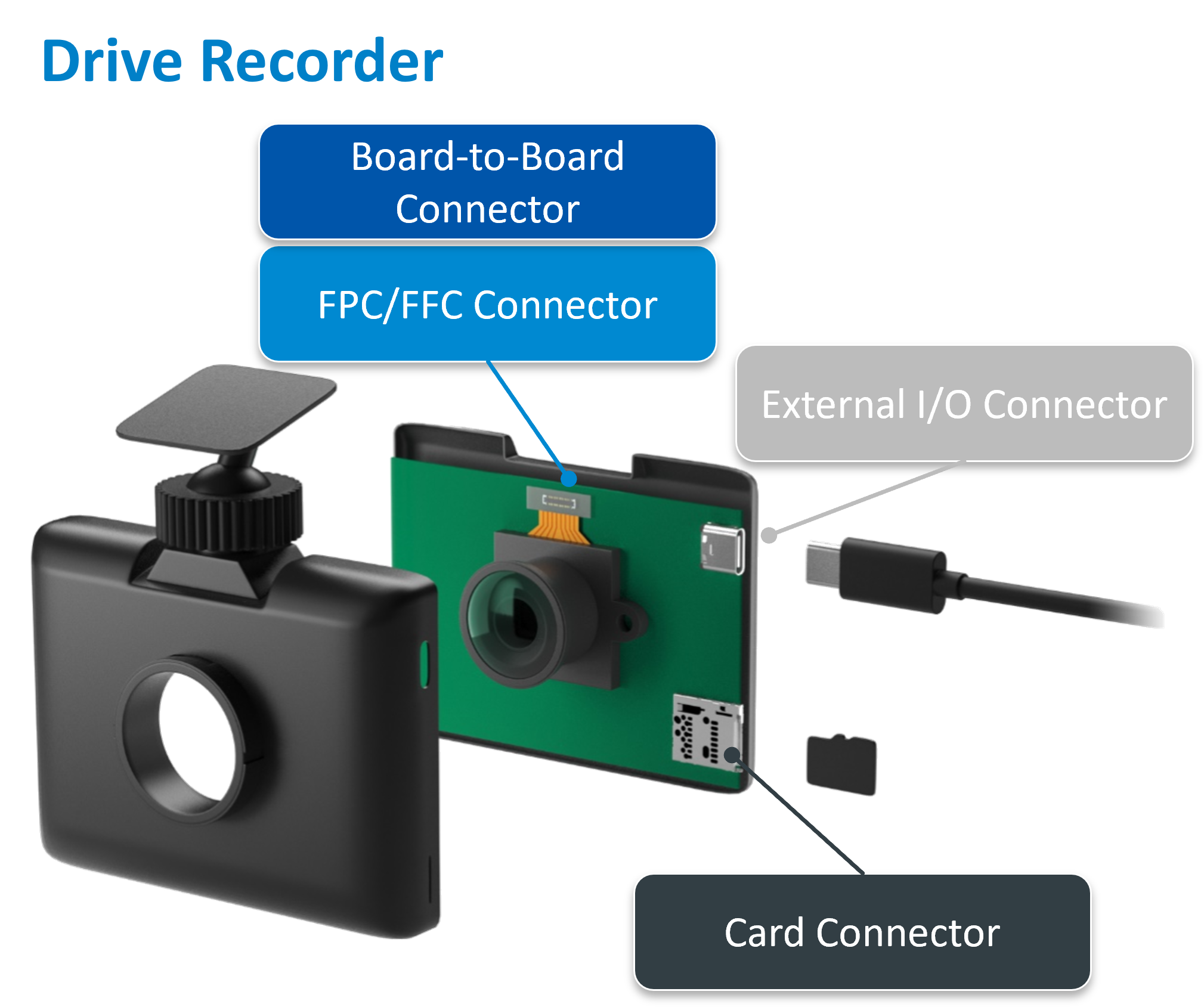

Example of drive recorder connector use

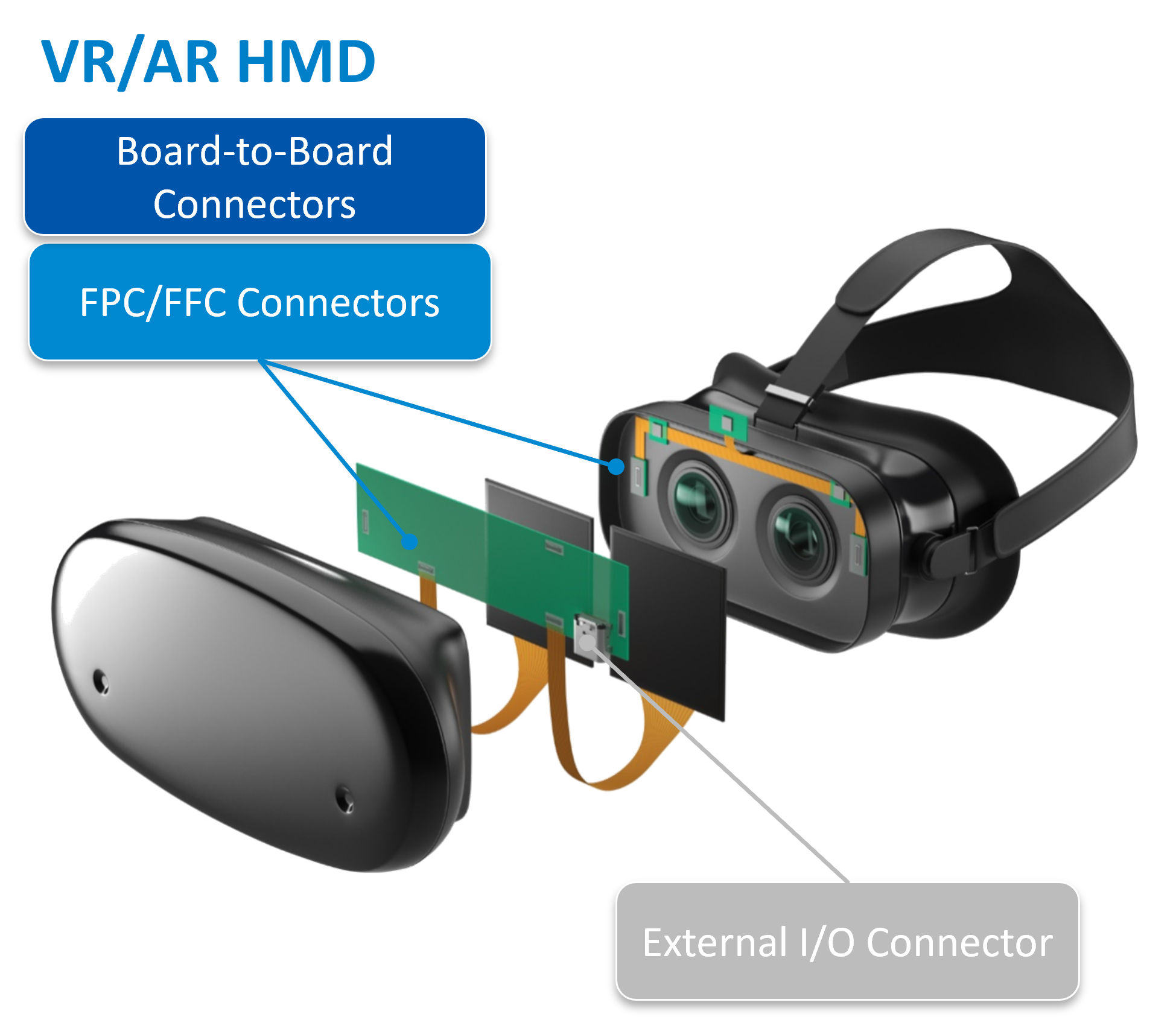

VR/AR head-mounted display connector use case

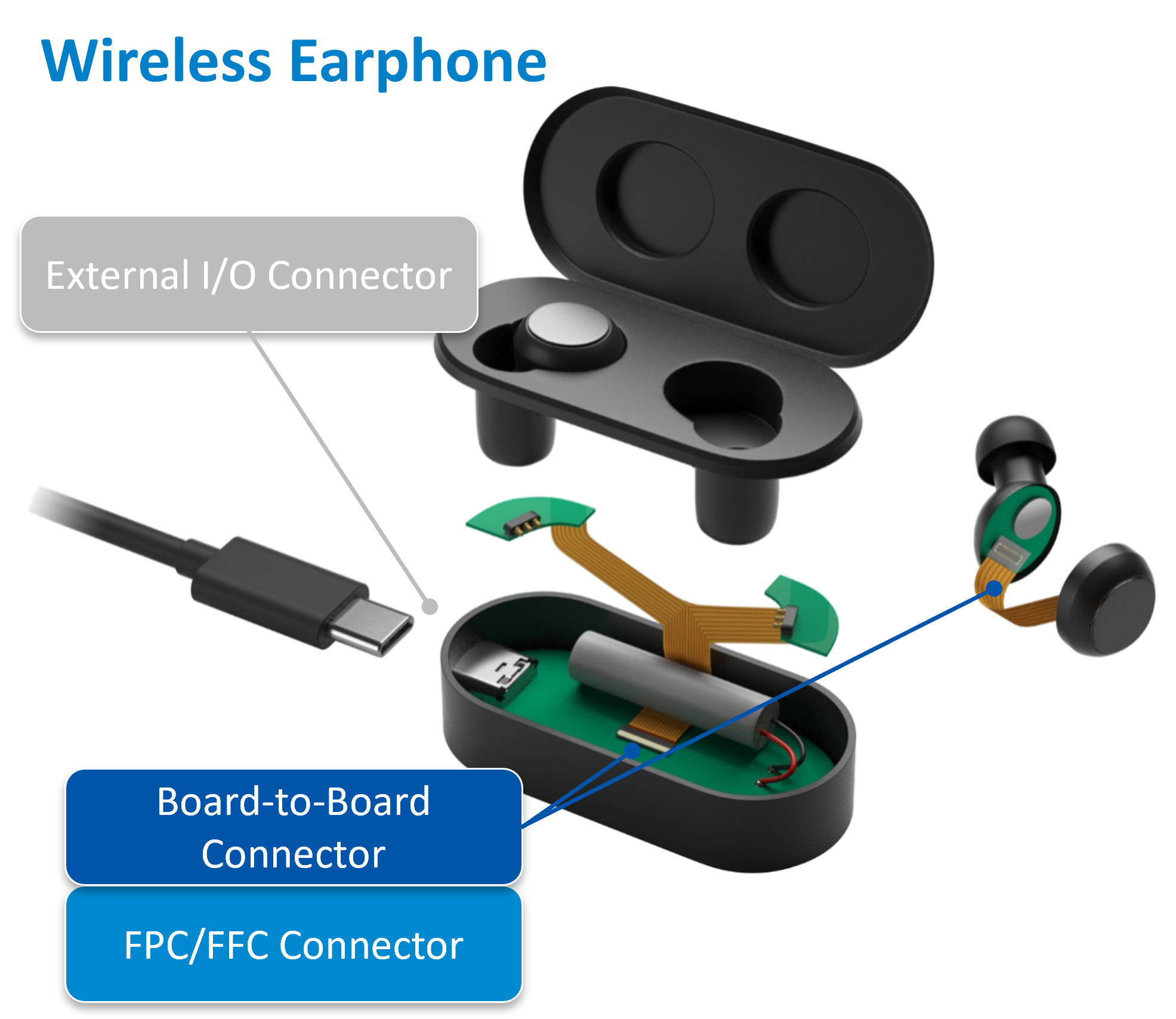

Example of wireless earphone connector use

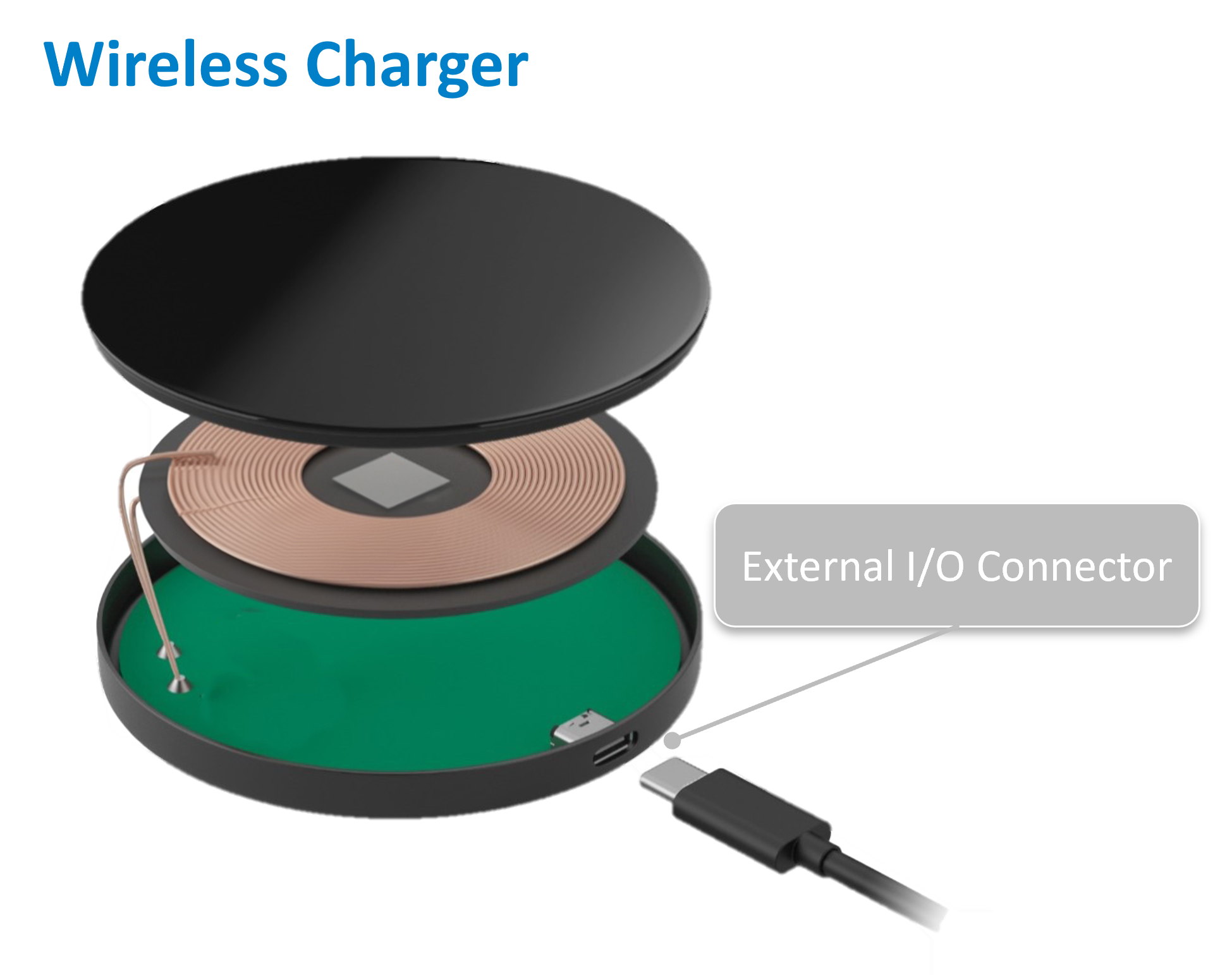

Example of wireless charger connector use

Catalog Download
For Small Devices

Connector Line-up for Small Devices

JAE offers a wide variety of connectors ideally suited for small devices.The entire manufacturing process for these connectors, are performed in-house, including the molding, stamping, plating, assembly, inspection, and packaging processes. It is critical that these processes are closely controlled in-house in order to achieve stable quality and connector specific manufacturing innovation.We are able to deliver extremely high volume production while maintaining high-quality by using advanced automated equipment for connector assembly, video inspection, and embossed tape and reel packaging.

Connectors for External Interfaces

As a leading connector manufacturer, JAE was a contributing member of the working group which created the USB Type-C™ connector standards. We have a wide variety of connector and cable options that meet all of the requirements in the USB Specifications.

*Click on a external shape to view a detailed catalog.

Applicable
Standard
Type Series Appearance Features
USB Type-C
USB 3.2
Thunderbolt™3*
USB 2.0
USB4
Receptacle DX07
DX07 Receptacle  image
Wide variety of options including mounting height, SMT or hybrid contact termination, and waterproof.
Vertical
Docking Plug
DX07 plug board image
Ideal plug design to allow docking of portable devices for data transfer and charging. Lock spring is removed to ensure easy undocking.
Edge Mount Plug
(For harness)
DX07 plug cable connection image
Low profile plug body design to allow for smaller cable hood. Shell seam is welded to increase strength.
Harness

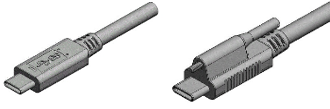

DX07 Harness image
Complete harness assembly solution supporting high speed transmission as well as fast charging. Ultimate reliability and quality to ensure maximum advertised performance of connected devices.


Board-to-Board Connectors

Ideal connectors for connecting FPC cables to various subassemblies or modules. Clear click feeling and high retention force is incorporated to make the connectors easier to assemble and more reliable.

*Click on a series name or external shape to view a detailed catalog.

pitch(mm) Series Appearance Mated Height(mm) No. of Contacts Features
0.35 WP27D
WP27D image
0.7 10,24,30,
34,38,40,
50,54,60
Armor to protect insulator.
2 power contacts (3A).

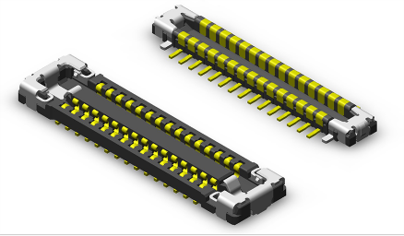

0.35 WP26DK
WP26DK image
0.6 10,16,24,
30,34,40,
48,50,60
Armor to protect insulator.
2 power contacts (3A).
0.35 WP66DK
WP66DK image
0.6 6
8
30
Ultra small footprint.
Armor to protect insulator.
2 power contacts (3A).
0.3 WP56DK
WP56DK image
0.6
26

The industry’s narrowest terminal pitch.
Armor to protect insulator.
2 power contacts (3A).

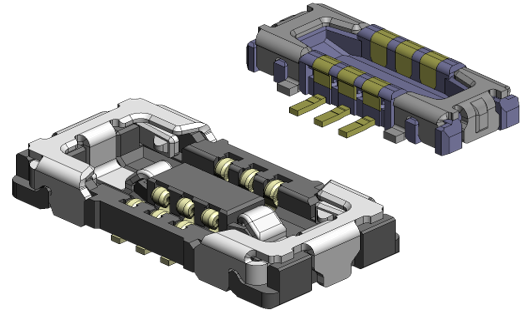

0.3 WP55DK
WP55DK external shape image
0.5 6
8
10
22
Includes hold-downs for two power supplies
Armor to protect insulator.
2 power contacts (3A).
0.25 WP86SD

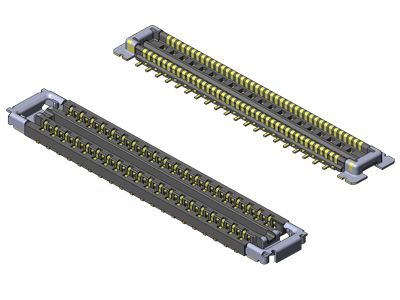

WP86SD image
0.6 80 Contact Pitch: 0.25mm, 4-row (Quad-Low)
With hold-downs for power supply for high current (8A)
With armor to prevent damage when mated

The WP10 Series, the smallest class high-current connector for battery connection, and the WP16RS Series, a high-frequency transmission enabled with fully shielded board-to-board (FPC) connector "Wave-stack™" suitable for relaying 5G millimeter wave antenna modules equipped in mobile devices such as smartphones.

*Click on a series name or external shape to view a detailed catalog.

pitch(mm) Series Appearance Mated Height(mm) No. of Contacts Features
0.4 WP10
WP10 image
0.7 Signal : 2,4
Power: 4
High current connector suitable for battery connection
2 types are available;
(1) Capable to transmit 10A power supply via power terminal
(2) Capable to transmit 12A power supply via power terminal plus hold-downs
0.35 WP16RS
Wave-stack WP16RS image
0.6 Signal : 6
RF: 2
Fully shielded connector with dedicated high performance RF contacts supporting 15GHz+.

FPC/FFC Connectors

0.2mm and 0.5mm pitch products are available with a low height of less than 1mm.he depth is also minimized to save space.

*Click on a series name or external shape to view a detailed catalog.

FPC
Connection
Pitch
(mm)
Series Appearance Dimension (mm) No. of Contacts Features
Height Depth Width Applicable
FPC Thickness
Upper and Lower
Contacts
0.5 FA10
FA10 image
0.9 3.2 0.5(n-1)+2.0 0.2 4
5
6
10
Automatic locking mechanism to reduce errors during FPC insertion.
0.2 FR02
FR02 image
0.82 2.96 0.2(n-1)+1.3 0.2 23
41
51
61
High strength actuator for easy operation. Tapered mating face for easy FPC alignment.

Card Connectors

Push-push and push-eject tray items are available for nano SIM and microSD cards. All designs take into consideration ease of use for the end user operating the connector.

*Click on a series name or external shape to view a detailed catalog.

Card Card Ejection Type Series Appearance Dimension (mm) Area
(mm²)
Volume
(mm³)
Features
Width Depth Height
nano SIM Push-Push SF72
SF72 image
11.20 14.35 1.25 161 201 Low profile height.
Card eject length of 3.9mm.

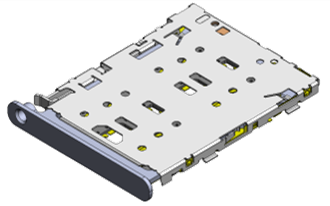

Push-Eject Tray SF78
SF78 image
17.15 21.4 1.30 367 477 2 nano SIM cards can be installed in a single connector.
nano SIM
&
microSD
Push-Eject Tray ST19

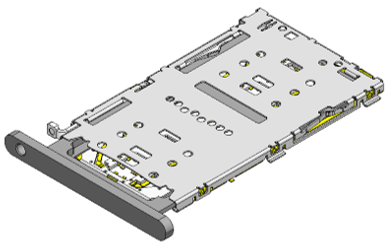

ST19 image
17.49 28.15 1.30 490 637 Either 2 nano SIM cards, or 1 nano SIM card and 1 microSD card can be installed in a single connector.
microSD Push-Push ST50
ST50 image
13.7 16.3 1.35 223 301 Compatible with conventional micorSD cards and UHS-II compatible microSD cards

Download Connector Catalog

Catalog of Connectors for Compact Terminals



Download Our Connector Selection Guide for Small Devices(PDF)
