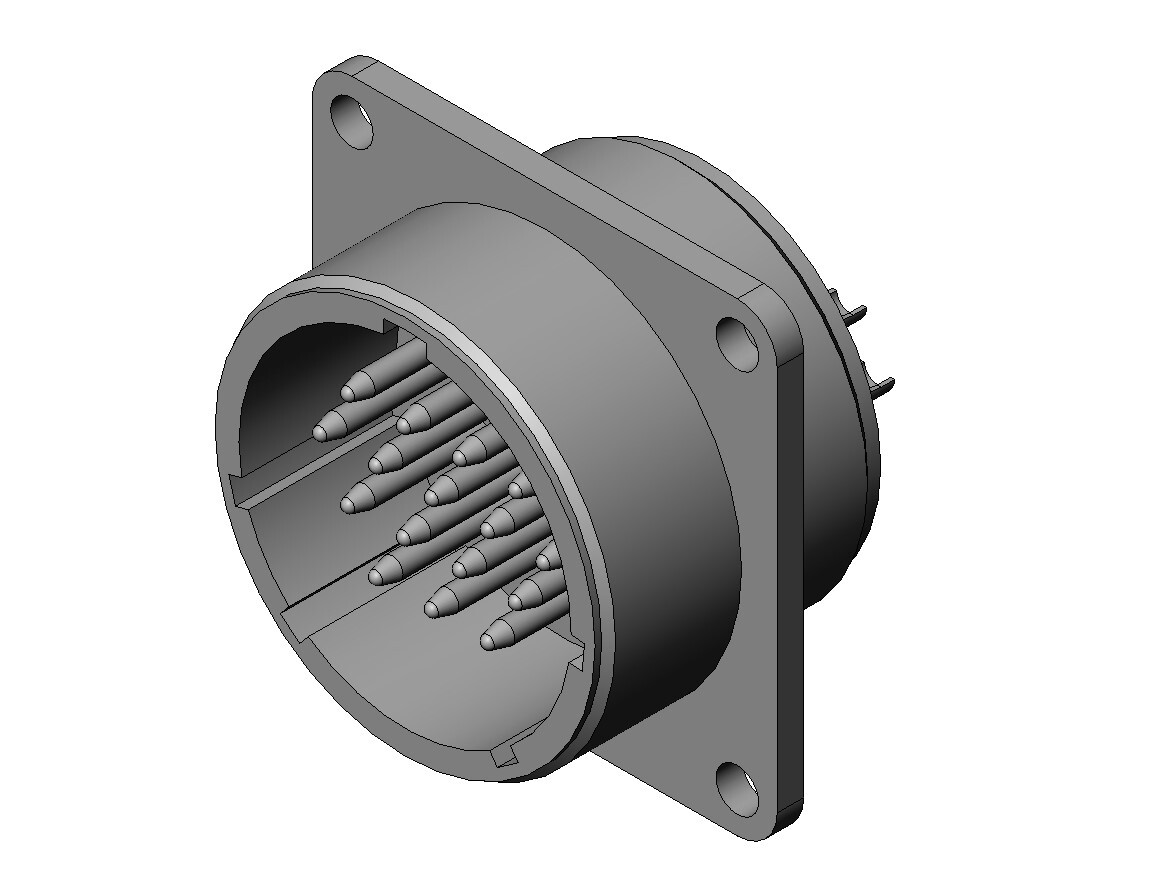

SRCN2A25-16P

製品詳細


主な特長

JIS C 5432規格準拠 UL規格認定品 パネル対ケーブル/ ケーブル中継接続用 はんだ付け結線式、16 極、パネル取付レセプタクル

品目 SRCN2A25-16P
Status 現行品
極数 16 極
定格電流 (A) 10 A
定格電圧 (V)
防水/非防水 非防水
用途 放送・音響機器、通信機器、コンピュータ及び関連機器、計測機器、OA機器、工作機器、FA機器、自動販売機、電子娯楽機器、その他各種電子・電気機器
コネクタタイプ レセプタクル
コネクタ形状 パネル取付
コンタクトタイプ ピン
結線方法 はんだ付け
適用電線サイズ (AWG) #16 以下
結合方式 ねじ
コンタクトサイズ #16
シェルサイズ 25
コンタクト配列記号 25 - 16
コンタクト構成 (コンタクトサイズ*極数) #16*16
適合電線導体断面積 1.25 以下
適用電線被覆外径 (mm)
インサート回転位置 (度) 0
コンタクト材料
コンタクト接触部仕上 銀めっき
シェル色相 ニッケルめっき
電流総容量 (A)
接触抵抗 (mΩ) 5 以下
耐電圧 (VACr.m.s. 1分間) 1000
絶縁抵抗 (MΩ以上) 1000以上
繰返し挿抜回数 (回)
使用温度範囲 (℃) -25 to +85
適合コンタクト
適合ハウジング
適用アクセサリ
取付コネクタ
適用ケーブル径
RoHS compliant 10 substances (2011/65/EU, (EU)2015/863)
REACH compliant
組合せ SRCN6A25-16S
特記事項
