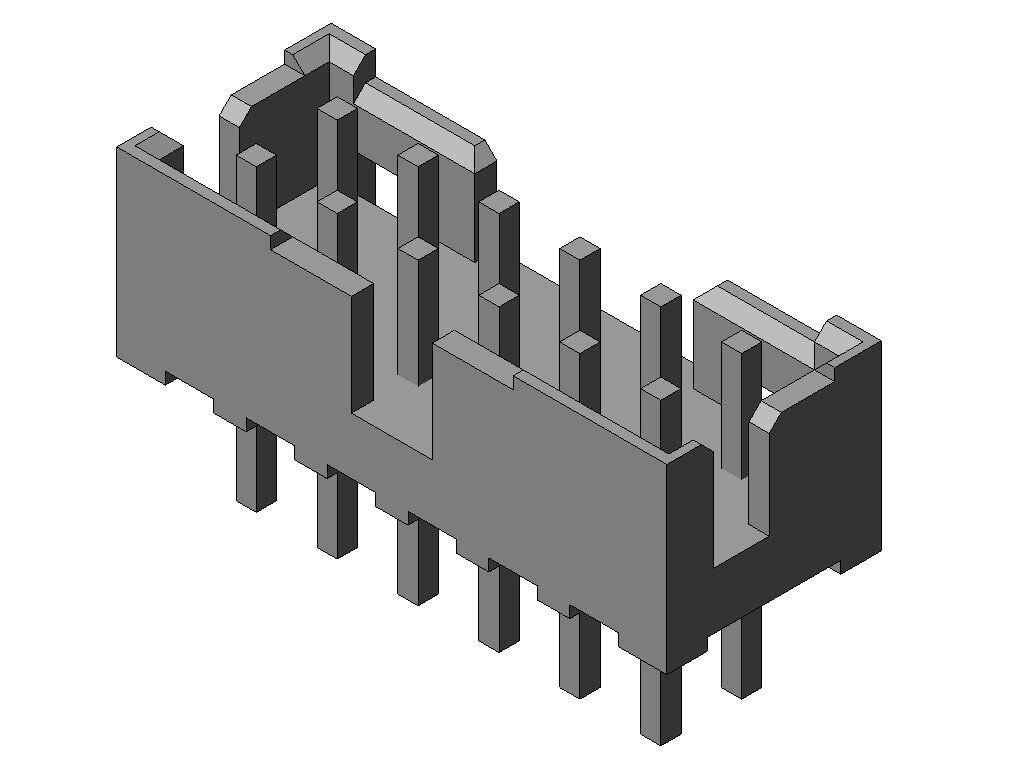

LY20-12P-DT1-P1E-BR

製品詳細


主な特長

12 極、ストレートピンヘッダ、コンタクト接触部仕上 : 金めっき

品目 LY20-12P-DT1-P1E-BR
Status 現行品
極数 12 極
コンタクトピッチ (mm) 2.0 mm グリッド
定格電流 (A) 3 A
コネクタタイプ ピンヘッダ
コネクタ形状 ストレート
コンタクトタイプ -
結線方法 -
適用電線サイズ (AWG) -
基板実装方法 はんだ付け (スルーホール)
列数 2 列
推奨基板厚 (mm) 1.6 mm
適用電線被覆外径 (mm) -
コンタクト材料 銅合金
コンタクト接触部仕上 ニッケル上金めっき
コンタクト基板実装部仕上 ニッケル上錫または錫合金めっき
コンタクト結線部仕上 -
インシュレータ材料 ガラス入り66ナイロン(UL94V-0)
インシュレータ色
コンタクト接触部めっき厚 (μm) 0.1 μm
RoHS compliant 10 substances (2011/65/EU, (EU)2015/863)
REACH compliant 240 substances (23/01/2024)
